Service Manual2006 Captiva TRANSMISSION / TRANSAXLE / TRANSFER CASE (AISIN AUTO TRANSAXLE : 55-51LE)

SECTION 5A3

TRANSMISSION / TRANSAXLE / TRANSFER CASE (AISIN AUTO TRANSAXLE : 55-51LE)

AISIN AUTO T/A : 55-51LE - AUTOMATIC TRANSAXLE (531)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	TORQUE CONVERTER - REPLACE	5310100	4.3	4.3
1	A - With Transfer Case	531010A	0.6	0.6
2	BOLTS, TORQUE CONVERTER TO FLYWHEEL - REPLACE	.	.	.
	DOHC(2.4)	5310200	0.8	0.8
	DOHC(3.2)	5310210	0.8	0.8
	2.0 DSL	5310220	0.4	0.4
	A - With Transfer Case	.	.	.
	DOHC(2.4)	531020A	0.6	0.6
	DOHC(3.2)	531021A	—	—
	2.0 DSL	531022A	—	—
3	AUTO TRANSAXLE ASSEMBLY - REPLACE	5310300	4.3	4.3
	A - With Transfer Case	531030A	0.6	0.6
	AUTO TRANSAXLE ASSEMBLY - OVERHAUL	5310400	8.8	8.8
	INC : Assembly replacement	.	.	.
	A - With Transfer Case	531040A	0.6	0.6
4	STICK, OIL GAUGE - REPLACE	5310600	0.2	0.2

AISIN AUTO T/A : 55-51LE - CASE & RELATED PARTS (532)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	SENSOR, INPUT SHAFT SPEED (ISS) - REPLACE	5320100	0.3	0.3
2	SENSOR, OUTPUT SHAFT SPEED(OSS) - REPLACE	5320200	0.3	0.3
3	SENSOR, TRANSMISSION FLUID TEMPERATURE(TFTS) - REPLACE	5320400	1.2	1.2
4	SWITCH, PARK/NEUTRAL POSITION (PNP) - REPLACE	5320500	0.5	0.5
5	HARNESS, TRANSAXLE WIRING - REPLACE	5320600	1.2	1.2
6	HOUSING, TRANSAXLE - REPLACE	5320700	6.8	6.8
6	A - With Transfer Case	532070A	0.6	0.6
7	HOUSING, TORQUE CONVERTER - REPLACE	5320800	4.8	4.8
7	A - With Transfer Case	532080A	0.6	0.6
8	TUBE, DIFFERENTIAL BEARING LUBE APPLY - REPLACE	5320900	5.0	5.0
8	A - With Transfer Case	532090A	0.6	0.6
9	PLATE, TRANSAXLE HOUSING OIL RESERVOIR - REPLACE	5321100	5.0	5.0
9	A - With Transfer Case	532110A	0.6	0.6
10	TUBE, LUBRICATION APPLY - REPLACE	.	.	.
	C-3	5321400	4.6	4.6
	Lubrication	5321500	4.6	4.6
	A - With Transfer Case	.	.	.
	C-3	532140A	0.6	0.6
	Lubrication	532150A	0.6	0.6
11	FILTER, TRANSAXLE OIL - REPLACE	5321600	4.8	4.8
11	A - With Transfer Case	532160A	0.6	0.6
12	REAR CASE, TRANSAXLE - REPLACE	5321800	4.9	4.9
12	A - With Transfer Case	532180A	0.6	0.6

AISIN AUTO T/A : 55-51LE - CASE & RELATED PARTS (532)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
13	SEAL, DRIVE AXLE FLUID - REPLACE	.	.	.
	Right	5321900	1.0	1.0
	Left	5322100	1.0	1.0
	Both	5322200	1.6	1.6
14	PARKING SYSTEM - REPLACE	5322300	5.6	5.6
14	A - With Transfer Case	532230A	0.6	0.6
15	COVER, T/A SIDE - REPLACE	5322400	0.6	0.6
16	HOSE BREATHER - REPLACE	5322500	0.2	0.2
17	PISTONS, ACCUMULATOR - REPLACE	5322600	4.6	4.6
17	A - With Transfer Case	532260A	0.6	0.6
18	RACE, TAPER ROLLER BRARING, OTR - REPLACE	5322900	5.1	5.1
18	A - With Transfer Case	532290A	0.6	0.6
19	TUBE, BRAKE APPLY - REPLACE	5323000	4.6	4.6
19	A - With Transfer Case	532300A	0.6	0.6
20	SEAL RING, REAR CASE - REPLACE	5323100	4.9	4.9
20	A - With Transfer Case	532310A	0.6	0.6
21	PISTON, B-5 BRAKE - REPLACE	5323200	5.0	5.0
21	A - With Transfer Case	532320A	0.6	0.6
22	PLATE AND/OR DISC, B-5 BRAKE - REPLACE	5323300	5.0	5.0
22	A - With Transfer Case	532330A	0.6	0.6

AISIN AUTO T/A : 55-51LE - INTERNAL POWER TRAIN PARTS (533)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	OIL PUMP - REPLACE	5330100	4.9	4.9
1	A - With Transfer Case	533010A	0.6	0.6
2	CLUTCH ASSEMBLY, SECOND BRAKE - REPLACE	5330200	4.7	4.7
2	A - With Transfer Case	533020A	0.6	0.6
3	CLUTCH ASSEMBLY, SECOND COAST BRAKE - REPLACE	5330300	4.7	4.7
3	A - With Transfer Case	533030A	0.6	0.6
4	RACE, CLUTCH, INNER - REPLACE	5330400	4.5	4.5
4	A - With Transfer Case	533040A	0.6	0.6
5	ONE-WAY CLUTCH, NO, 1 - REPLACE	5330500	4.5	4.5
5	A - With Transfer Case	533050A	0.6	0.6
6	RACE, CLUTCH, OUTER - REPLACE	5330600	4.5	4.5
6	A - With Transfer Case	533060A	0.6	0.6
7	CLUTCH ASSEMBLY, FORWARD - REPLACE	5330700	4.8	4.8
7	A - With Transfer Case	533070A	0.6	0.6
8	CLUTCH ASSEMBLY, DIRECT - REPLACE	5330800	4.6	4.6
8	A - With Transfer Case	533080A	0.6	0.6

AISIN AUTO T/A : 55-51LE - GEAR ASSEMBLY (534)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	GEAR ASSEMBLY, PLANETARY - REPLACE	5340100	4.6	4.6
1	A - With Transfer Case	534010A	0.6	0.6
2	GEAR ASSEMBLY, REAR PLANETARY RING - REPLACE	5340200	4.6	4.6
2	A - With Transfer Case	534020A	0.6	0.6
3	GEAR ASSEMBLY, PLANETARY SUN - REPLACE	5340300	4.6	4.6
3	A - With Transfer Case	534030A	0.6	0.6
4	CLUTCH ASSEMBLY, LOW/REVERSE BRAKE - REPLACE	5340400	4.9	4.9
4	A - With Transfer Case	534040A	0.6	0.6
5	ONE-WAY CLUTCH, NO.2 - REPLACE	5340500	4.9	4.9
5	A - With Transfer Case	534050A	0.6	0.6
6	GEAR ASSEMBLY, FRONT PLANETARY RING - REPLACE	5340600	4.9	4.9
6	A - With Transfer Case	534060A	0.6	0.6
7	CLUTCH ASSEMBLY, UNDERDRIVE - REPLACE	5340700	5.6	5.6
7	A - With Transfer Case	534070A	0.6	0.6
8	ONE-WAY CLUTCH, UNDERDRIVE - REPLACE	5340800	5.5	5.5
8	A - With Transfer Case	534080A	0.6	0.6
9	PISTON, UNDERDRIVE BRAKE - REPLACE	5340900	1.0	1.0
10	BAND ASSEMBLY, UNDERDRIVE BRAKE - REPLACE	5341100	5.4	5.4
10	A - With Transfer Case	534110A	0.6	0.6
11	GEAR ASSEMBLY, COUNTER DRIVE - REPLACE	5341200	5.2	5.2
11	A - With Transfer Case	534120A	0.6	0.6
12	GEAR ASSEMBLY, UNDERDRIVE PLANETARY AND DIFFERENTIAL DRIVE PINION - REPLACE	5341300	5.2	5.2
12	A - With Transfer Case	534130A	0.6	0.6
13	GEAR ASSEMBLY, DIFFERENTIAL - REPLACE	5341400	4.9	4.9
13	A - With Transfer Case	534140A	0.6	0.6
14	GEAR, REAR PLANETARY SUN - REPLACE	5341500	5.2	5.2
14	A - With Transfer Case	534150A	0.6	0.6

AISIN AUTO T/A : 55-51LE - CONTROL VALVE (535)

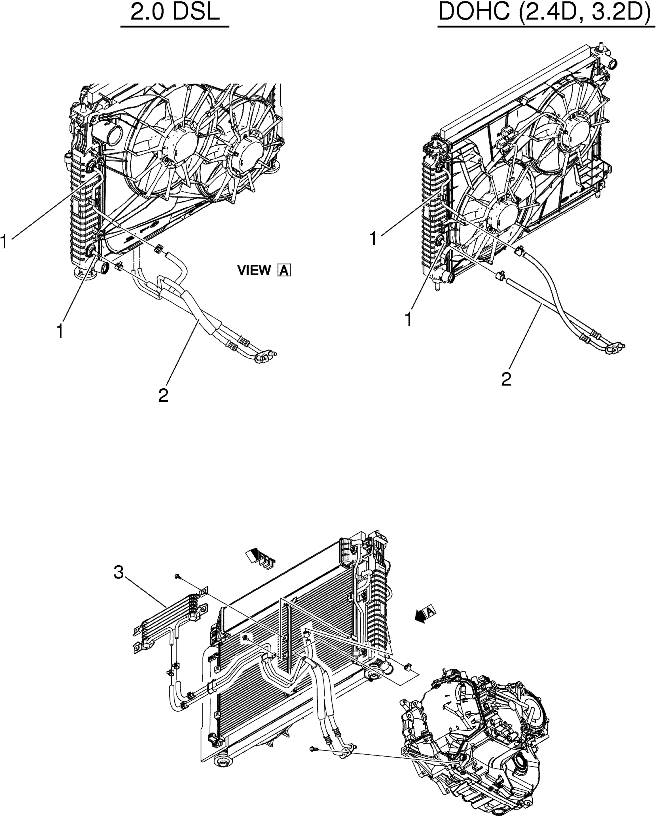

AISIN AUTO T/A : 55-51LE - FLUID COOLER PIPE (536)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	FLUID COOLER PIPE - REPLACE	.	.	.
	Inlet	5360100	0.7	0.7
	Outlet	5360200	0.7	0.7
	Both	5360300	0.9	0.9
2	FLUID COOLER PIPE AND HOSE - REPLACE	.	.	.
	DOHC(2.4 D, 3.2D)	5360400	0.8	0.8
	2.0 DSL	5360500	0.8	0.8
3	COOLER, TRANS FLUID AUXILIARY - REPLACE	5361000	1.2	1.2

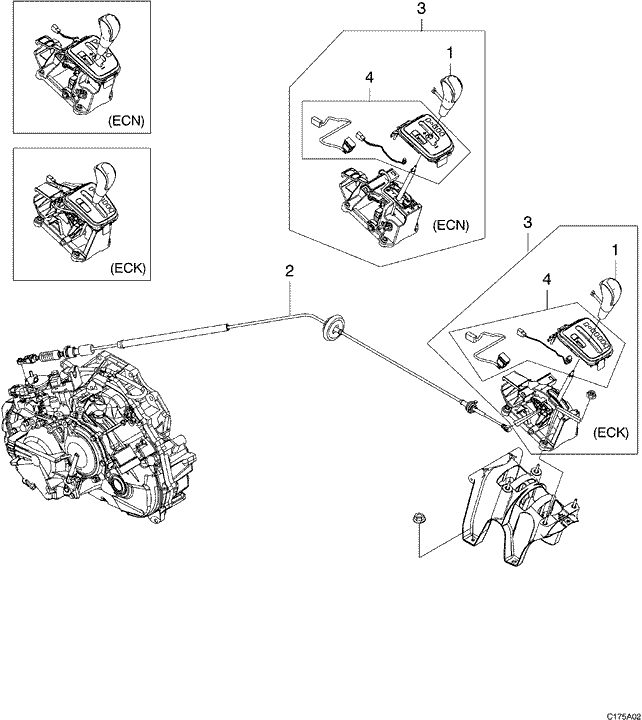

AISIN AUTO T/A : 55-51LE - AUTOMATIC TRANSAXLE CONTROLS (537)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	KNOB, SHIFT LEVER - REPLACE	5370100	0.2	0.2
2	CABLE, SHIFT CONTROL - REPLACE	5370200	0.9	0.9
3	LEVER, SHIFT CONTROL (AT TRANSMISSION) - REPLACE	5370300	0.8	0.8
4	COVER, SHIFT CONTROL - REPLACE	5370500	0.7	0.7
5	BRACKET, A/T CONTROL - REPLACE	5371100	0.8	0.8
