SECTION 4G

BRAKE (PARKING BRAKES)

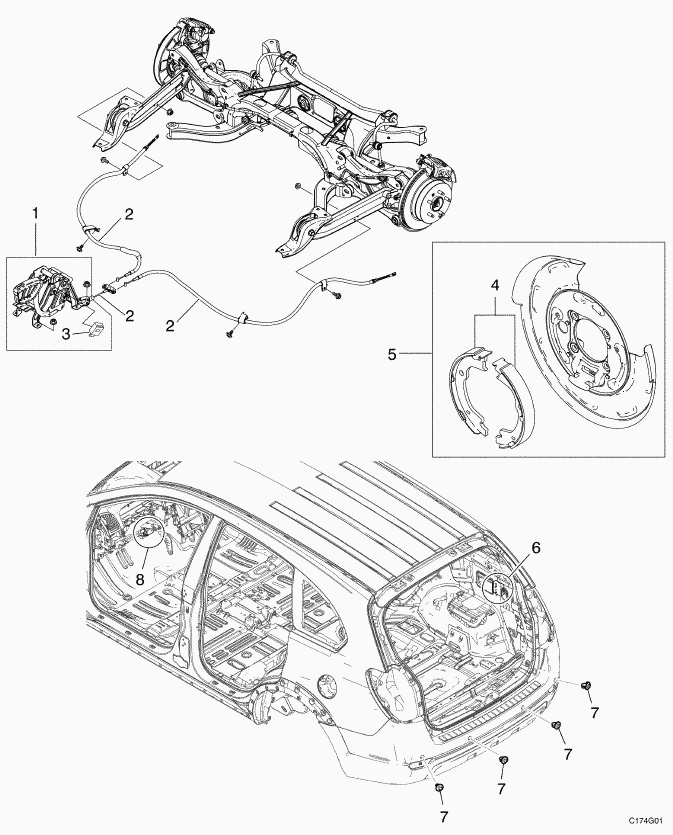

C174G01
Display graphicTranslations of text in graphics


PARKING BRAKES - PARKING BRAKE (478)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
C
.
.
. PARKING BRAKE - ADJUST
4780100
0.3
.
1
. CONTROL ASSEMBLY, PARKING BRAKE - REPLACE
4780300
0.5
.
2
. CABLE, PARKING BRAKE - REPLACE
.
.
.
Front
4780500
0.6
.
Rear, Both
4780600
0.7
.
3
. SWITCH, PARK BRAKE LAMP - REPLACE
4780800
0.3
.
4
. SHOE, PARKING BRAKE - REPLACE
4781100
0.8
.
. A - WITH RDM (REAR DRIVE MODULE)
478110A
0.1
.
5
. SHOE ASS'Y, PARKING BRAKE - REPLACE
4781300
0.6
.
. A - WITH RDM (REAR DRIVE MODULE)
478130A
0.1
.
6
. MODULE, REAR OBJECT ALARM – REPLACE
4781700
0.6
.
7
. SENSOR, REAR OBJECT – REPLACE
4781800
0.9
.
. A – REPLACE EACH ADDITIIONAL
478180A
-
.
. B – REPLACE ALL
478180B
0.1
.
8
. ALARM, REAR OBJECT – REPLACE
4781900
0.3
.
C : C-100
