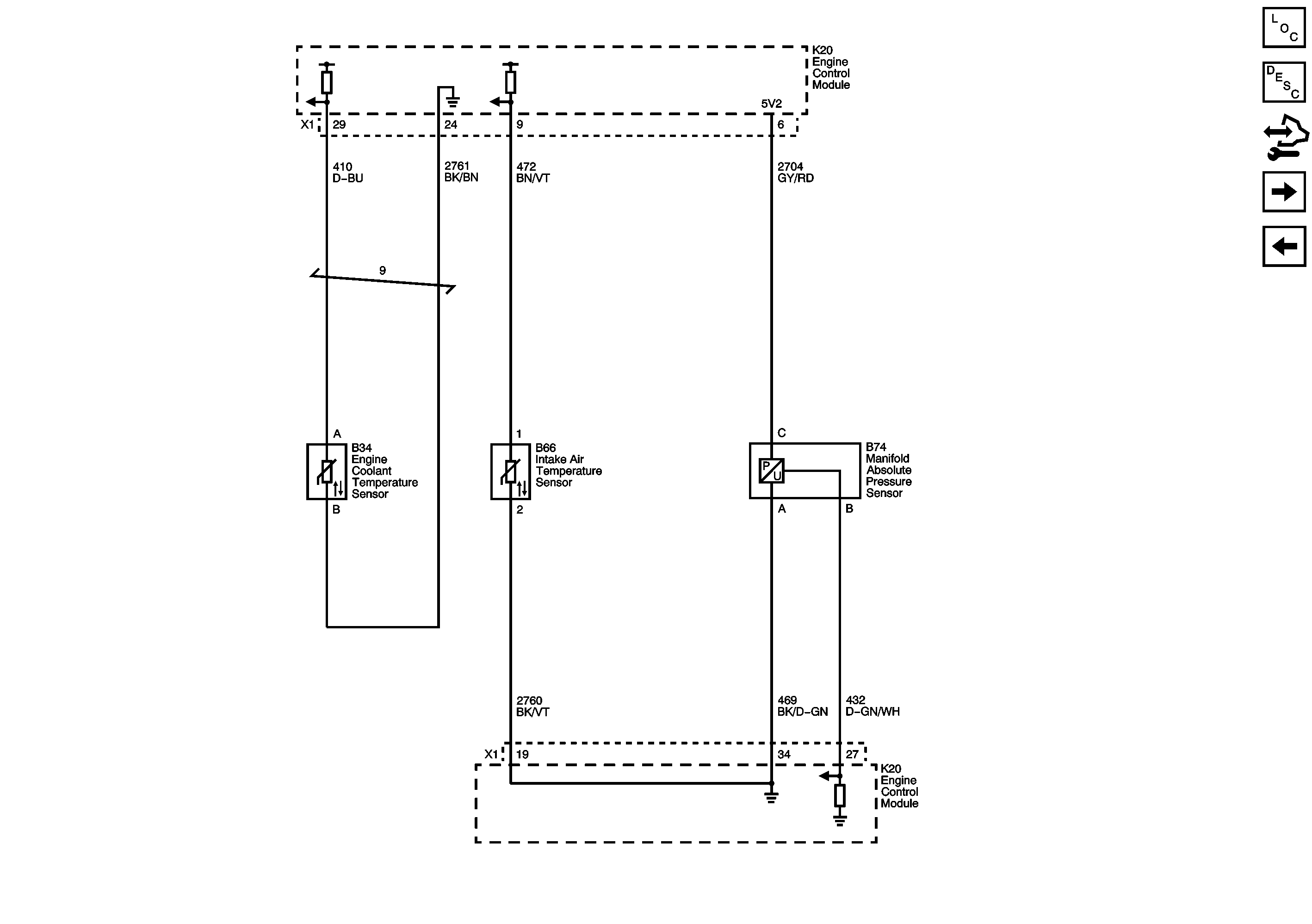

Engine Data Sensors - Pressure and Temperature

            |                         |

Display graphic

Master Electrical Component List

Engine Control Module Description

Control Module References

Engine Data Sensors - Throttle Controls

5V and Low Reference Bus (2 of 2)

Electrical Centre Identification Views

F8UA, F9UA, F10UA, and F11UA Fuses

F47UA, F59UA, and F62UA Fuses
