SECTION 7B

HVAC CONTROL

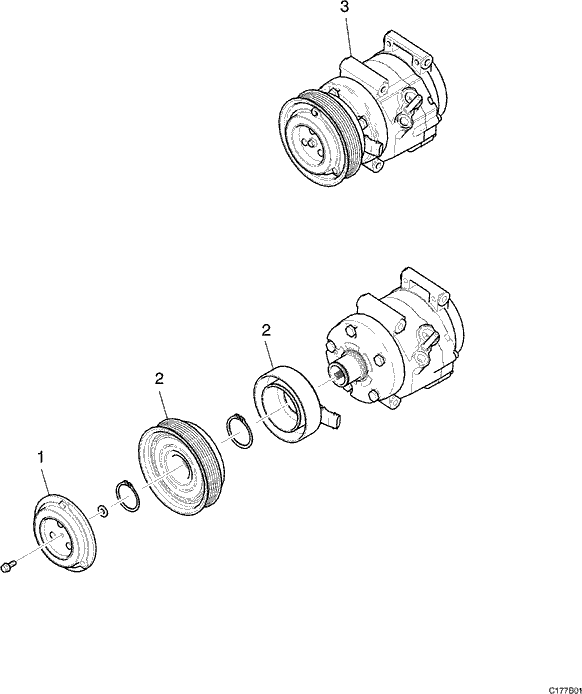

C177B01
Display graphicTranslations of text in graphics


HVAC CONTROL - COMPRESSOR (732)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
1
. CLUTCH PLATE AND HUB ASSEMBLY, COMPRESSOR - REPLACE
7320400
1.1
1.2
1.3
A - Recover/Recharge AC system
732040A
0.7
0.7
0.7
2
. COIL AND/OR PULLEY RIM, COMPRESSOR CLUTCH - REPLACE
7320800
1.5
1.6
1.7
A - Recover/Recharge AC system
732080A
0.7
0.7
0.7
3
. COMPRESSOR ASSEMBLY - REPLACE
7322100
0.9
1.0
1.1
A - Recover/Recharge AC system
732210A
0.7
0.7
0.7
C : C-100

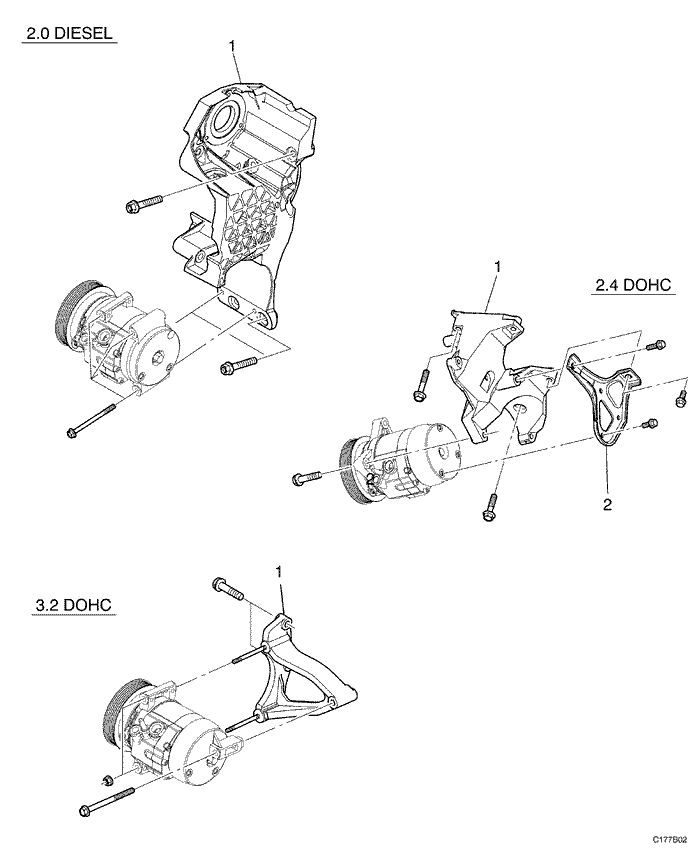

C177B02
Display graphicTranslations of text in graphics


HVAC CONTROL - COMPRESSOR MOUNT (733)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
1
. BRACKET, COMPRESSOR LOWER SUPPORT - REPLACE
7330100
2.8
1.6
1.2
2
. BRACKET, COMPRESSOR REAR - REPLACE
7330300
—
0.8
—
C : C-100

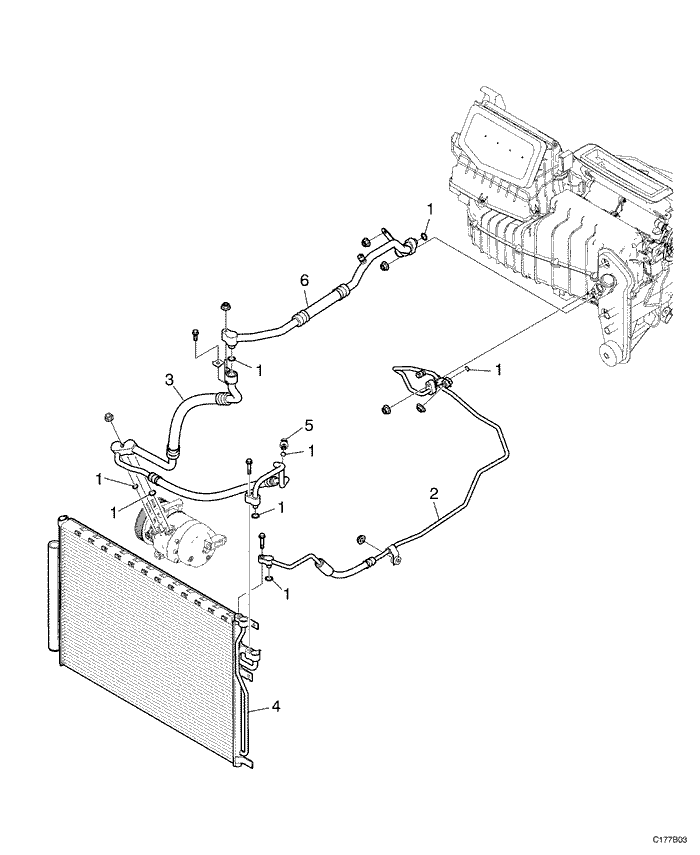

C177B03
Display graphicTranslations of text in graphics


HVAC CONTROL - A/C HOSE & PIPE LINE (734)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
1
. SEALS, COMPRESSOR MANIFOLD REFRIGERANT O-RING - REPLACE
7340300
0.2
0.2
0.2
Compressor Line
7340410
0.2
0.2
0.2
Pressure Switch
7340500
0.2
0.2
0.2
Condenser Line
7340600
0.2
0.2
0.2
Evaporator Inlet Line
7340700
0.3
0.3
0.3
Evaporator Outlet Line
7340800
0.3
0.3
0.3
A - Recover/Recharge AC system
734030A
0.7
0.7
0.7
2
. LINE, REFRIGERANT (EVAPORATOR TO CONDENSER) - REPLACE
7341200
0.6
0.6
0.6
A - Recover/Recharge AC system
734120A
0.7
0.7
0.7
3
. LINE, REFRIGERANT (COMPRESSOR SUCTION/DISCHARGE) - REPLACE
7341300
0.4
0.4
0.4
A - Recover/Recharge AC system
734130A
0.7
0.7
0.7
4
. CONDENSER - REPLACE
7341400
0.6
0.6
0.6
A - Recover/Recharge AC system
734140A
0.7
0.7
0.7
5
. TRANSDUCER, A/C PRESSURE - REPLACE
7341900
0.2
0.2
0.2
A - Recover/Recharge AC system
734190A
0.7
0.7
0.7
6
. LINE, REFRIGERANT (EVAPORATOR TO COMPRESSOR HOSE) - REPLACE
7342200
0.4
0.4
0.4
A - Recover/Recharge AC system
734220A
0.7
0.7
0.7
C : C-100

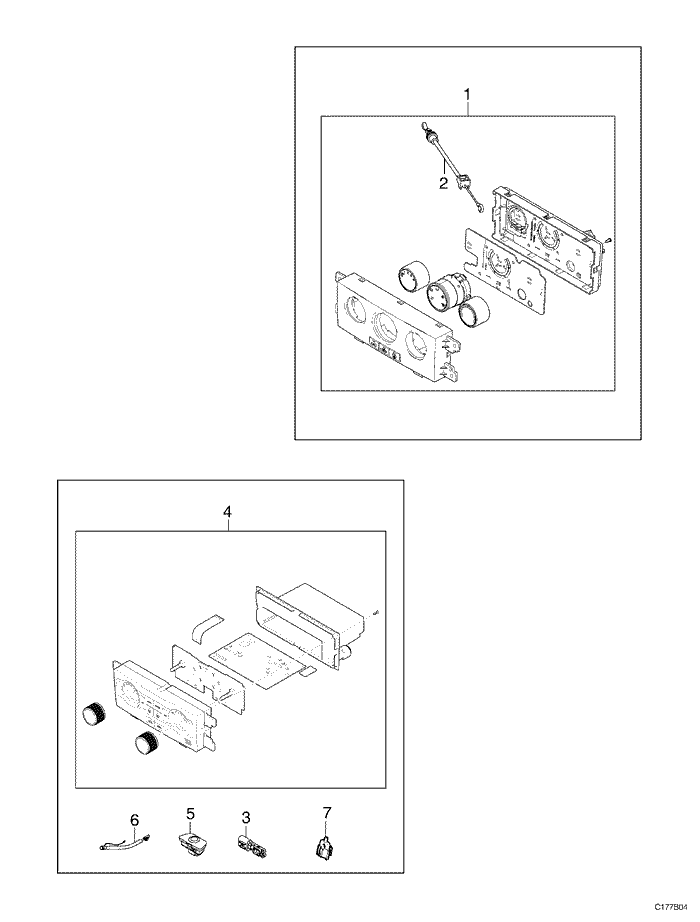

C177B04
Display graphicTranslations of text in graphics


HVAC CONTROL - A/C CONTROL SWITCH (735)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
1
. SWITCH, CONTROL ASSEMBLY - REPLACE
7350100
0.4
0.4
0.4
2
. CABLE, TEMPERATURE - REPLACE
7350500
0.6
0.6
0.6
3
. SENSOR, OUTSIDE TEMPERATURE - REPLACE
7351700
0.4
0.4
0.4
4
. SWITCH, ATC - REPLACE
7351900
0.4
0.4
0.4
5
. SENSOR, SUN - REPLACE
7352100
0.2
0.2
0.2
6
. SENSOR, INCAR - REPLACE
7352300
0.5
0.5
0.5
7
. SENSOR, ANTI POLLUTION - REPLACE
7352500
0.4
0.4
0.4
8
. DIAGNOSTIC TIME - DTC RELATED DIAGNOSIS
7352600
0.2
0.2
0.2
C : C-100
