SECTION 7A

HEATING & VENTILATION

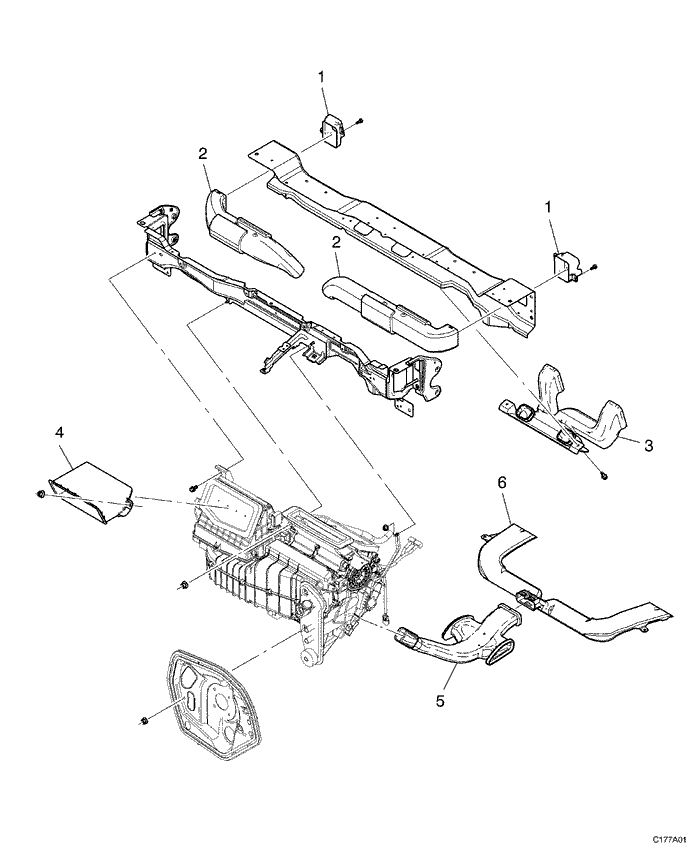

C177A01
Display graphicTranslations of text in graphics


HEATING & VENTILATION - AIR DISTRIBUTION (711)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
1
. DUCT, AIR OUTLET - REPLACE
.
.
.
.
Right
7110600
0.3
0.3
0.3
Left
7110610
0.3
0.3
0.3
Both
7110620
0.4
0.4
0.4
2
. DUCT, AIR DISTRIBUTION - REPLACE
7111300
3.6
3.6
3.6
3
. DUCT, AUXILIARY AIR OUTLET - REPLACE
7111800
2.7
2.7
2.7
4
. COVER, AIR INLET - REPLACE
7112200
0.3
0.3
0.3
5
. DUCT, FLOOR REAR AIR OUTLET - REPLACE
7113400
0.6
0.6
0.6
6
. DUCT, FLOOR REAR AIR OUTLET REAR - REPLACE
7113500
1.2
1.2
1.2
C : C-100

C171C02
Display graphicTranslations of text in graphics


HEATING & VENTILATION - EVAPORATOR (713)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
1
. COVER, HEATER CORE (A/C) - REPLACE
7130100
4.4
4.4
4.4
A - Recover/Recharge A/C system
713010A
0.7
0.7
0.7
2
. MODULE, HEATER - REPLACE
7130300
4.4
4.4
4.4
A - Recover/Recharge A/C system
713030A
0.7
0.7
0.7
3
. CORE, HEATER - REPLACE
7130500
4.4
4.4
4.4
A - Recover/Recharge A/C system
713050A
0.7
0.7
0.7
4
. EVAPORATOR - REPLACE
7130700
4.6
4.6
4.6
A - Recover/Recharge A/C system
713070A
0.7
0.7
0.7
5
. EVAPORATOR CORE - REPLACE
7130900
4.7
4.7
4.7
A - Recover/Recharge A/C system
713090A
0.7
0.7
0.7
6
. O RING, EVAPORATOR INLET - REPLACE
7131100
1.1
1.1
1.1
INC : Recover/Recharge A/C system
.
.
.
.
7
. O RING, EVAPORATOR OUTLET - REPLACE
7131200
1.1
1.1
1.1
INC : Recover/Recharge A/C system
.
.
.
.
8
. VALVE, EXPANSION - REPLACE
7131600
1.1
1.1
1.1
INC : Recover/Recharge A/C system
.
.
.
.
. VALVE, EXPANSION (RHD) - REPLACE
7131700
1.1
1.1
1.1
INC : Recover/Recharge A/C system
.
.
.
.
9
. AIR INLET - REPLACE
7131800
3.7
3.7
3.7
10
. MODULE, AIR CON - REPLACE
7132100
4.9
4.9
4.9
INC : Recover/Recharge A/C system
.
.
.
.
C : C-100

C171C02
Display graphicTranslations of text in graphics


HEATING & VENTILATION - EVAPORATOR (713)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
11
. MOTOR, AIR INLET - REPLACE
7132800
3.7
3.7
3.7
12
. MOTOR, MODE - REPLACE
7132900
0.3
0.3
0.3
13
. MOTOR, AIR MIX - REPLACE
7133200
0.5
0.5
0.5
14
. SENSOR, DUCT - REPLACE
7133600
0.4
0.4
0.4
15
. RELAY, HIGH - REPLACE
7133700
0.6
0.6
0.6
16
. THERMISTER - REPLACE
7133800
4.4
4.4
4.4
17
. HEATER, FREE - REPLACE
7133900
0.3
—
—
18
. ADHESIVE, AIR OUTLET DUCT SEAL - REPLACE
7134200
2.7
2.7
2.7
C : C-100

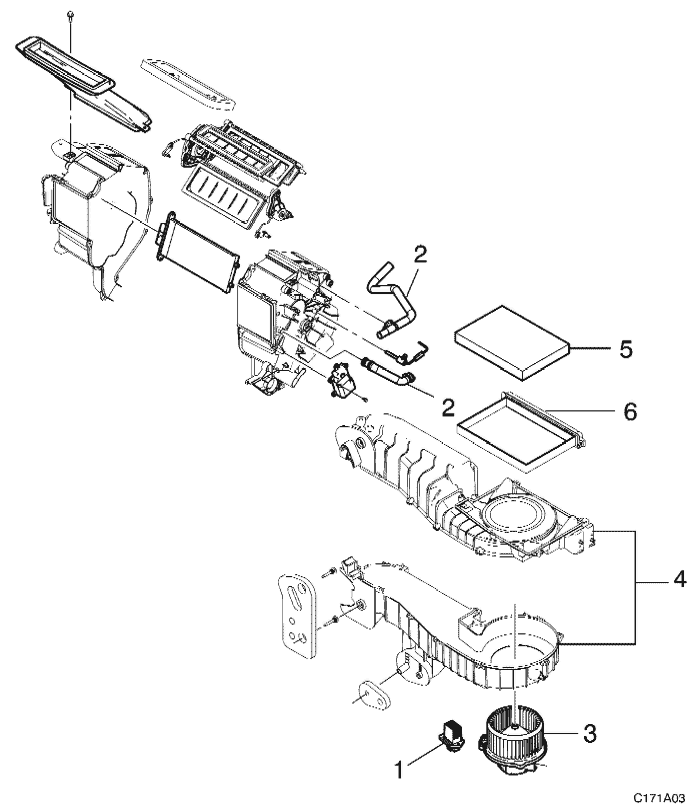

C171A03
Display graphicTranslations of text in graphics


HEATING & VENTILATION - BLOWER (714)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
1
. RESISTOR, BLOWER MOTOR - REPLACE
7140100
0.2
0.2
0.2
2
. TUBE, BLOWER MOTOR COOLING - REPLACE
7140500
0.3
0.3
0.3
3
. MOTOR AND/OR FAN, BLOWER - REPLACE
7140700
0.4
0.4
0.4
4
. HOUSING, BLOWER MOTOR - REPLACE
7140900
4.6
4.6
4.6
A - Recover/Recharge AC system
714090A
0.7
0.7
0.7
5
. FILTER, AIR - REPLACE
7141100
0.3
0.3
0.3
6
. COVER, AIR FILTER - REPLACE
7141300
0.3
0.3
0.3
C : C-100
