Service Manual2006 Captiva STEERING (STEERING WHEEL & COLUMN)

SECTION 6E

STEERING (STEERING WHEEL & COLUMN)

STEERING WHEEL & COLUMN - STEERING WHEEL (641)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C	.
1	. WHEEL, STEERING (W/AIR BAG) - REPLACE	6410100	0.6	.
2	. SWITCH (W/AIR BAG) - REPLACE	.	.	.
	Windshield Wiper	6410600	0.5	.
	Multifunction	6410700	0.5	.
3	. NUT, STEERING WHEEL (W/AIR BAG) - REPLACE	6411500	0.2	.

C : C-100

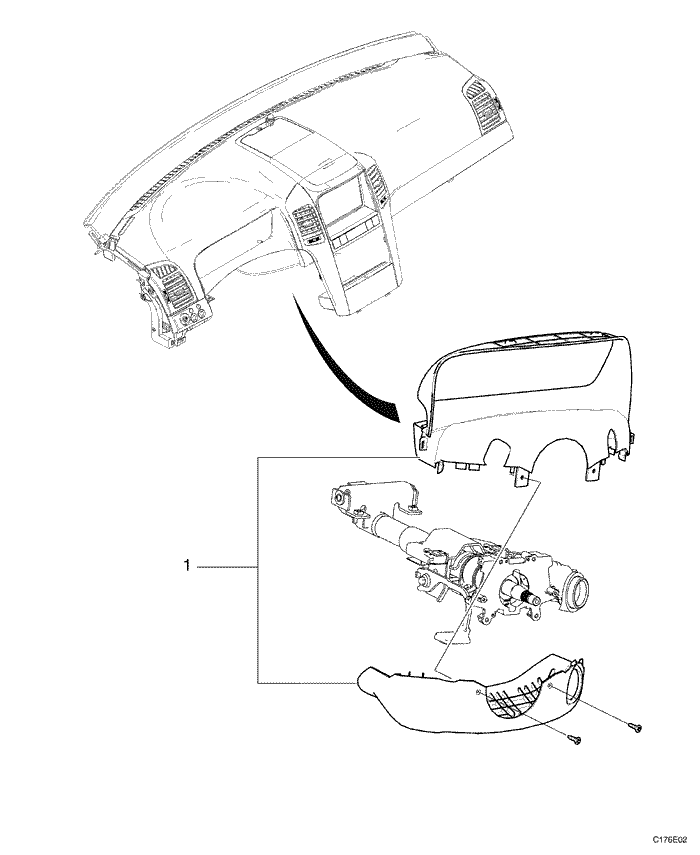

STEERING WHEEL & COLUMN - STEERING COLUMN COVER (642)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C	.
1	. COVER, STEERING WHEEL - REPLACE	.	.	.
	Lower	6420100	0.4	.
	Upper	6420300	0.4	.
	Both	6420500	0.4	.

C : C-100

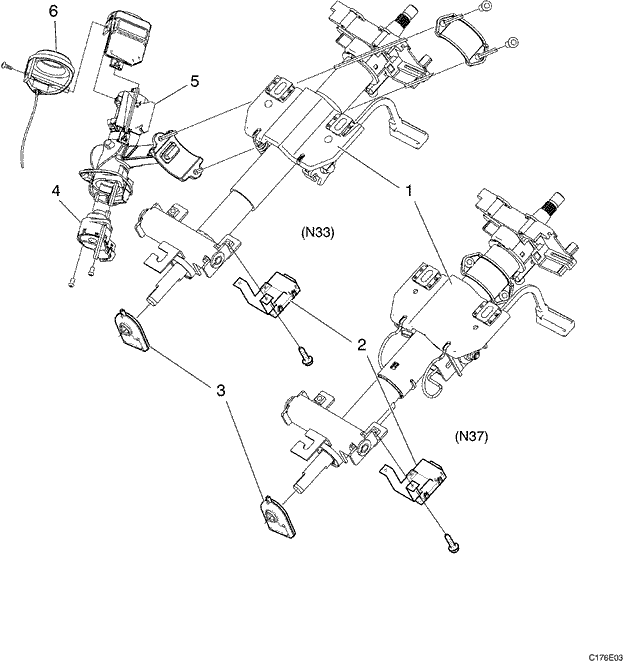

STEERING WHEEL & COLUMN - STEERING COLUMN (643)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C	.
1	. COLUMN ASSEMBLY, TILT AND/OR TELESCOPING STEERING - REPLACE	.	.	.
1	A - With Driver's Air Bag	6430300	1.0	.
2	. MODULE, P/S CONT - REPLACE	6432100	0.2	.
3	. SENSOR, STEERING ANGLE - REPLACE	6432300	0.3	.
4	. SWITCH ASM, IGN & START - REPLACE	6432700	0.5	.
5	. CYLINDER ASM, IGN LOCK - REPLACE	6432900	1.3	.
6	. SWITCH ASM, IGN KEY ALARM - REPLACE	6433000	0.5	.

C : C-100

STEERING WHEEL & COLUMN - TIRE ROD (647)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C	.
1	. TIE ROD END AND/OR ADJUSTER SLEEVE - REPLACE	.	.	.
	Right	6470500	0.6	.
	Left	6470600	0.6	.
	Both	6470700	0.8	.
2	. TIE ROD - REPLACE	.	.	.
	Right	6471100	0.8	.
	Left	6471200	0.8	.
	Both	6471300	1.2	.
3	. BOOT, RACK & PINION - REPLACE	.	.	.
	Right	6472100	0.8	.
	Left	6472200	0.8	.
	Both	6472400	1.2	.

C : C-100
