Service Manual2006 Captiva SUSPENSION (REAR SUSPENSION)

SECTION 2D

SUSPENSION (REAR SUSPENSION)

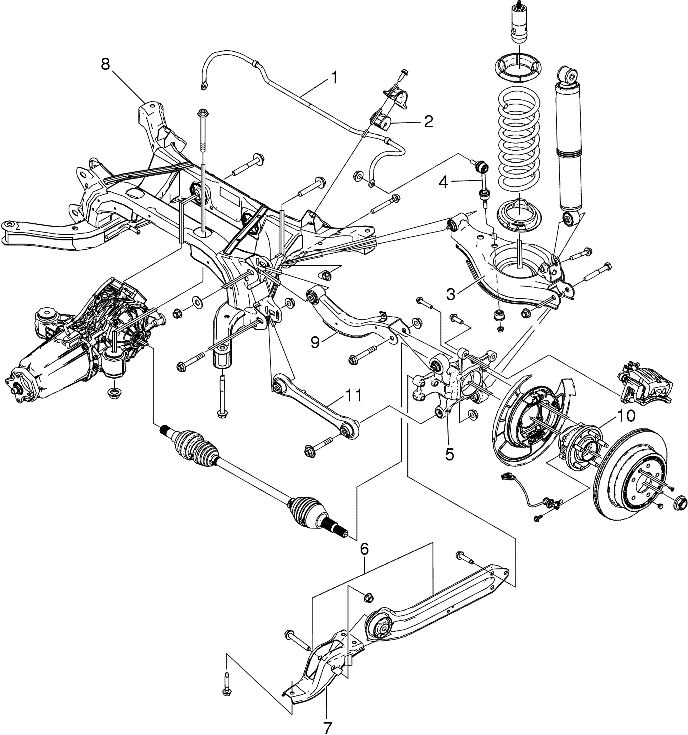

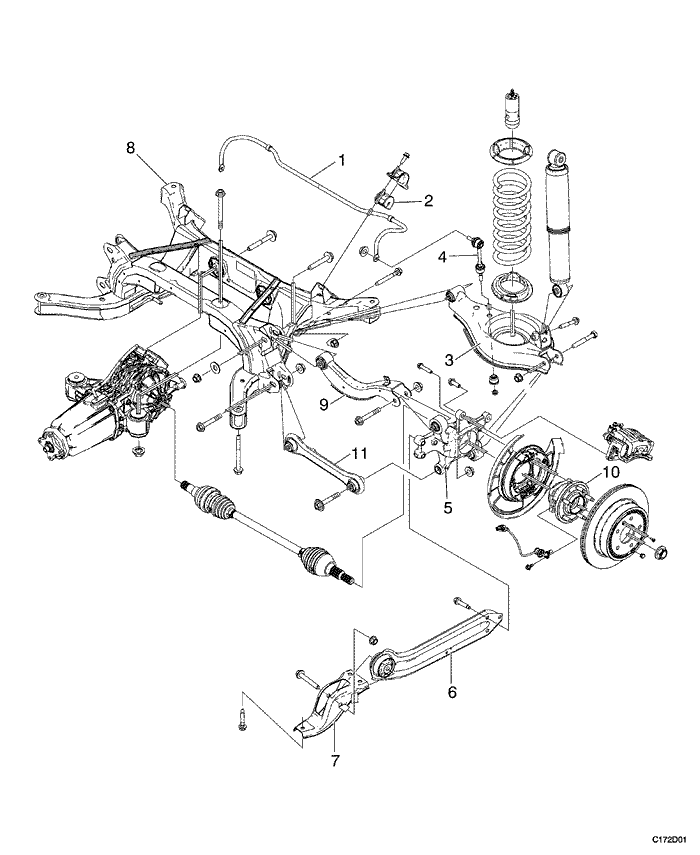

REAR SUSPENSION - FOUR LINK TYPE (231)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	SHAFT, REAR STABILIZER - REPLACE	2310100	0.6	0.6
2	INSULATION, REAR STABILIZER SHAFT - REPLACE	2310300	0.4	0.4
3	ARM, REAR SUSPENSION LOWER CONTROL - REPLACE	.	.	.
	INC : Rear Wheel Alignment	.	.	.
	Right	2311800	1.6	1.6
	Left	2311900	1.6	1.6
	Both	2312000	2.2	2.2
4	LINK, REAR STABILIZER SHAFT - REPLACE	.	.	.
	Right	2314100	0.4	0.4
	Left	2314200	0.4	0.4
	Both	2314300	0.6	0.6
5	KNULKCE, REAR SUSPENSION - REPLACE	.	.	.
	INC : Rear Wheel Alignment	.	.	.
	Right	2315100	1.6	1.6
	Left	2315200	1.6	1.6
	Both	2315300	2.2	2.2
	A - With RDM (Rear Drive Module)	.	.	.
	Right	231510A	0.2	0.2
	Left	231520A	0.2	0.2
	Both	231530A	0.2	0.2
6	ARM, REAR SUSPENSION TRAILING - REPLACE	.	.	.
	Right	2315400	0.5	0.5
	Left	2315500	0.5	0.5
	Both	2315600	0.8	0.8
7	BRACKET, REAR SUSPENSION TRAILING - REPLACE	.	.	.
	Right	2315700	0.4	0.4
	Left	2315800	0.4	0.4
	Both	2315900	0.6	0.6
8	SUPPORT, REAR SUSPENSION - REPLACE	2316100	3.4	3.4
	INC : Rear Wheel Alignment	.	.	.
	A - With RDM (Rear Drive Module)	231610A	0.8	0.8

REAR SUSPENSION - FOUR LINK TYPE (231)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
9	ARM, REAR SUSPENSION UPRER CONTROL - REPLACE	.	.	.
	INC : Rear Wheel Alignment	.	.	.
	Right	2318100	1.5	1.5
	Left	2318200	1.5	1.5
	Both	2318300	1.8	1.8
10	BEARING AND HUB ASSEMBLY REAR WHEEL - REPLACE	.	.	.
	Right	2318400	0.6	0.6
	Left	2318500	0.6	0.6
	Both	2318600	1.0	1.0
	A - With RDM (Rear Drive Module)	.	.	.
	Right	231840A	0.1	0.1
	Left	231850A	0.1	0.1
	Both	231860A	0.2	0.2
11	LINK, REAR SUSPENSION - REPLACE	.	.	.
	INC : Rear Wheel Alignment	.	.	.
	Right	2318700	1.3	1.3
	Left	2318800	1.3	1.3
	Both	2318900	1.6	1.6

REAR SUSPENSION - REAR SHOCK ABSORBER (232)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	SPING, REAR - REPLACE	.	.	.
	INC : Rear Wheel Alignment	.	.	.
	Right	2320100	1.5	1.5
	Left	2320300	1.5	1.5
	Both	2320500	2.0	2.0
2	INSULATION, REAR SPRING UPPER AND/OR LOWER - REPLACE	.	.	.
	INC : Rear Wheel Alignment	.	.	.
	Right	2320700	1.5	1.5
	Left	2320800	1.5	1.5
	Both	2320900	2.0	2.0
3	ABSORBER, REAR SHAFT - REPLACE	.	.	.
	Right	2321100	0.5	0.5
	Left	2321200	0.5	0.5
	Both	2321300	0.8	0.8
4	BUMPER, REAR SUSPENSION JOUNCE - REPLACE	.	.	.
	INC : Rear Wheel Alignment	.	.	.
	Right	2321400	1.6	1.6
	Left	2321500	1.6	1.6
	Both	2321600	2.2	2.2
