Service Manual2006 Captiva SUSPENSION (FRONT SUSPENSION)

SECTION 2C

SUSPENSION (FRONT SUSPENSION)

FRONT SUSPENSION - KNUCKLE & HUB (213)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C	.
.	. TOE, FRONT - ADJUST.	2130100	0.6	.
.	. WHEEL ALIGNMENT - CHECK AND/OR ADJUST.	2130300	1.0	.

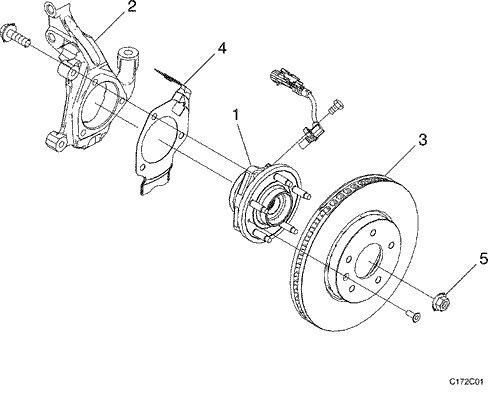

1	. BEARING, FRT WHEEL - REPLACE	.	.	.
	Right	2130500	1.0	.
	Left	2130600	1.0	.
	Both	2130700	1.8	.
2	. KUNCKLE, STEERING - REPLACE	.	.	.
	Right	2131100	1.0	.
	Left	2131200	1.0	.
	Both	2131300	1.8	.
3	. ROTOR, FRT WHEEL - REPLACE	.	.	.
	Right	2131500	0.4	.
	Left	2131600	0.4	.
	Both	2131700	0.6	.
4	. SHIELD, FRT BRAKE - REPLACE	.	.	.
	Right	2132100	1.0	.
	Left	2132200	1.0	.
	Both	2132300	1.8	.
5	. NUT, FRT WHEEL DRIVE SHIFT - REPLACE	.	.	.
	Right	2134100	0.3	.
	Left	2134200	0.3	.
	Both	2134300	0.4	.

C : C-100

FRONT SUSPENSION - FRONT SHOCK ABSORBER (214)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C	.

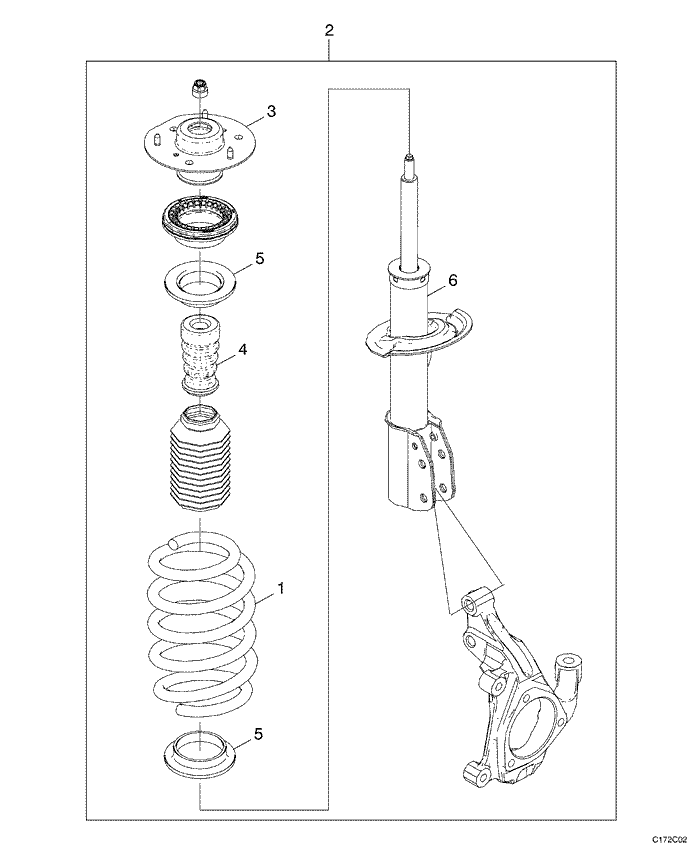

1	. SPRING, FRONT COIL - REPLACE	.	.	.
	Right	2140100	1.2	.
	Left	2140200	1.2	.
	Both	2140300	2.2	.
2	. STRUT, FRONT SUSPENSION - REPLACE	.	.	.
	Right	2140900	0.6	.
	Left	2141100	0.6	.
	Both	2141200	1.0	.
3	. MOUNT ASSEMBLY, FRONT STRUT BEARING - REPLACE	.	.	.
	Right	2141900	1.0	.
	Left	2142100	1.0	.
	Both	2142200	1.8	.
4	. BUMPER, FRONT SUSPENSION - REPLACE	.	.	.
	Right	2142400	1.0	.
	Left	2142500	1.0	.
	Both	2142600	1.8	.
5	. INSULATION, FRONT SPRING (UPPER/LOWER) - REPLACE	.	.	.
	Right	2142700	1.2	.
	Left	2142800	1.2	.
	Both	2142900	2.2	.
6	. SHOCK ABSORBER - REPLACE	.	.	.
	Right	2143100	1.2	.
	Left	2143200	1.2	.
	Both	2143300	2.2	.

C : C-100

FRONT SUSPENSION - CONTROL ARM (215)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C	.

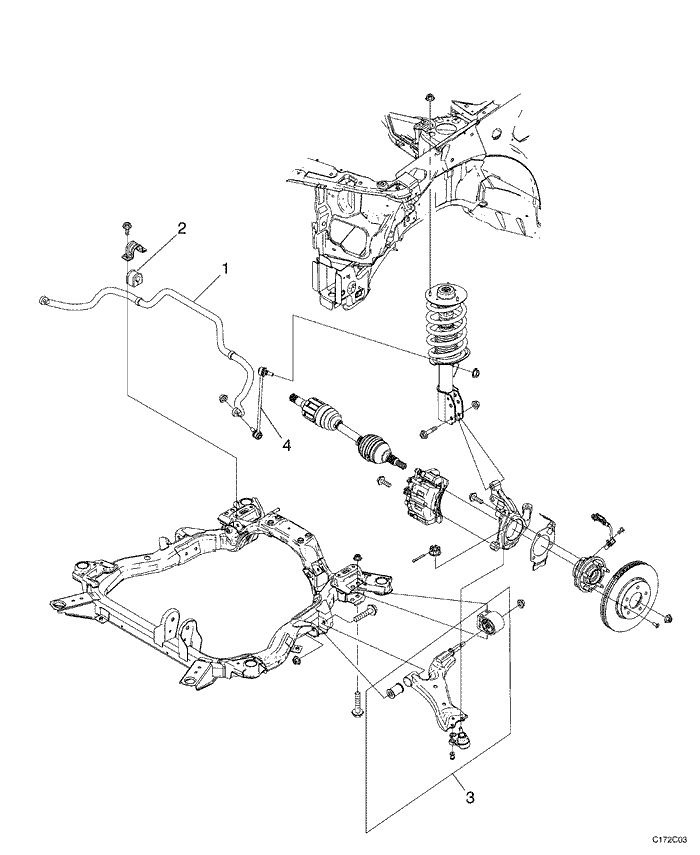

1	. SHAFT, FRONT STABILIZER - REPLACE	2150500	1.4	.
2	. INSULATION, FRONT STABILIZER SHAFT - REPLACE	2150700	0.5	.
3	. ARM, FRONT LOWER CONTROL - REPLACE	.	.	.
	Right	2151500	0.6	.
	Left	2151600	0.6	.
	Both	2151700	1.0	.
4	. LINK, FRONT STABILIZER SHAFT - REPLACE	.	.	.
	Right	2152700	0.4	.
	Left	2152800	0.4	.
	Both	2152900	0.6	.

C : C-100
