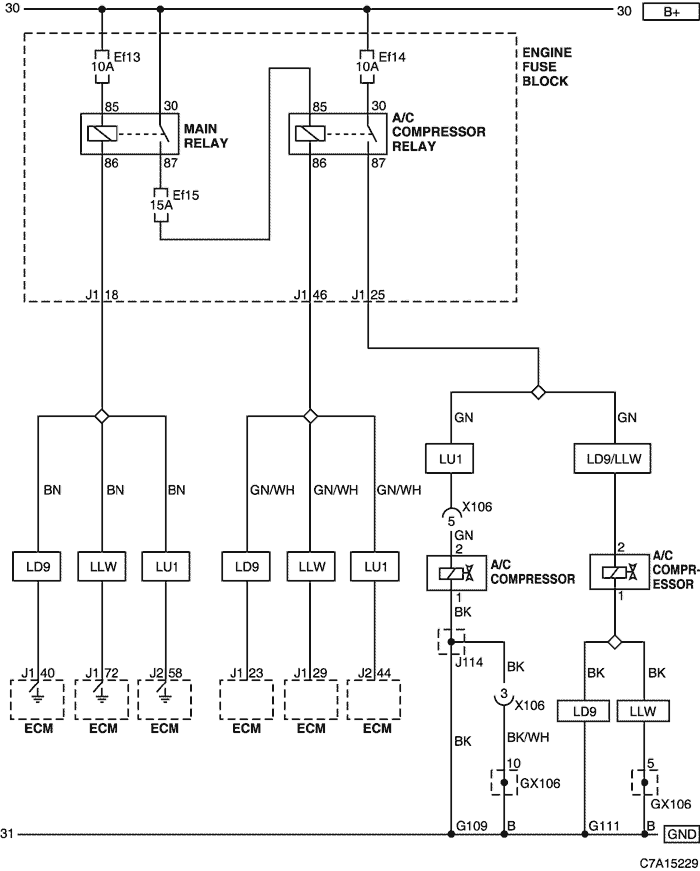

9. AIR CONDITIONER COMPRESSOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X106 (7 Pin, Black) | Engine - Fuel Injector (HVF6) | Upper the cylinder Head |
| GX106 (Black/Gray) | Engine (DSL/HFV6) | Upper the Cylinder Head |
| G109 | Fuel Injector (HFV6) | On the Cylinder Block |
| G111 | Engine (FAM II) | On the Cylinder Block |

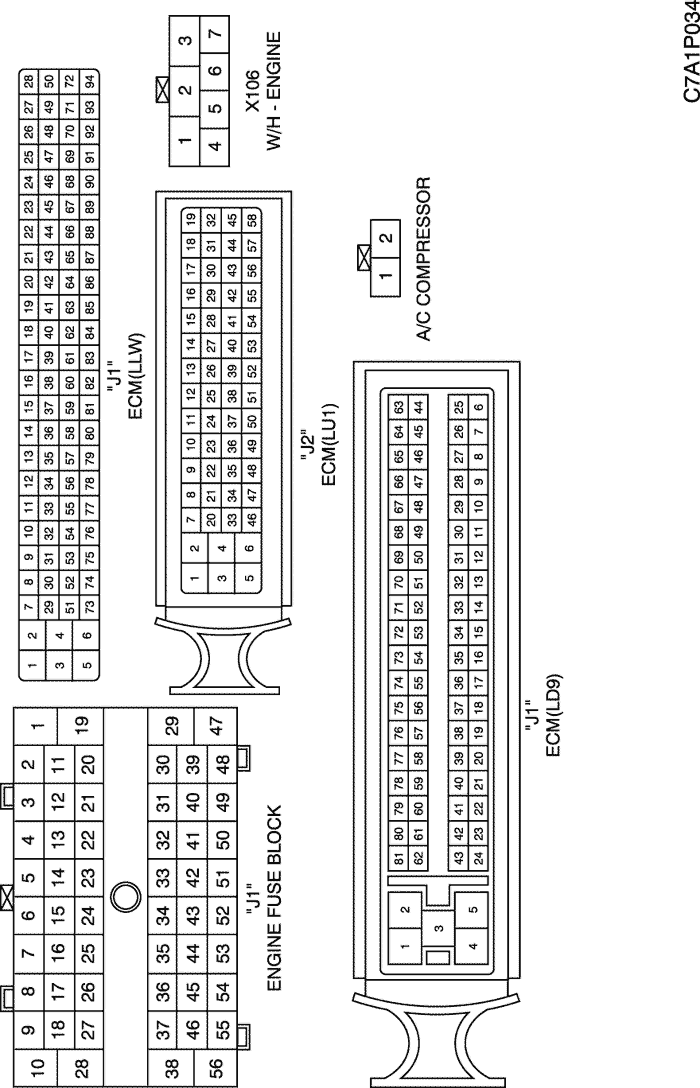

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H ENGINE (LD9)
W/H ENGINE (LLW)
W/H ENGINE (LU1)
