10. RADIATOR COOLING FAN CIRCUIT

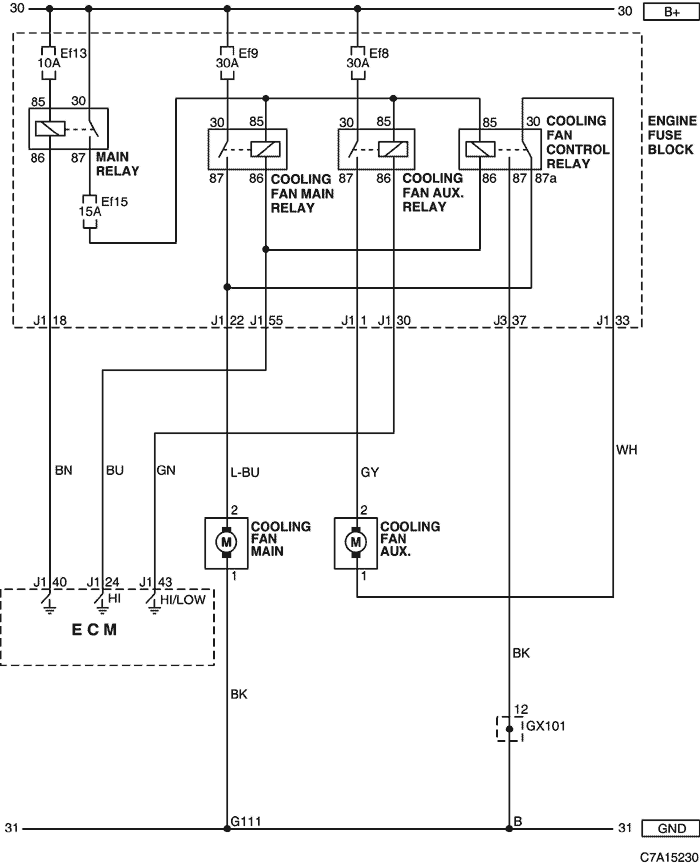

1) COOLING FAN CIRCUIT : FAM II 2.4D (LD9)
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| GX101 (Black/Gray) | Front | Behind the left HeadLamp |
| G111 | Engine (FAM II) | On the Cylinder Block |

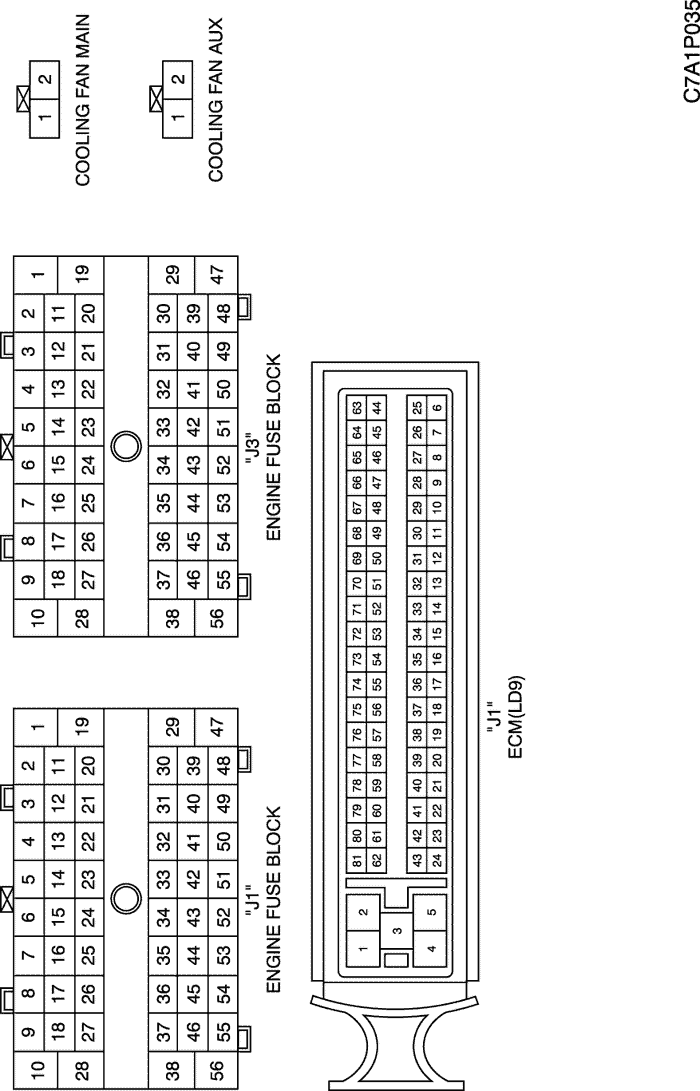

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H ENGINE (LD9)
W/H FRONT

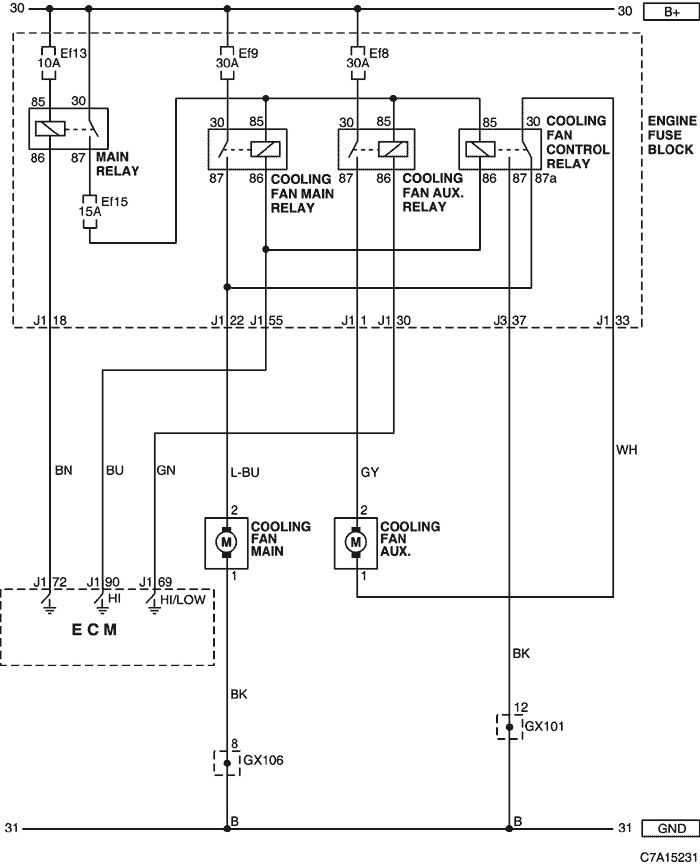

2) COOLING FAN CIRCUIT : 2.0 DIESEL (LLW)
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| GX101 (Black/Gray) | Front | Behind the left HeadLamp |
| GX106 (Black/Gray) | Engine (DSL/HFV6) | Upper the Cylinder Head |

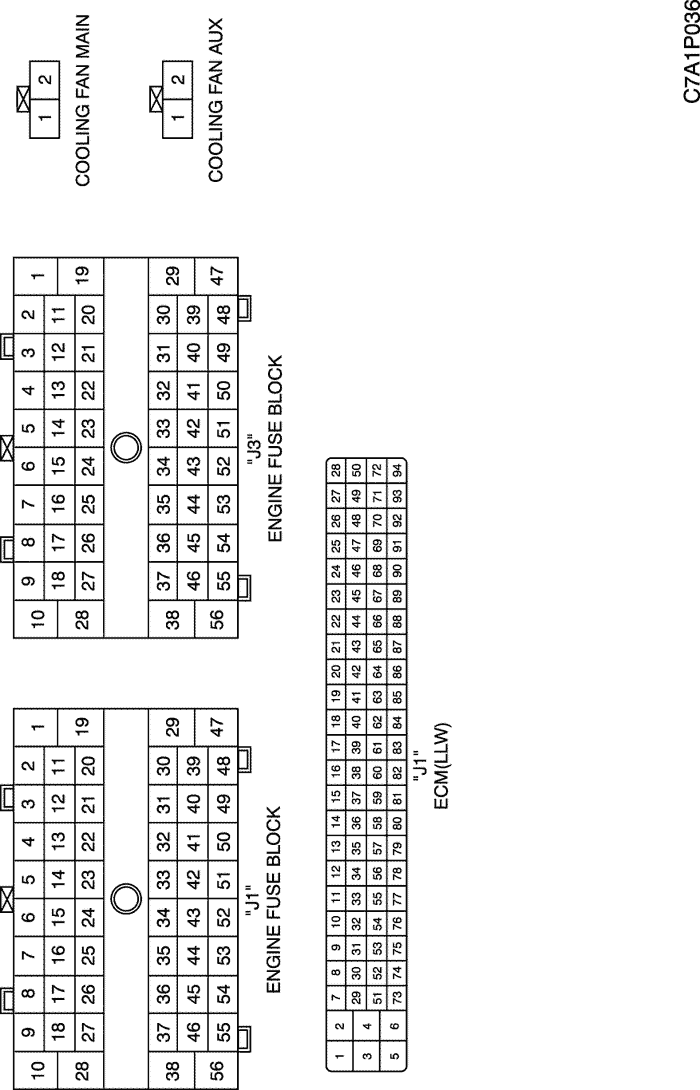

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H ENGINE (LLW)
W/H FRONT

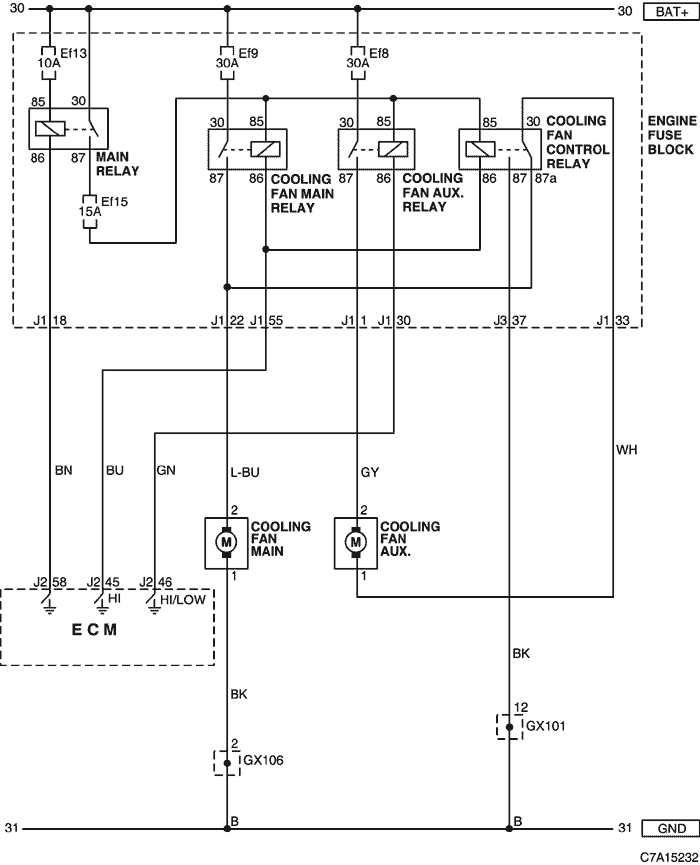

3) COOLING FAN CIRCUIT : HFV6 3.2 (LU1)
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| GX101 (Black/Gray) | Front | Behind the left HeadLamp |
| GX106 (Black/Gray) | Engine (DSL/HFV6) | Upper the Cylinder Head |

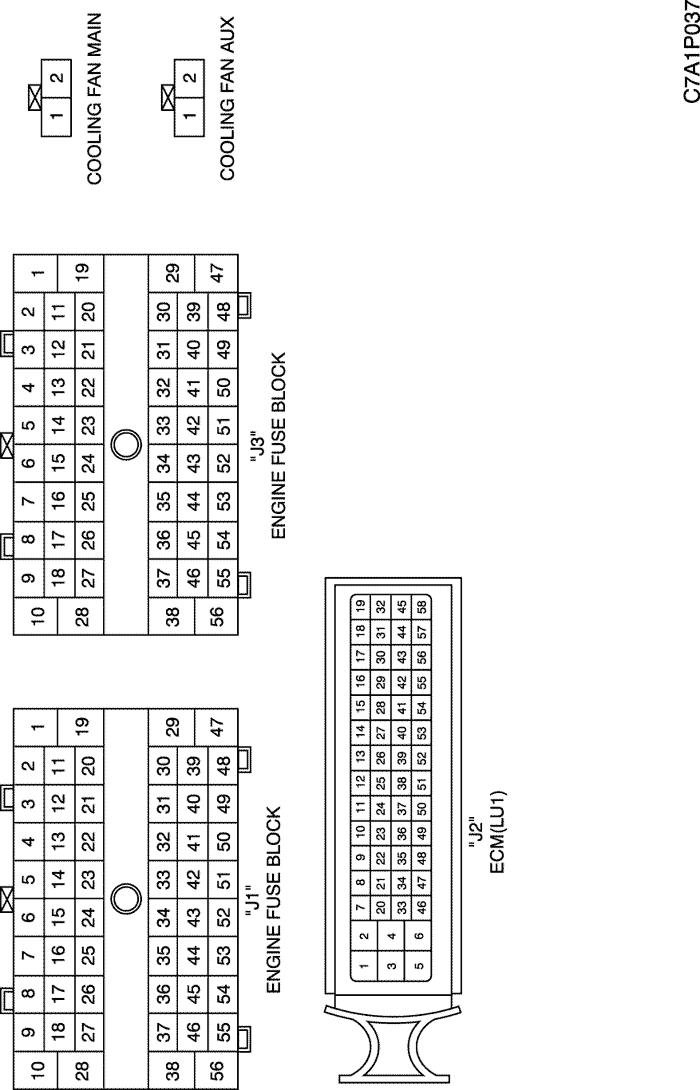

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H ENGINE (LU1)
W/H FRONT
