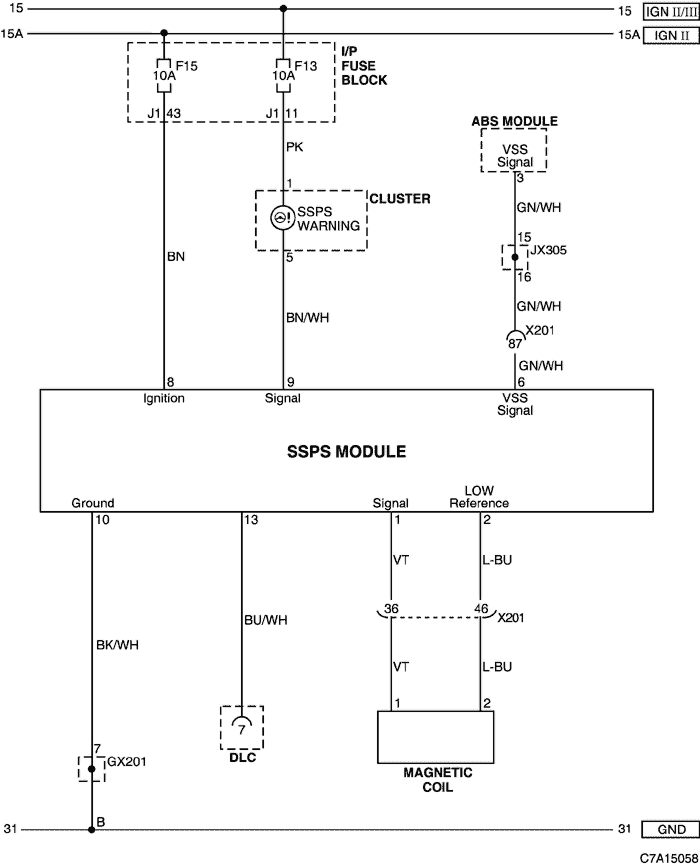

33. SSPS (SPEED SENSITIVE POWER STEERING) CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar
GX201 (Black/Gray)I/PBehind Steering Column - Lower

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics


W/H BODY

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX305 (BLACK)

Display graphicTranslations of text in graphics
