Captiva

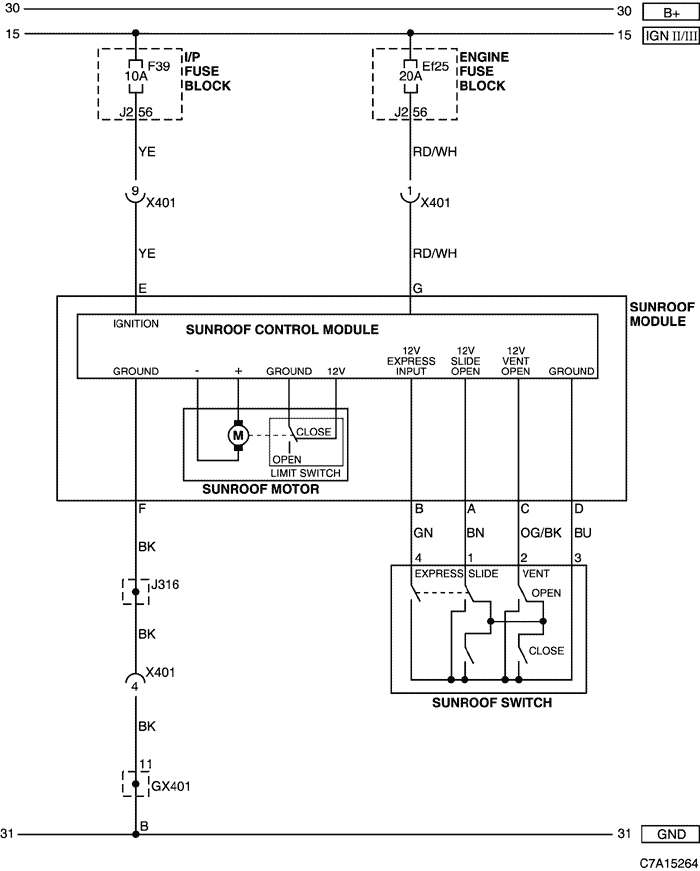

32. SUN ROOF CIRCUIT

a. CONNECTOR INFORMATION

CONNECTOR NO (PIN NO, COLOR)	CONNECTING WIRING HARNESS	CONNECTOR POSITION
X401 (18 Pin, Colorless)	Roof - Body	Inside the left "C" pillar
GX401 (Black/Gray)	Body	Right the luggage compartment

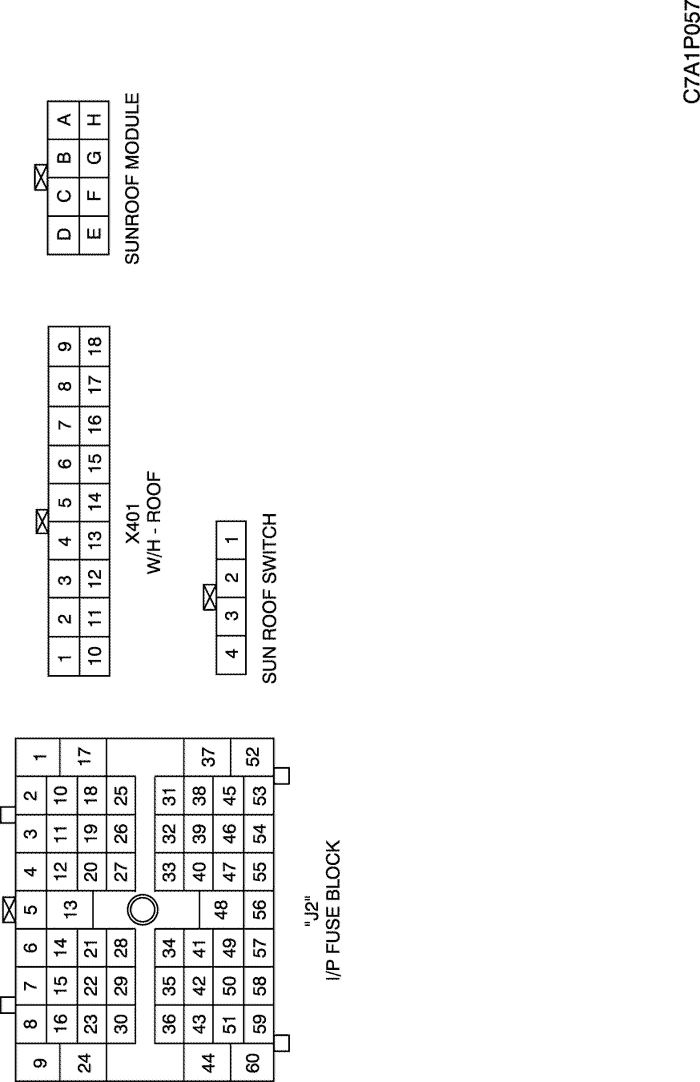

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

W/H BODY

W/H ROOF
