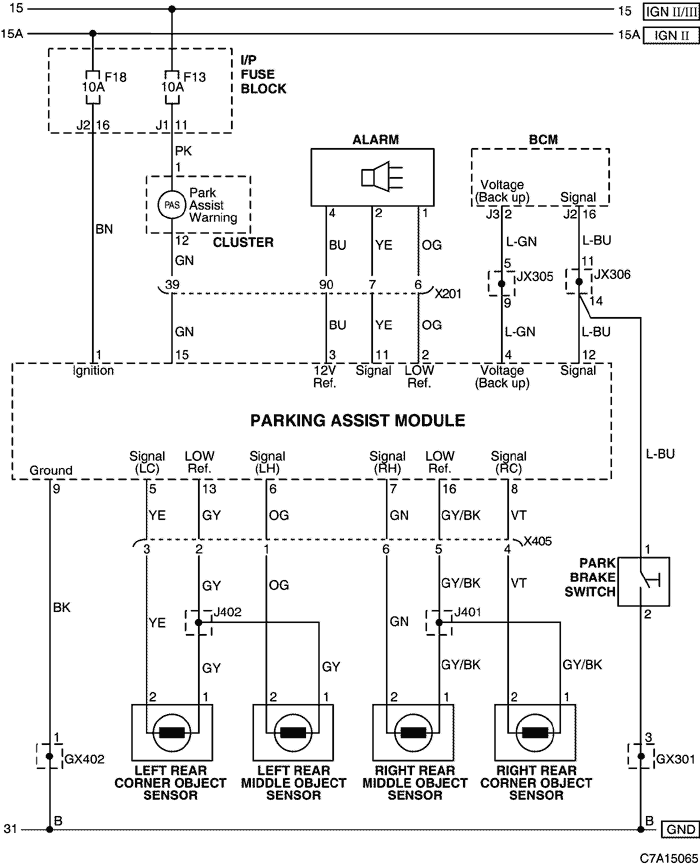

34. PARKING ASSIST MODULE CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X201 (92 Pin, Black) | Body - I.P | Below to the "A" pillar |
| X405 (6 Pin, Black) | Body - Rear Objective Alarm Sensor | Behind the right Tail Lamp |
| GX301 (Black/Gray) | Body | Under the right seat cushion |
| GX402 (Black/Gray) | Body | Right the luggage compartment |

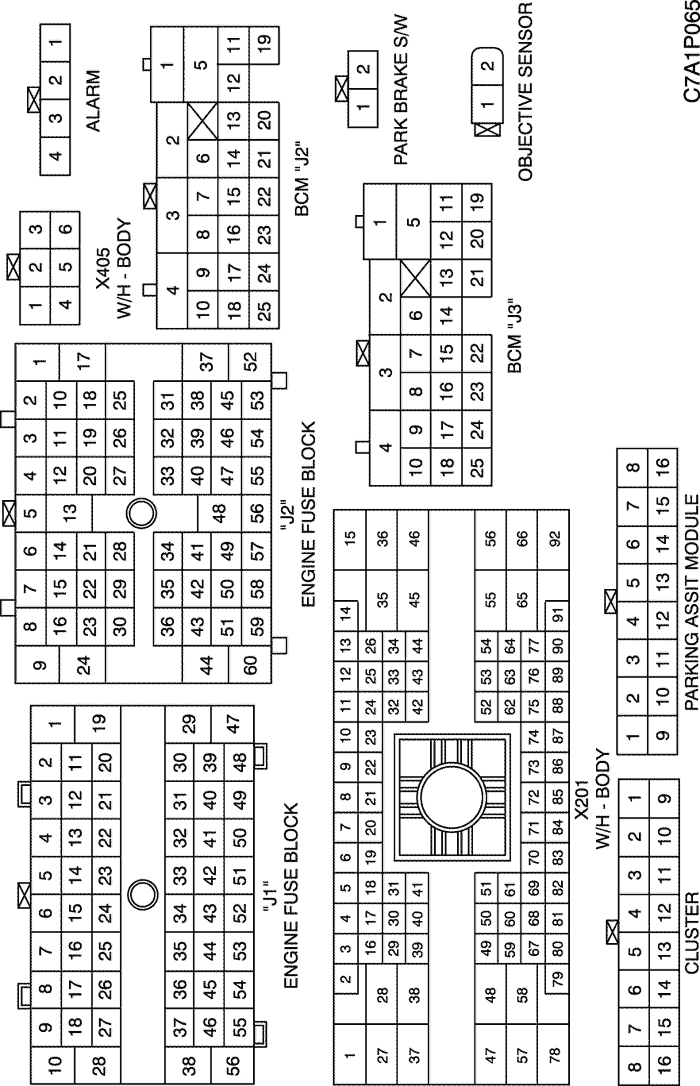

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
W/H BODY
d. SPLICE PACK
JX305 (BLACK)
JX306 (BLACK/PINK)
