31. AIR BAG (SDM: SENSING & DIAGNOSTIC MODULE) CIRCUIT

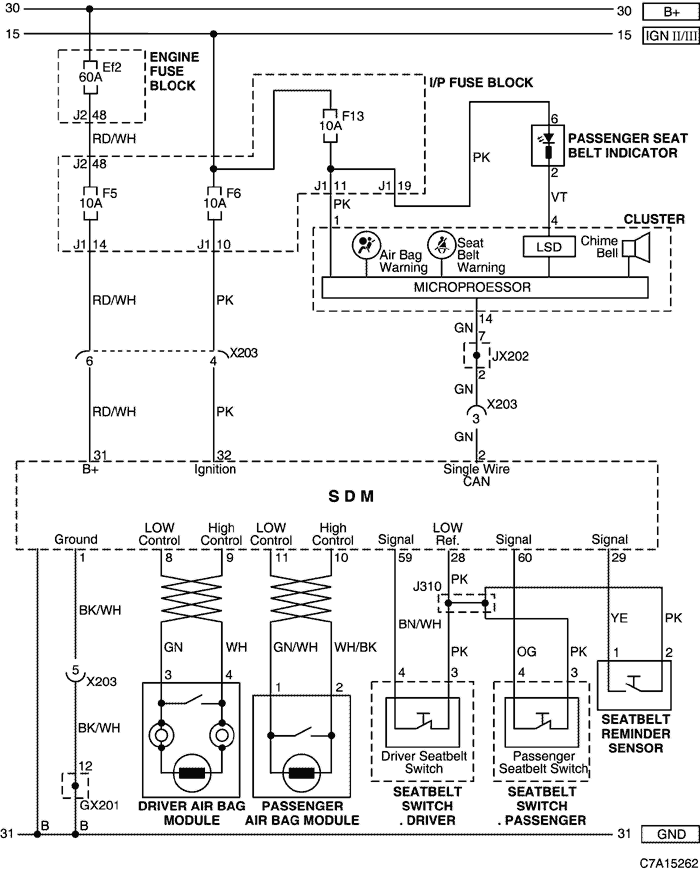

1) POWER SUPPLY, DRIVER/PASSENGER AIR BAG MODULE, SEATBELT SWITCH, SEATBELT REMINDER SENSOR & CLUSTER CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X203 (6 Pin, Colorless) | I.P - Air Bag | Below the floor console |
| GX201 (Black/Gray) | I/P | Behind Steering Column - Lower |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
W/H AIR BAG
d. SPLICE PACK
JX202 (BLACK/PINK)

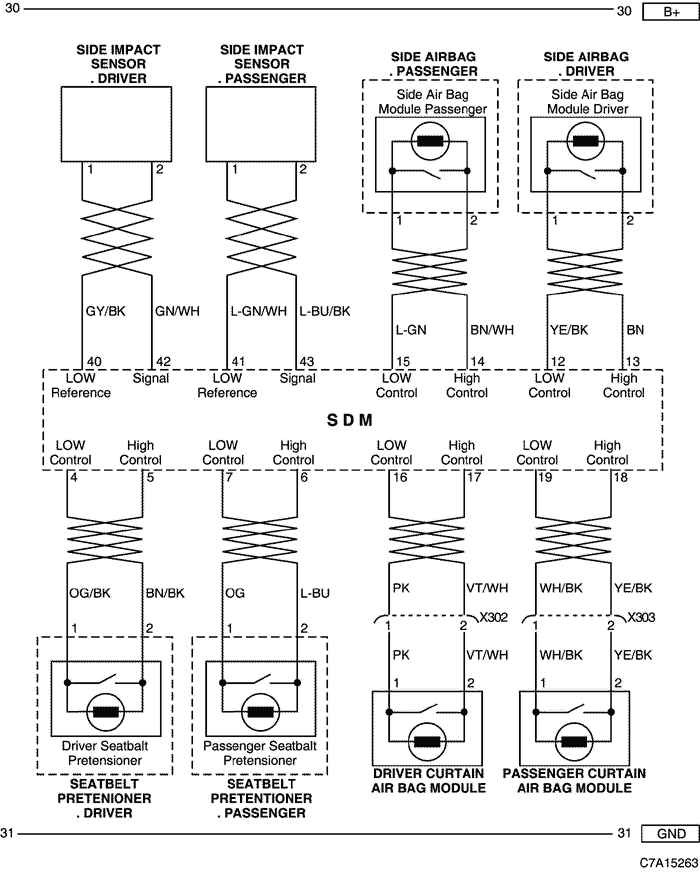

2) SIDE AIR BAG MODULE, SEATBELT PRETENSIONER, CURTAIN AIR BAG MODULE & SIDE IMPACT SENSOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X302 (2 Pin, Yellow) | Body - Air Bag | Inside left "B" Pillar |
| X303 (2 Pin, Yellow) | Body - Air Bag | Inside right "B" Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H BODY
W/H AIR BAG
