29. AUDIO CIRCUIT

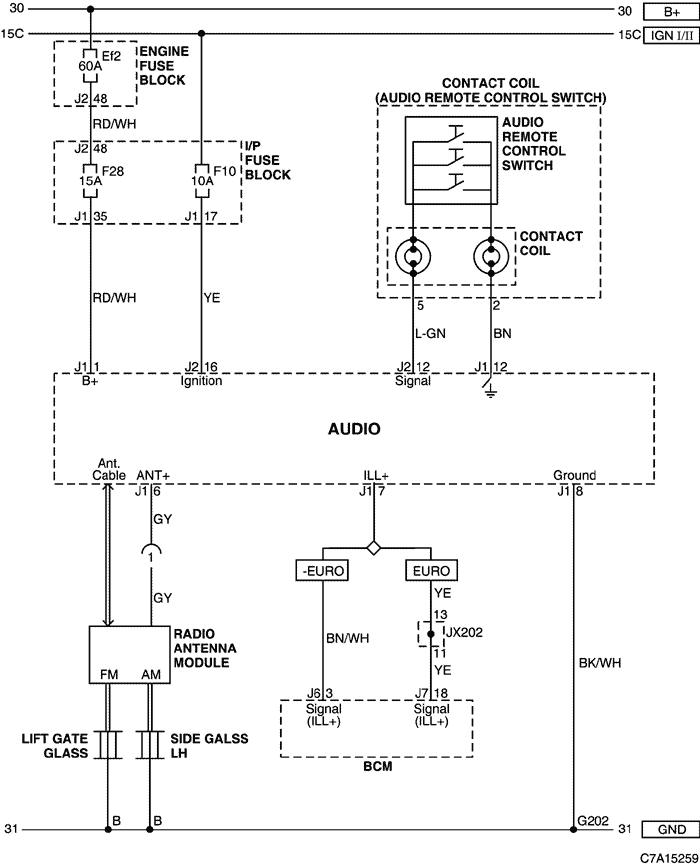

1) POWER SUPPLY, GROUND, REMOTE CONTROL SWITCH, ANTENNA MODULE CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X102 (12 Pin, Black) | Front JPR - Front | Behind the left side Head Lamp |
| X201 (92 Pin, Black) | Body - I.P | Below to the "A" pillar |
| X401 (18 Pin, Colorless) | Roof - Body | Inside the left "C" pillar |
| GX101 (Black/Gray) | Front | Behind the left HeadLamp |
| G202 | I/P | On the I/P Fuse block Braket |
| GX401 (Black/Gray) | Body | Right the luggage compartment |

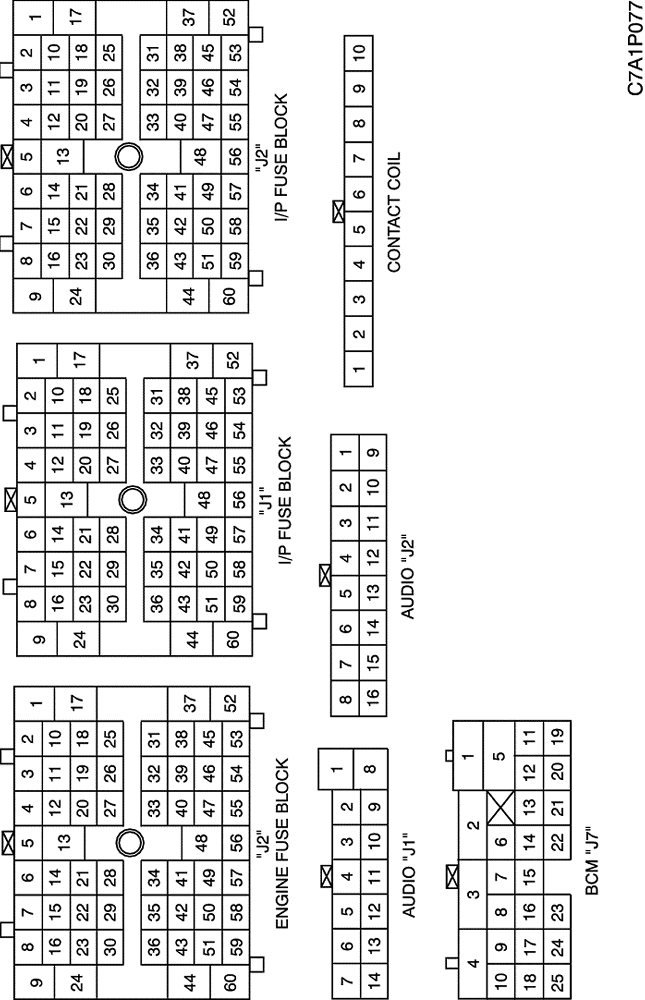

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
d. SPLICE PACK
JX202 (BLACK/PINK)

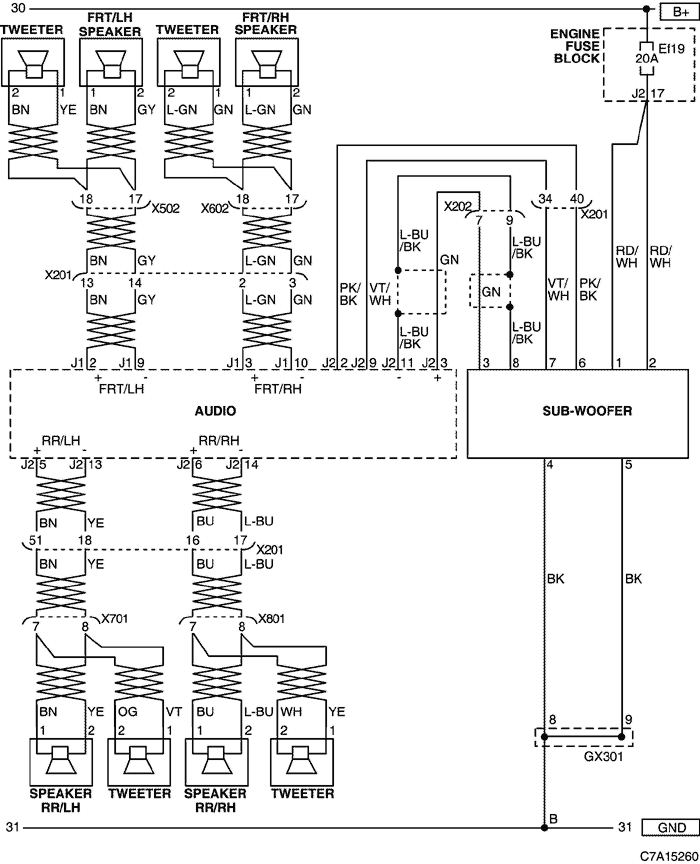

2) FRONT/REAR SPEAKER, TWEETER & SUB WOOFER CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X201 (92 Pin, Black) | Body - I.P | Below to the "A" pillar |
| X202 (12 Pin, Colorless) | I.P - Body | Behind the Audio |
| X502 (18 Pin, Colorless) | Body - Front LH Door | Under the left "A" Pillar |
| X602 (18 Pin, Colorless) | Body - Front RH Door | Under the right "A" Pillar |
| X701 (15 Pin, Colorless) | Body - Rear LH Door | Under the left "B" Pillar |
| X801 (15 Pin, Colorless) | Body - Rear RH Door | Under the right "B" Pillar |
| GX301 (Black/Gray) | Body | Under the right seat cushion |

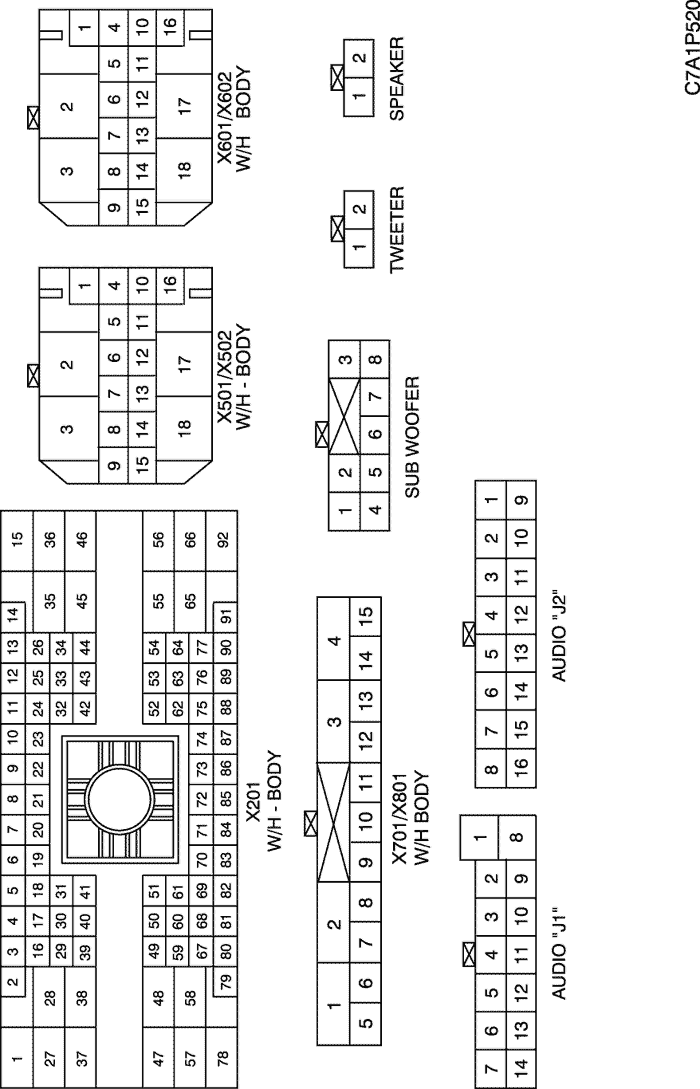

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H BODY
W/H FRONT DOOR
W/H REAR DOOR
W/H INSTRUMENT PANEL
