28. CLUSTER

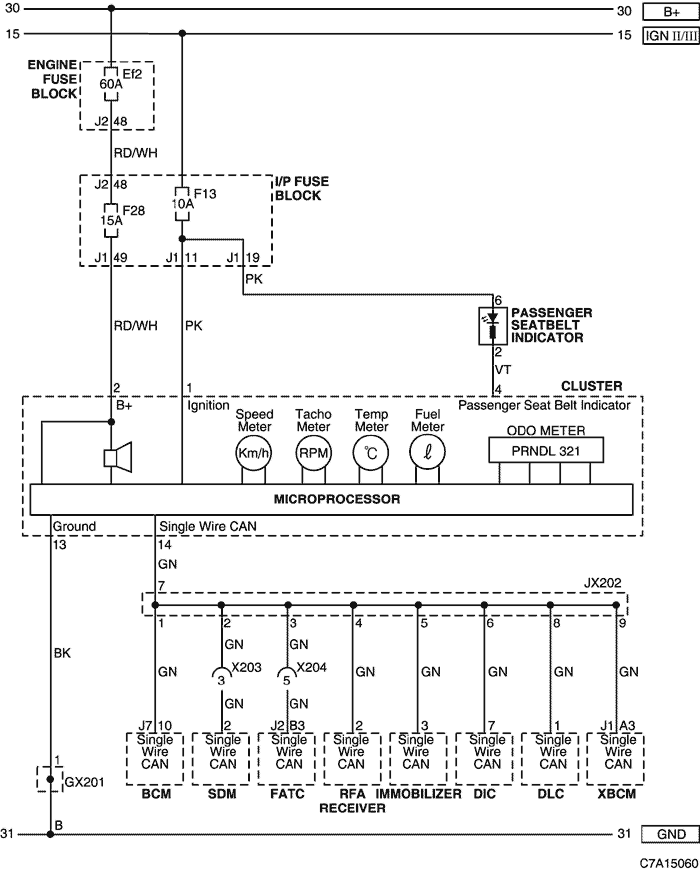

1) TEMPERATURE GAUGE, TACHOMETER, FUEL GAUGE, ODDOMETER, SPEEDOMETER, PASSENGER SEATBELT INDICATOR & SINGLE WIRE CAN CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X203 (6 Pin, Colorless) | I.P - Air Bag | Below the floor console |
| X204 (16 Pin, Black) | I.P - FATC | Behind the FATC |
| GX201 (Black/Gray) | I/P | Behind Steering Column - Lower |

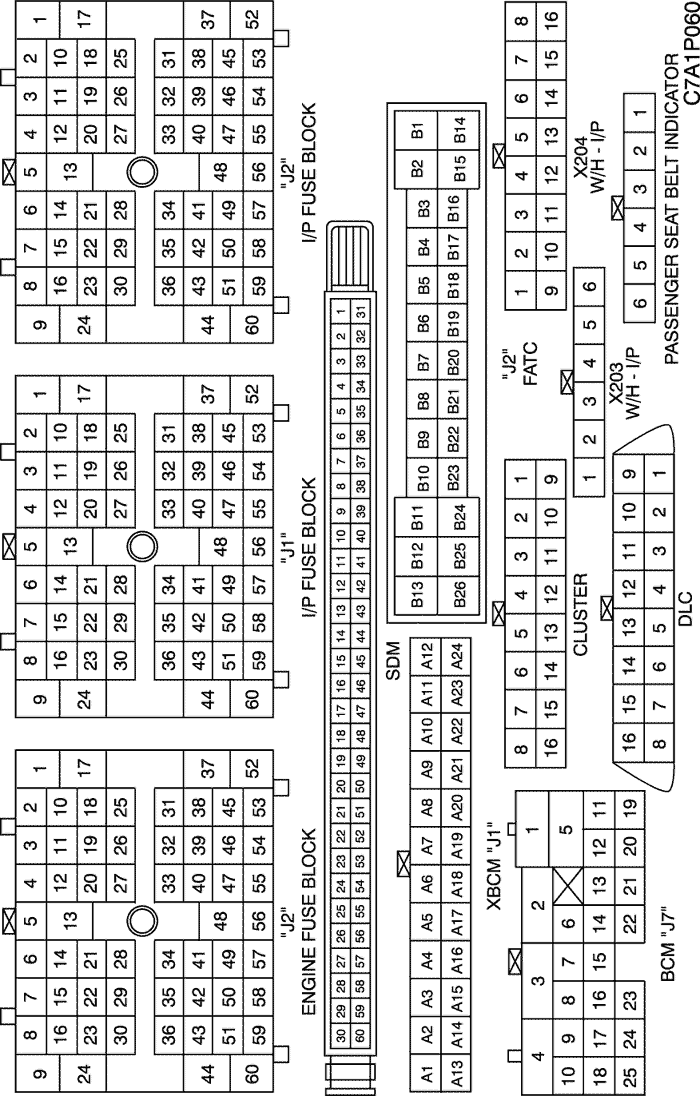

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
W/H AIR BAG
d. SPLICE PACK
JX202 (BLACK/PINK)

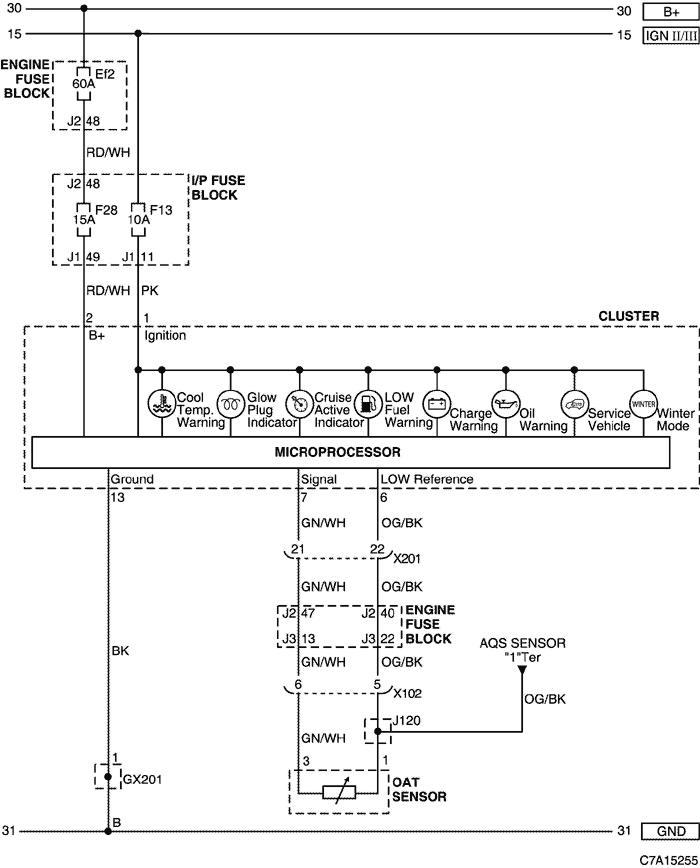

2) WARNING (COOL TEMP., LOW FUEL, CHARGE, OIL, SERVICE VEHICLE) LAMP, INDICATOR (CRUISE ACTIVE, GLOW PLUG, WINTER MODE) LAMP & OAT SENSOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X102 (12 Pin, Black) | Front JPR - Front | Behind the left side Head Lamp |
| X201 (92 Pin, Black) | Body - I.P | Below to the "A" pillar |
| GX201 (Black/Gray) | I/P | Behind Steering Column - Lower |

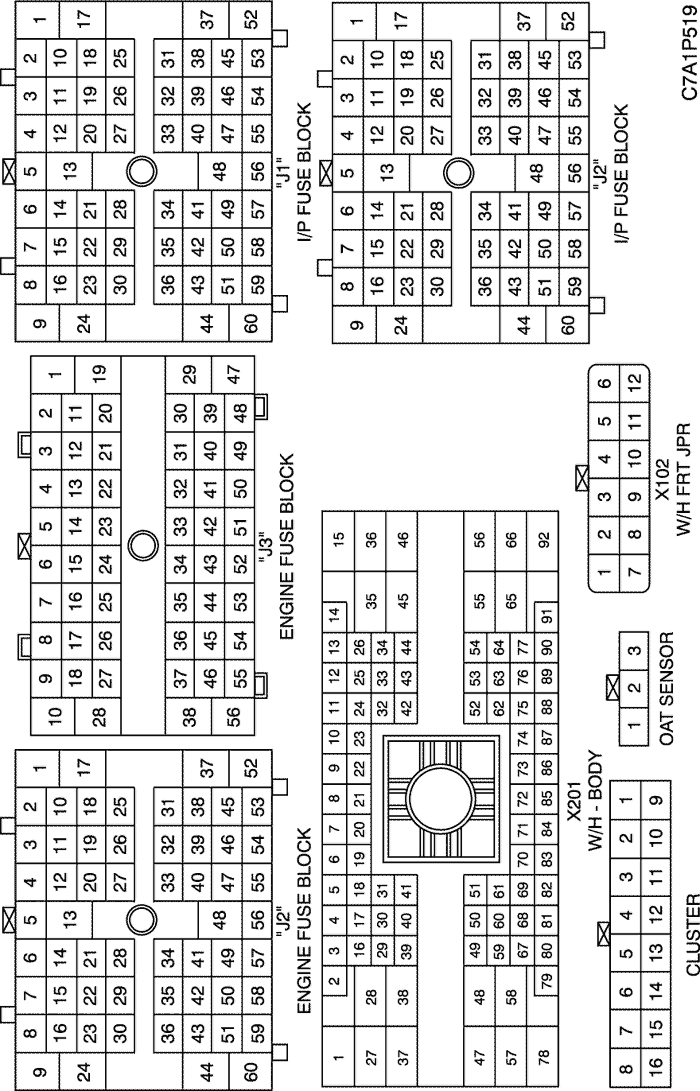

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
W/H FRONT

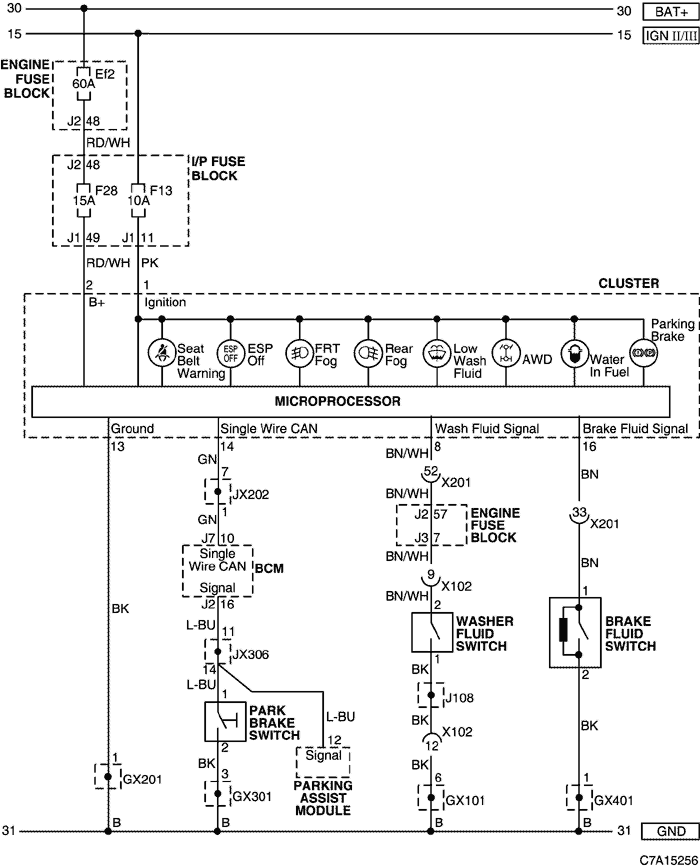

3) WARNING (SEAT BELT, LOW WASH FLUID, WATER IN FUEL, AWD, PARKING BRAKE) LAMP, INDICATOR (ESP OFF, FRONT/REAR FOG) LAMP CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X102 (12 Pin, Black) | Front JPR - Front | Behind the left side Head Lamp |
| X201 (92 Pin, Black) | Body - I.P | Below to the "A" pillar |
| GX101 (Black/Gray) | Front | Behind the left HeadLamp |
| GX201 (Black/Gray) | I/P | Behind Steering Column - Lower |
| GX301 (Black/Gray) | Body | Under the right seat cushion |
| GX401 (Black/Gray) | Body | Right the luggage compartment |

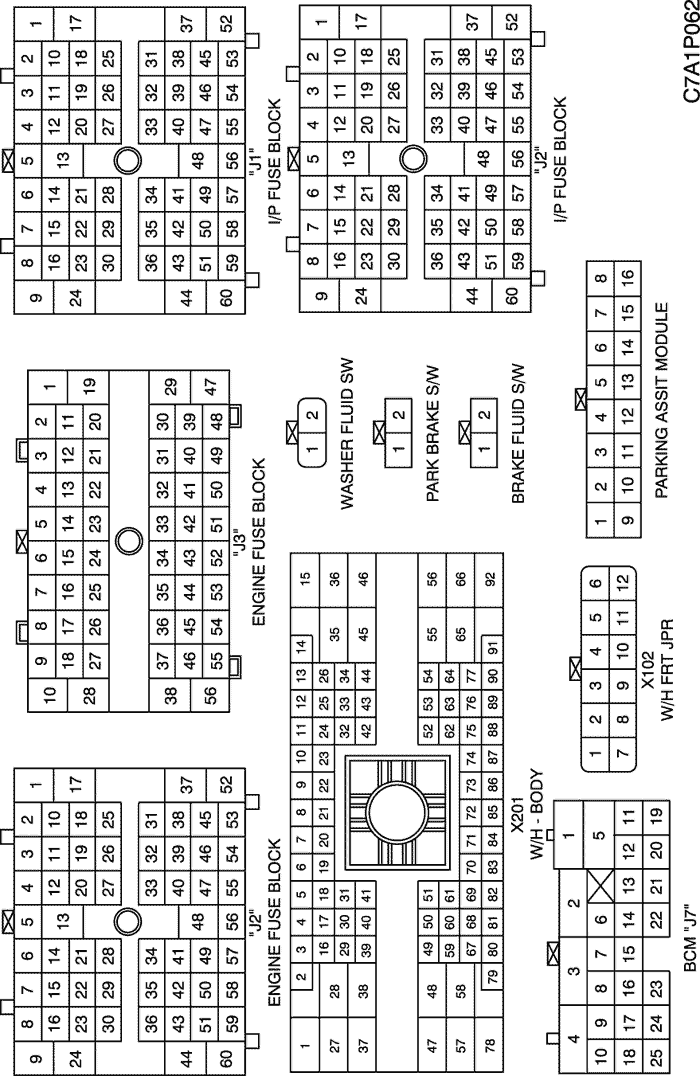

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
W/H BODY
d. SPLICE PACK
JX202 (BLACK/PINK)
JX306 (BLACK/BLUE)

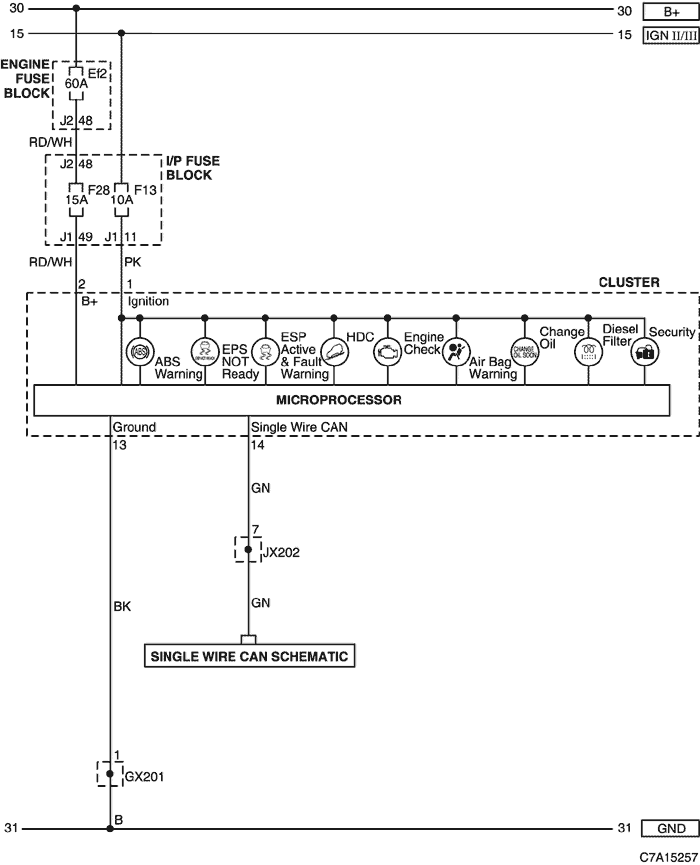

4) WARNING (ABS, ESP ACTIVE&FAULT, ENGINE CHECK, AIR BAG CHANGE OIL, SECURITY) LAMP, INDICATOR (ESP NOT READY DCS, DISEEL FILTER) LAMP CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| GX201 (Black/Gray) | I/P | Behind Steering Column - Lower |

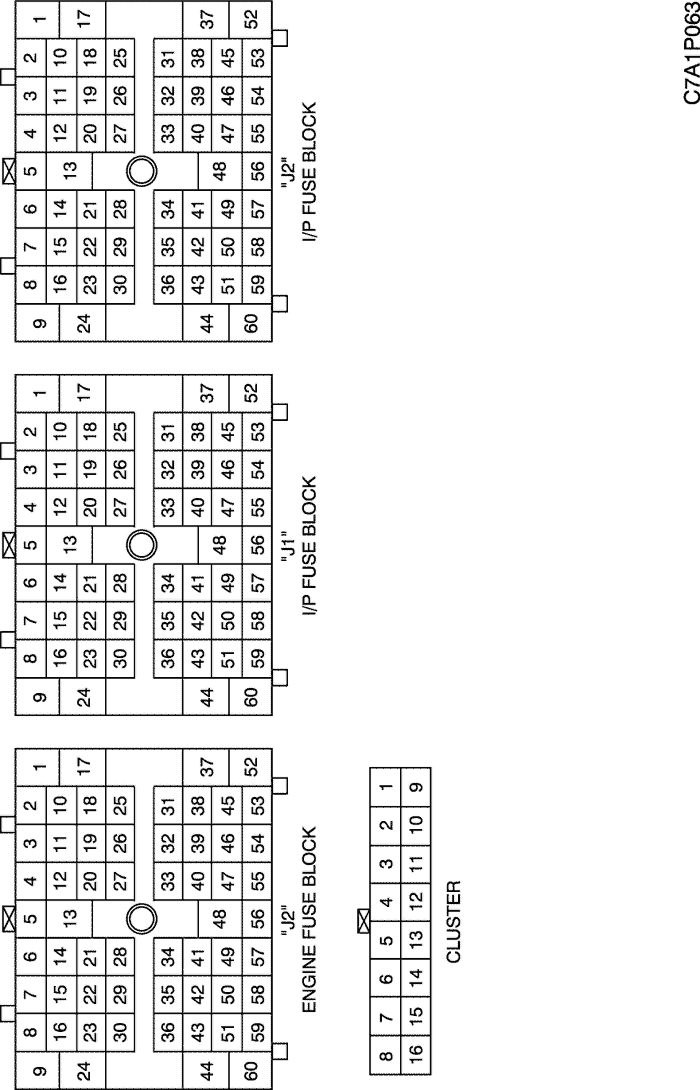

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
d. SPLICE PACK
JX202 (BLACK/PINK)

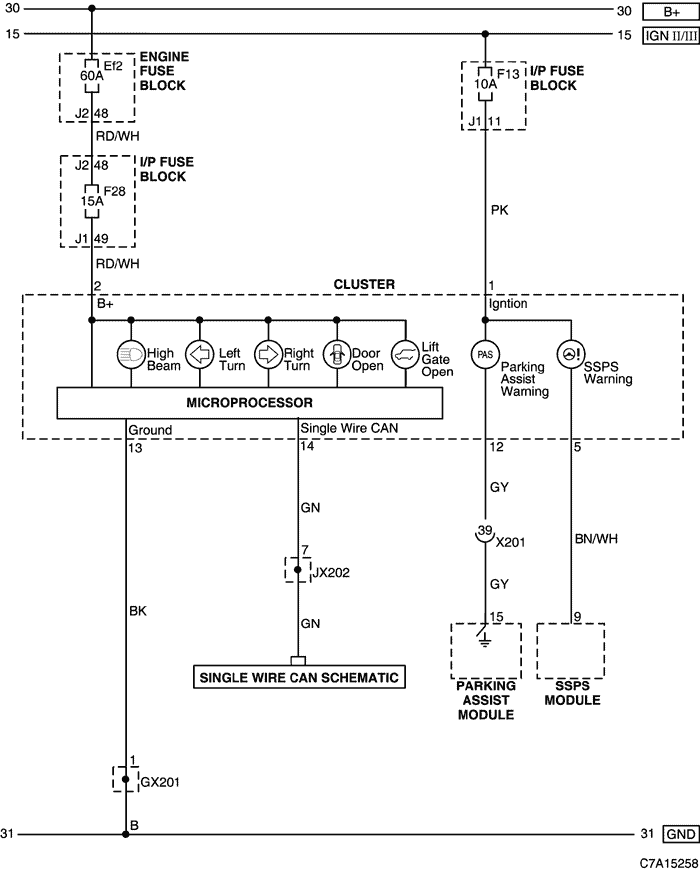

5) WARNING (SSPS, PARKING ASSIST) LAMP, INDICATOR (HIGH BEAM,,LEFT TURN, RIGHT TURN, DOOR OPEN, LIFT GATE OPEN) LAMP & ILLUMINATION CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X102 (12 Pin, Black) | Front JPR - Front | Behind the left side Head Lamp |
| GX201 (Black/Gray) | I/P | Behind Steering Column - Lower |

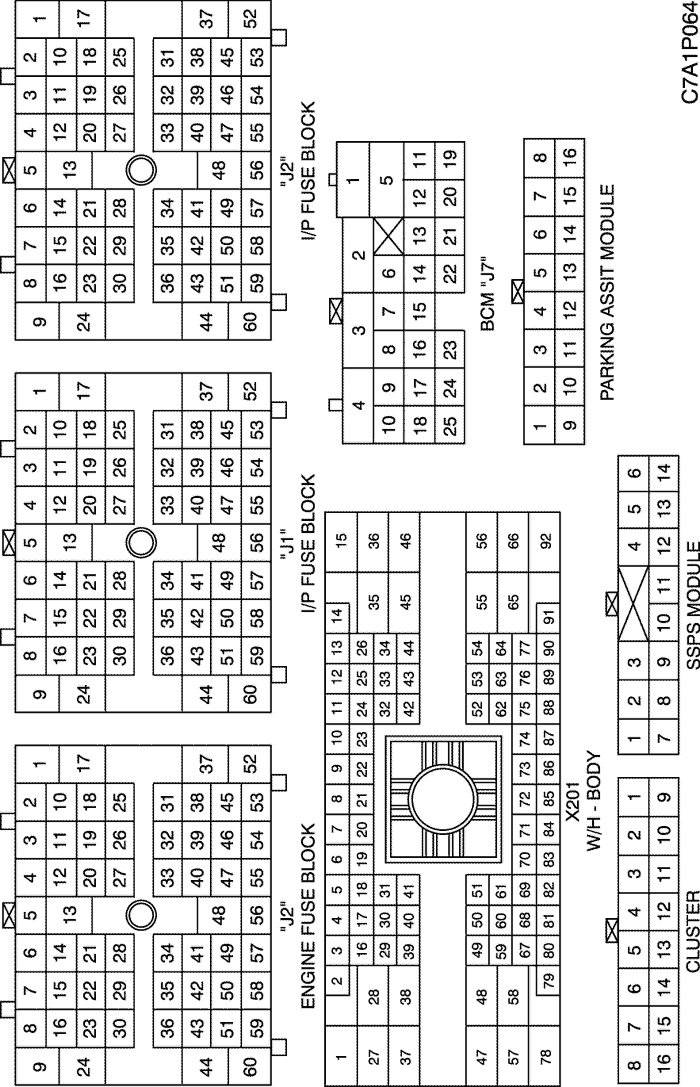

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
W/H BODY
d. SPLICE PACK
JX202 (BLACK/PINK)
