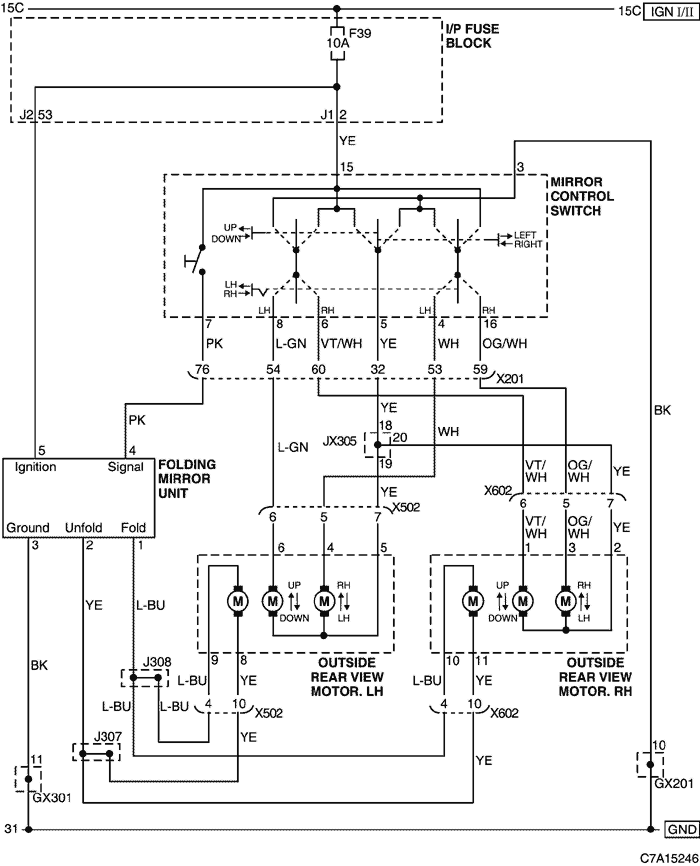

21. ELECTRIC OSRV (OUTSIDE REAR VIEW) MIRROR & FOLDING MIRROR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillarX204 (16 Pin, Black)
X502 (18 Pin, Colorless)Body - Front LH DoorUnder the left "A" Pillar
X602 (18 Pin, Colorless)Body - Front RH DoorUnder the right "A" Pillar
GX201 (Black/Gray)I/PBehind Steering Column - Lower
GX301 (Black/Gray)BodyUnder the right seat cushion

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H BODY

Display graphicTranslations of text in graphics


W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics


W/H FRONT DOOR

Display graphicTranslations of text in graphics
