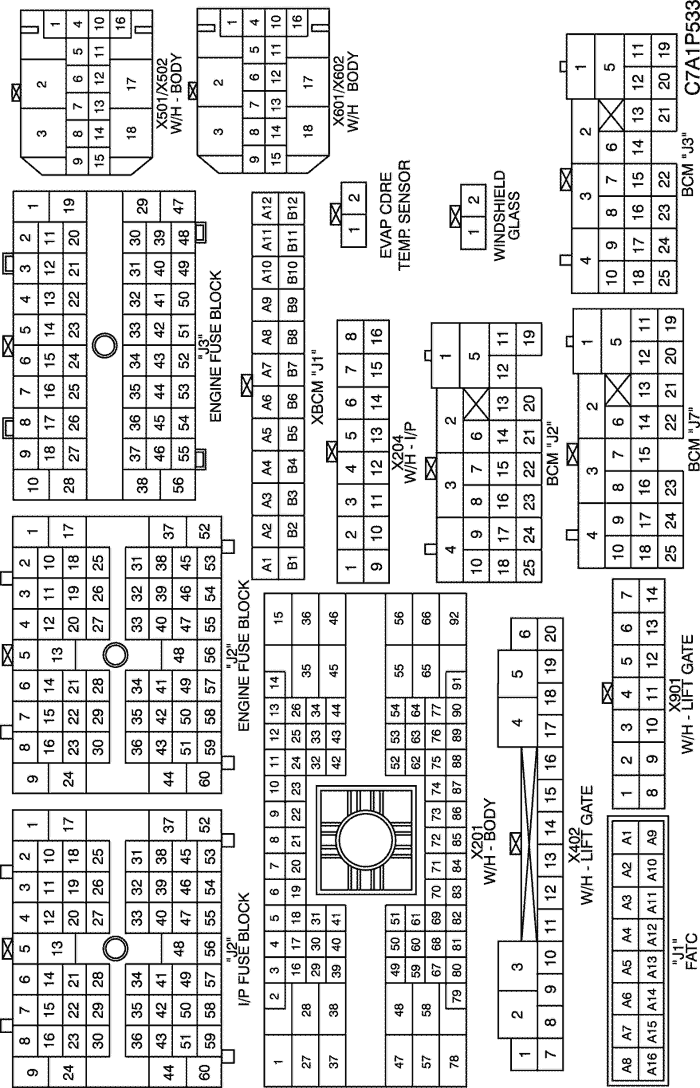

| X201 (92 Pin, Black) | Body - I.P | Below to the "A" pillarX204 (16 Pin, Black) |
| X204 (16 Pin, Black) | I.P - FATC | Behind the FATC |
| X402 (20 Pin, Colorless) | Lift Gate - Body | Behind the left "C" pillar |
| X502 (18 Pin, Colorless) | Body - Front LH Door | Under the left "A" Pillar |
| X602 (18 Pin, Colorless) | Body - Front RH Door | Under the right "A" Pillar |
| X901(14 Pin, Colorless) | Lift Gate - Lift Gate JPR | Behind the "2nd" Seat |
| Gx101 (Black/Gray) | Front | Behind the left HeadLamp |
| Gx301 (Black/Gray) | Body | Under the right seat cushion |
| Gx401 (Black/Gray) | Body | Right the luggage compartment |
