14. ILLUMINATION CIRCUIT

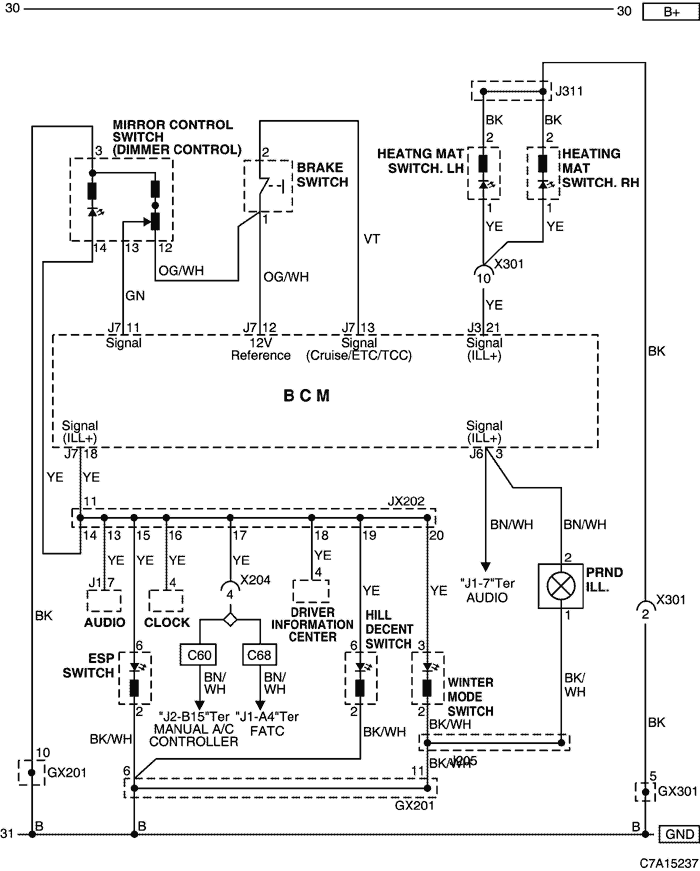

1) ILLUMINATION, DIMMER CONTROL SWITCH & HEATING MAT SWITCH CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X204 (16 Pin, Black) | I.P - FATC | Behind the FATC |
| X301 (12 Pin, Colorless) | Console - Body | Below the floor console |
| GX201 (Black/Gray) | I/P | Behind Steering Column - Lower |
| GX301 (Black/Gray) | Body | Under the right seat cushion |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
W/H CONSOLE
d. SPLICE PACK
JX202 (BLACK/PINK)

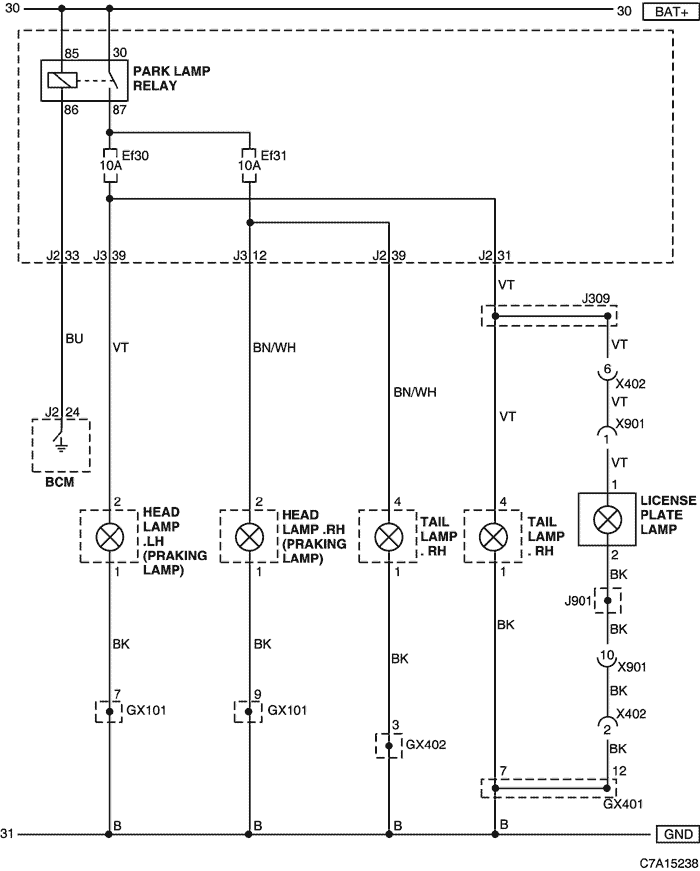

2) LAMP (LICENSE PLATE & FRONT/REAR PARKING) CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X402 (20 Pin, Colorless) | Lift Gate - Body | Behind the left "C" pillar |
| X901(14 Pin, Colorless) | Lift Gate - Lift Gate JPR | Behind the "2nd" Seat |
| GX101 (Black/Gray) | Front | Behind the left HeadLamp |
| GX102 (Black/Gray) | Front | Behind the right HeadLamp |
| GX401 (Black/Gray) | Body | Right the luggage compartment |
| GX402 (Black/Gray) | Body | Right the luggage compartment |

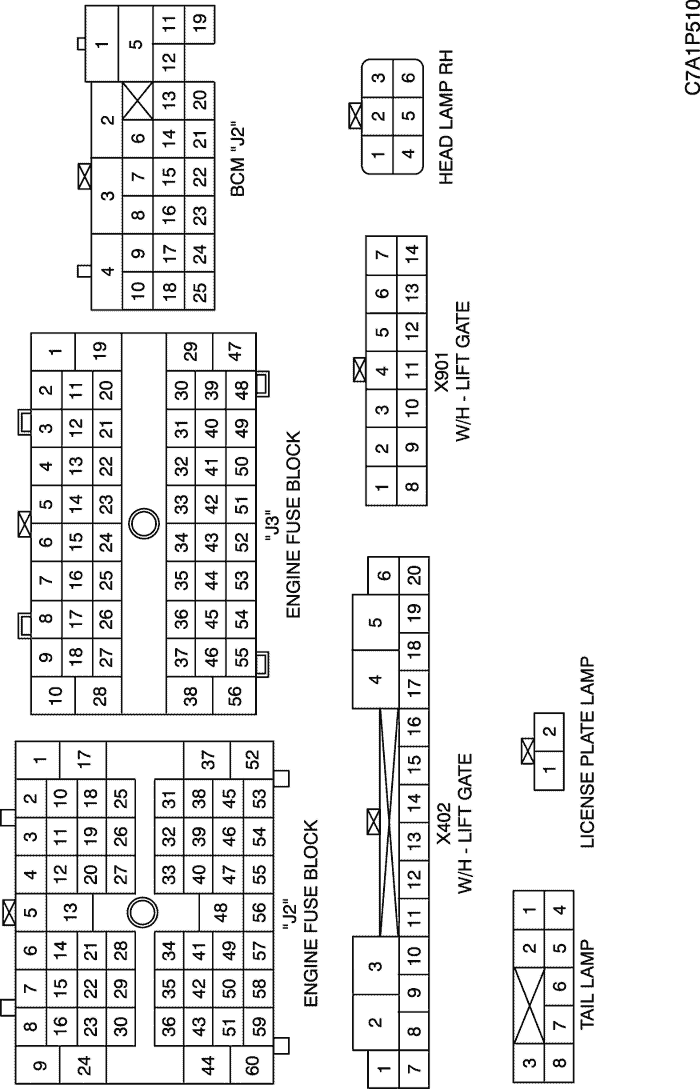

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H FRONT
W/H BODY
