13. HEAD LAMP SWITCH CIRCUIT

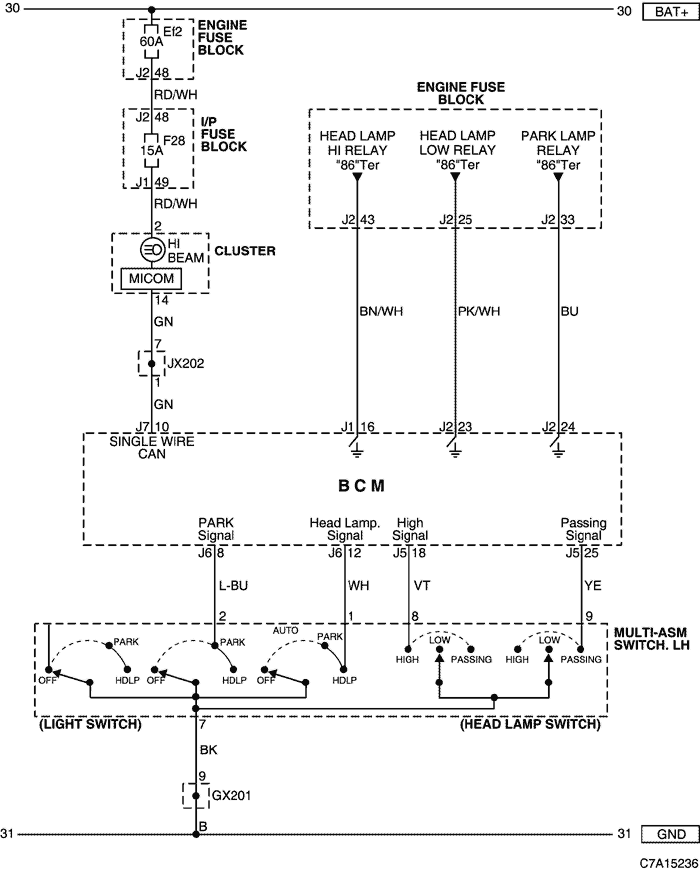

1) W/O AUTO LIGHT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| GX201 (Black/Gray) | I/P | Behind Steering Column - Lower |

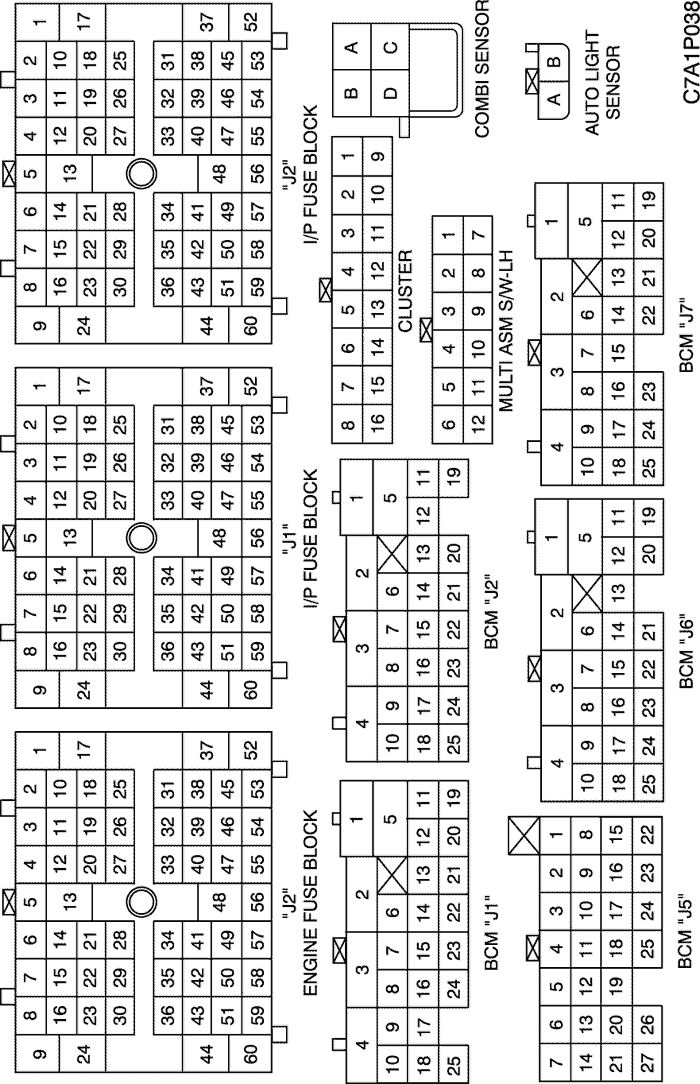

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H BODY
W/H INSTRUMENT PANEL
d. SPLICE PACK
JX202 (BLACK/PINK)

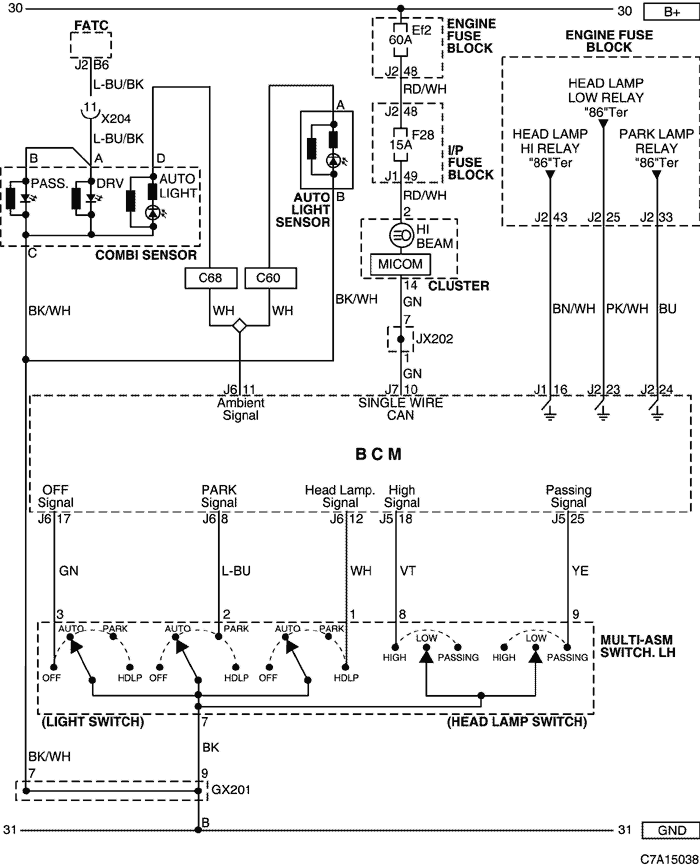

2) W/ AUTO LIGHT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X204 (16 Pin, Black) | I.P - FATC | Behind the FATC |
| GX201 (Black/Gray) | I/P | Behind Steering Column - Lower |

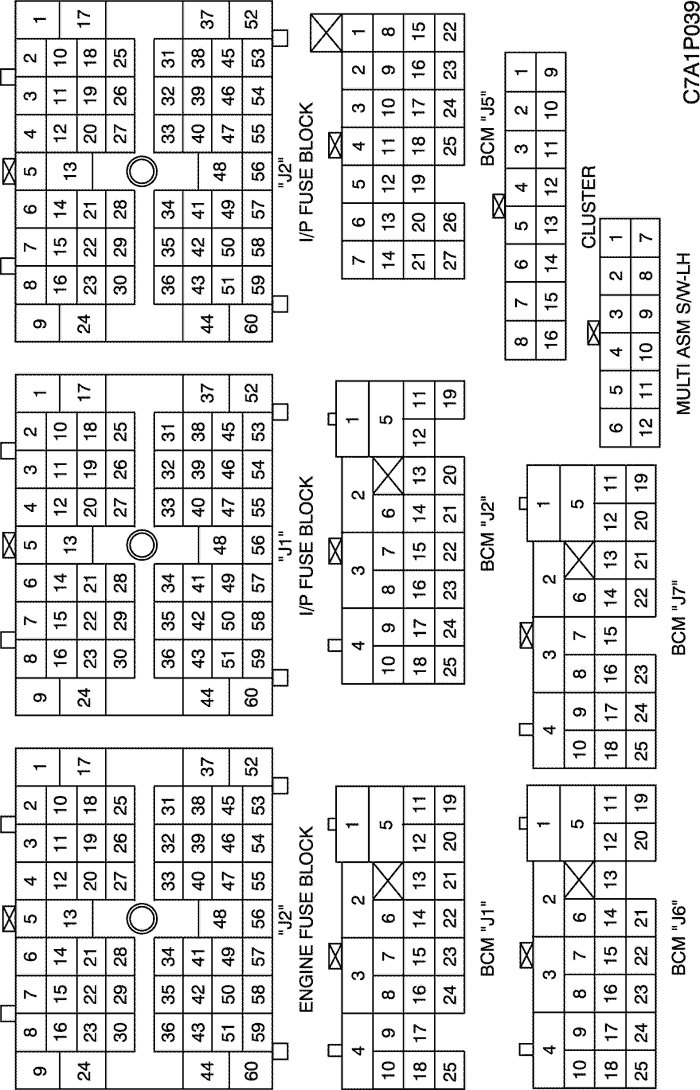

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
W/H BODY
d. SPLICE PACK
JX202 (BLACK/PINK)
