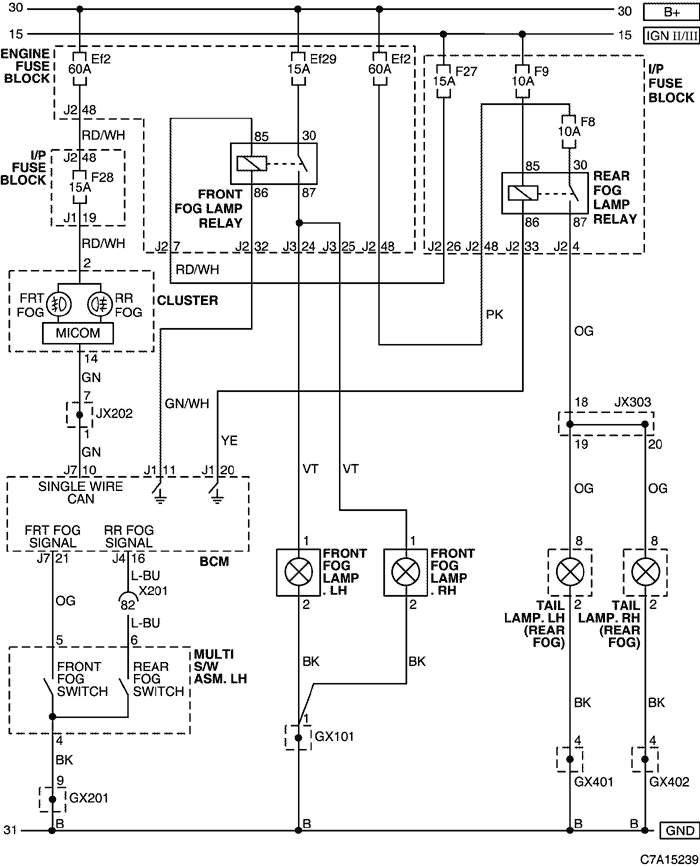

15. FRONT & REAR FOG LAMP CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X201 (92 Pin, Black) | Body - I.P | Below to the "A" pillar |
| GX101 (Black/Gray) | Front | Behind the left HeadLamp |
| GX102 (Black/Gray) | Front | Behind the right HeadLamp |
| GX201 (Black/Gray) | I/P | Behind Steering Column - Lower |
| GX401 (Black/Gray) | Body | Right the luggage compartment |
| GX402 (Black/Gray) | Body | Right the luggage compartment |

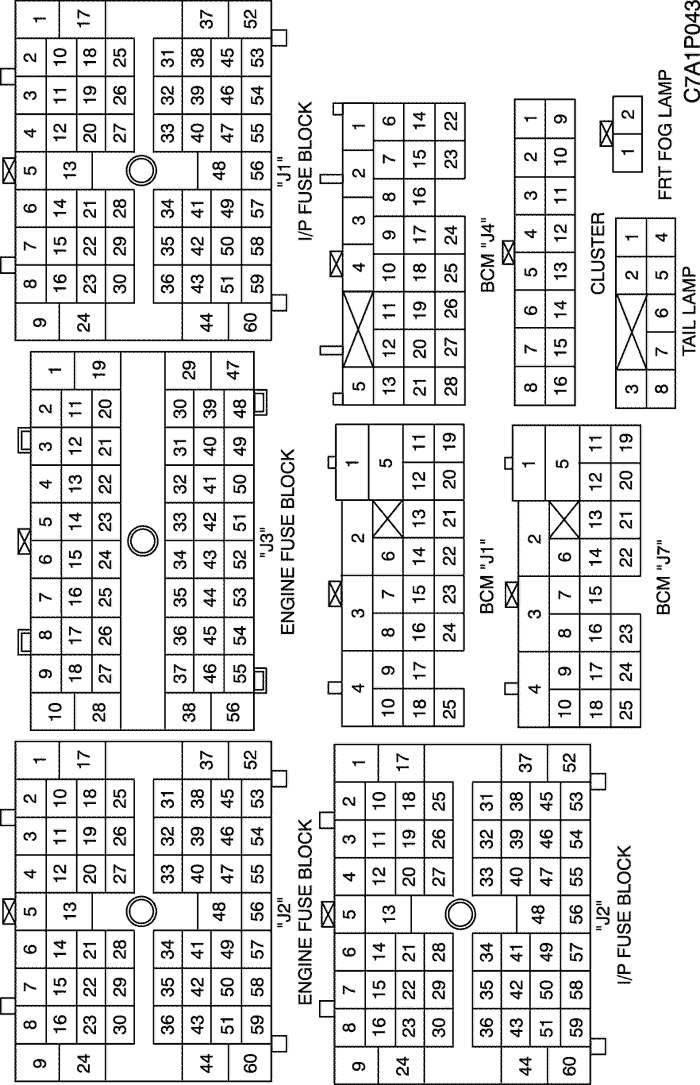

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
W/H FRONT
d. SPLICE PACK
JX202 (BLACK/PINK)
JX303 (BLACK/BROWN)
