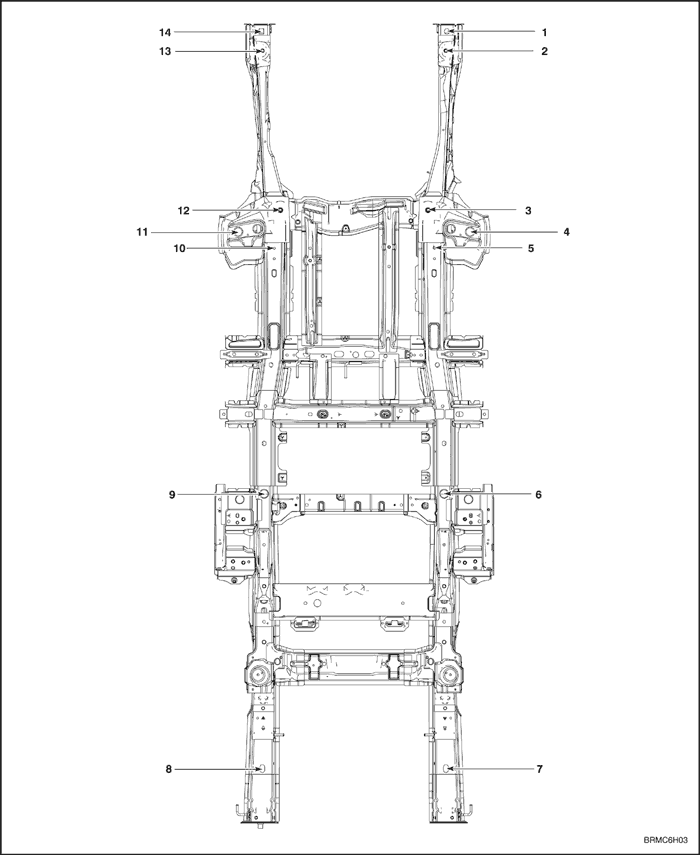

BODY DIMENSION

BODY DRAWING

UNDERBODY


BRMC6H03
Display graphicTranslations of text in graphics


.
Unit: mm(in)
Location
Diameter
Length = x
Width = y
Height = z
Point to Point
1
x
1162 (45.75)
-480 (18.90)
341 (13.43)
x
2
20 (0.79)
1261 (49.65)
-474 (18.66)
287 (11.30)
x
3
25 (0.98)
2081 (81.93)
-382 (15.04)
230 (9.06)
x
4
40 (1.57)
2192 (86.30)
-600 (23.62)
193 (7.60)
x
5
14 (0.55)
2275 (89.57)
-415 (16.34)
197 (7.56)
x
6
40 (1.57)
3538 (139.29)
-466 (18.35)
206 (8.11)
x
7
x
4955 (195.08)
-475 (18.70)
404 (15.91)
x
8
x
4955 (195.08)
475 (18.70)
404 (15.91)
x
9
40 (1.57)
3538 (139.29)
466 (18.35)
206 (8.11)
x
10
14 (0.55)
2275 (89.57)
415 (16.34)
197 (7.56)
x
11
40 (1.57)
2192 (86.30)
600 (23.62)
193 (7.60)
x
12
25 (0.98)
2081 (81.93)
382 (15.04)
230 (9.06)
x
13
20 (0.79)
1261 (49.65)
474 (18.66)
287 (11.30)
x
14
x
1162 (45.75)
480 (18.90)
341 (13.43)
x
1 to 5
x
x
x
x
1124 (44.25)
1 to 7
x
x
x
x
3794 (149.37)
1 to 10
x
x
x
x
1435 (56.50)
2 to 12
x
x
x
x
1187 (46.73)
3 to 14
x
x
x
x
1266 (49.84)
4 to 6
x
x
x
x
1353 (53.27)
4 to 9
x
x
x
x
1717 (67.60)
5 to 9
x
x
x
x
1540 (60.63)
5 to 14
x
x
x
x
1126 (44.33)
6 to 7
x
x
x
x
1431 (56.34)
6 to 8
x
x
x
x
1712 (67.40)
6 to 10
x
x
x
x
1540 (60.63)
6 to 11
x
x
x
x
1717 (67.60)
7 to 9
x
x
x
x
1712 (67.40)
8 to 9
x
x
x
x
1431 (56.34)
8 to 14
x
x
x
x
3794 (149.37)
9 to 11
x
x
x
x
1353 (53.27)
10 to 14
x
x
x
x
1124 (44.25)

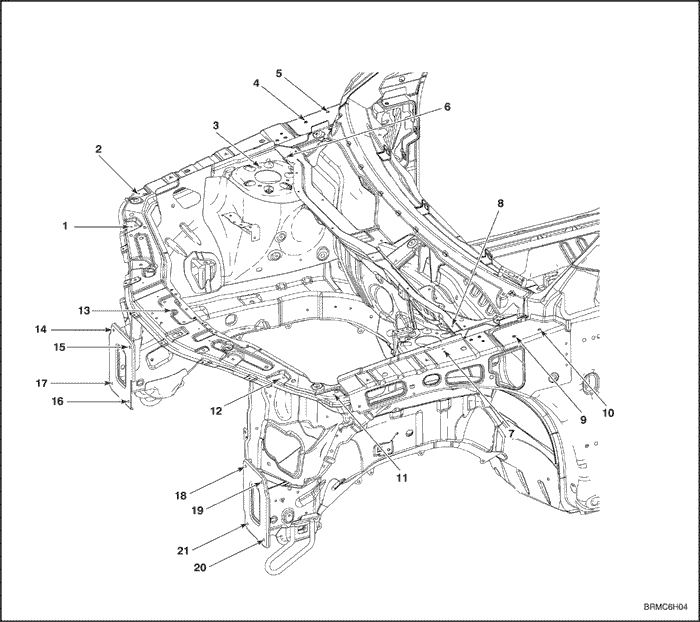

ENGINE ROOM


BRMC6H04
Display graphicTranslations of text in graphics


.
Unit: mm(in)
Location
Diameter
Length = x
Width = y
Height = z
Point to Point
1
7 (0.28)
1187 (46.73)
540 (21.26)
904 (35.59)
x
2
7 (0.28)
1299 (51.14)
713 (28.07)
908 (35.75)
x
3
12 (0.47)
1698 (66.85)
648 (25.51)
934 (36.77)
x
4
11 (0.43)
1919 (75.55)
760 (29.92)
987 (38.86)
x
5
11 (0.43)
2003 (78.86)
773 (30.43)
996 (39.21)
x
6
6 (0.24)
1776 (89.92)
600 (23.62)
977 (14.84)
x
7
12 (0.47)
1698 (66.85)
-648 (25.51)
934 (36.77)
x
8
6 (0.24)
1776 (89.92)
-600 (23.62)
977 (14.84)
x
9
11 (0.43)
1919 (75.55)
-760 (29.92)
987 (38.86)
x
10
11 (0.43)
2003 (78.86)
-773 (30.43)
996 (39.21)
x
11
7 (0.28)
1299 (51.14)
-713 (28.07)
908 (35.75)
x
12
7 (0.28)
1187 (46.73)
-540 (21.26)
904 (35.59)
x
13
7 (0.28)
1071 (42.17)
0
903 (35.55)
x
14
9 (0.35)
1122 (44.17)
540 (21.26)
533 (20.98)
x
15
9 (0.35)
1122 (44.17)
423 (16.65)
531 (20.91)
x
16
9 (0.35)
1122 (44.17)
434 (17.09)
320 (12.60)
x
17
9 (0.35)
1122 (44.17)
554 (21.81)
324 (12.76)
x
18
9 (0.35)
1122 (44.17)
-423 (16.65)
531 (20.91)
x
19
9 (0.35)
1122 (44.17)
-540 (21.26)
533 (20.98)
x
20
9 (0.35)
1122 (44.17)
-554 (21.81)
324 (12.76)
x
21
9 (0.35)
1122 (44.17)
-434 (17.09)
320 (12.60)
x
2 to 9
x
x
x
x
1600 (62.99)
2 to 11
x
x
x
x
1426 (56.14)
4 to 11
x
x
x
x
1600 (62.99)
14 to 19
x
x
x
x
1080 (42.52)
15 to 18
x
x
x
x
846 (33.31)
16 to 21
x
x
x
x
868 (34.17)

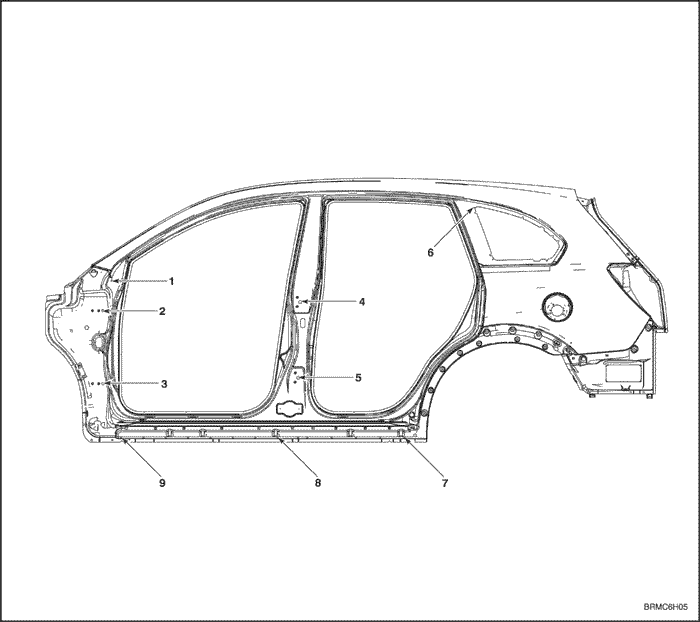

SIDE OUTER


BRMC6H05
Display graphicTranslations of text in graphics


.
Unit: mm(in)
Location
Diameter
Length = x
Width = y
Height = z
Point to Point
1
9 (0.35)
2251 (88.62)
-755 (29.72)
1095 (43.11)
x
2
13 (0.51)
2203 (86.73)
-801 (31.54)
934 (36.77)
x
3
13 (0.51)
2203 (86.73)
-815 (32.09)
542 (21.34)
x
4
16 (0.63)
3261 (128.39)
-796 (32.34)
980 (38.58)
x
5
16 (0.63)
3251 (127.99)
-796 (32.34)
573 (22.56)
x
6
5 (0.20)
4194 (165.12)
-639 (25.16)
1487 (58.54)
x
7
10 (0.39)
3820 (150.39)
-745 (29.33)
251 (9.88)
x
8
10 (0.39)
3140 (123.62)
-745 (29.33)
251 (9.88)
x
9
10 (0.39)
2300 (90.55)
-745 (29.33)
251 (9.88)
x
1 to 6
x
x
x
x
1956 (77.01)
2 to 4
x
x
x
x
1059 (41.69)
2 to 3
x
x
x
x
392 (15.43)
2 to 5
x
x
x
x
1108 (43.62)
3 to 4
x
x
x
x
1145 (45.08)
3 to 5
x
x
x
x
1049 (41.30)
4 to 5
x
x
x
x
407 (16.02)
5 to 6
x
x
x
x
1323 (52.09)
7 to 9
x
x
x
x
1520 (59.84)
8 to 9
x
x
x
x
840 (33.07)

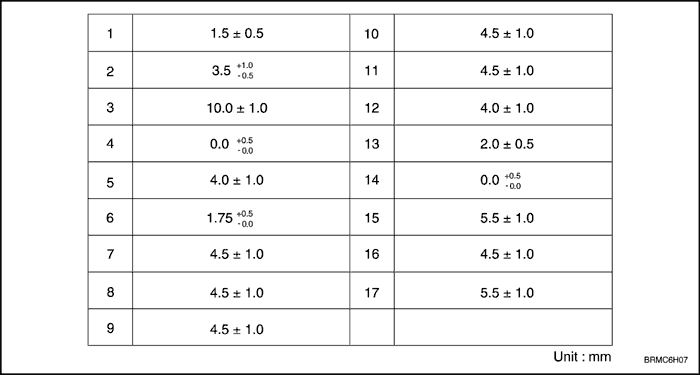

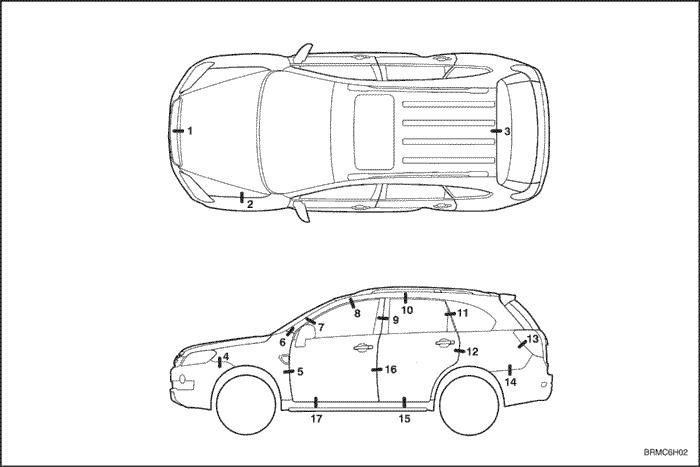

GAP CHART


BRMC6H01
Display graphicTranslations of text in graphics



BRMC6H06
Display graphicTranslations of text in graphics



BRMC6H02
Display graphicTranslations of text in graphics



BRMC6H07
Display graphicTranslations of text in graphics
