Service Manual2007 Captiva BODY & ACCESSORIES (DOORS)

SECTION 9P

BODY & ACCESSORIES (DOORS)

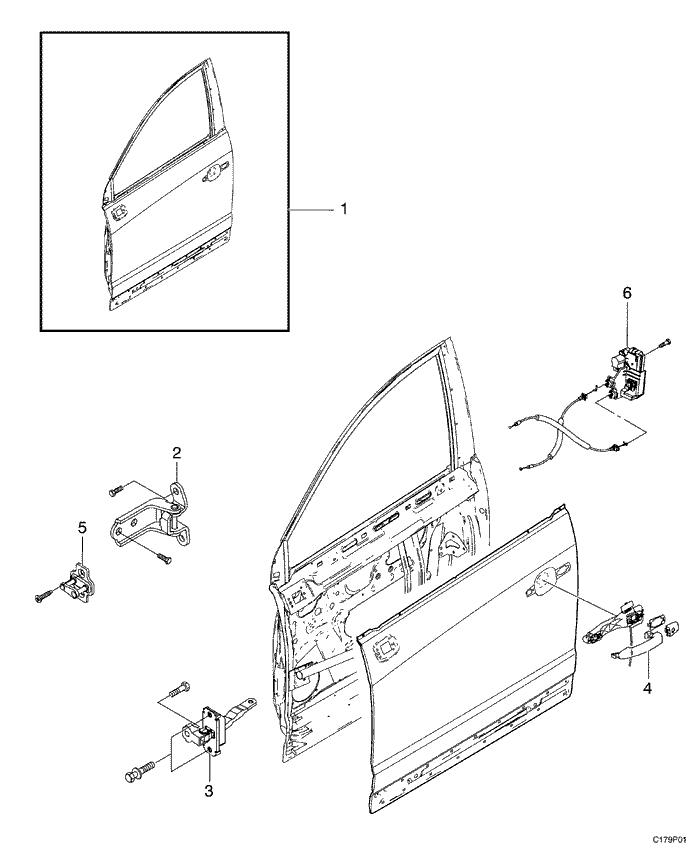

DOORS - FRONT DOOR & LOCK (961A)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. DOOR ASSEMBLY, FRONT - REPLACE	.	.	.
	Right	9610100	1.8	1.8
	Left	9610200	1.8	1.8
	. DOOR ASSEMBLY, FRONT - ALIGN	.	.	.
	Right	9610400	0.4	0.4
	Left	9610500	0.4	0.4
2	. HINGE, FRONT DOOR - REPLACE	.	.	.
	Right Upper	9610700	1.4	1.4
	Left Upper	9610800	1.4	1.4
	Right Lower	9610900	1.4	1.4
	Left Lower	9611100	1.4	1.4
	Both Right	9611200	1.5	1.5
	Both Left	9611300	1.5	1.5
3	. LINK, FRONT DOOR HOLD OPEN - REPLACE	.	.	.
	Right	9611500	0.5	0.5
	Left	9611600	0.5	0.5
4	. HANDLE, FRONT DOOR OUTSIDE - REPLACE	.	.	.
	Right	9612100	0.5	0.5
	Left	9612200	0.5	0.5
5	. STRIKER, FRONT DOOR LOCK - REPLACE	.	.	.
	Right	9612500	0.2	0.2
	Left	9612600	0.2	0.2
6	. LATCH, FRONT DOOR - REPLACE	.	.	.
	Right	9612800	0.6	0.6
	Left	9612900	0.6	0.6
	Both	9613000	1.1	1.1

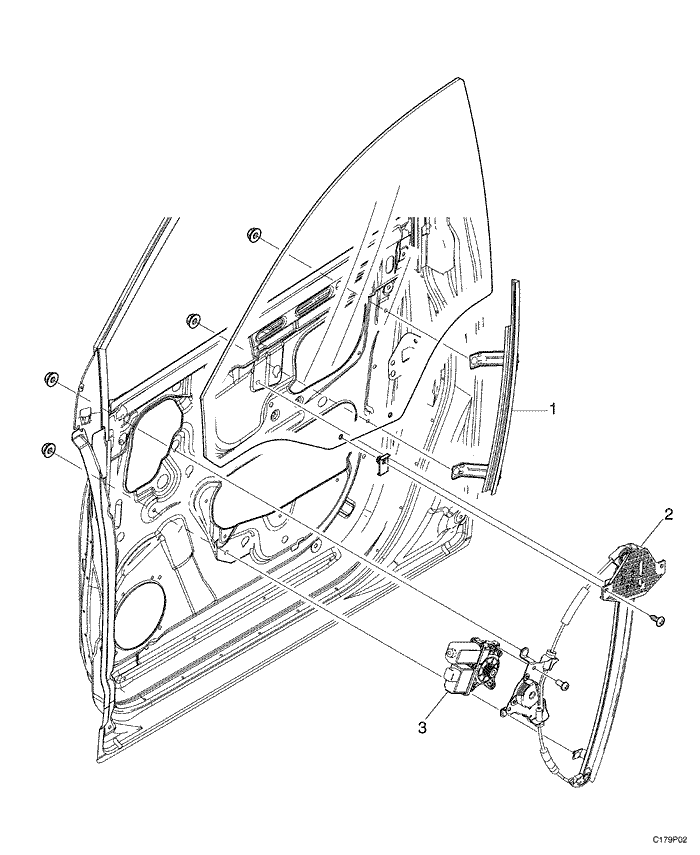

DOORS - FRONT WINDOW LIFTER (961B)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. RAIL, FRONT DOOR GUIDE - REPLACE	.	.	.
	Right	9615100	0.5	0.5
	Left	9615200	0.5	0.5
2	. REGULATOR, FRONT DOOR WINDOW POWER - REPLACE	.	.	.
	Right	9616400	0.6	0.6
	Left	9616500	0.6	0.6
3	. MOTOR, FRONT DOOR WINDOW - REPLACE	.	.	.
	Right	9616700	0.6	0.6
	Left	9616800	0.6	0.6

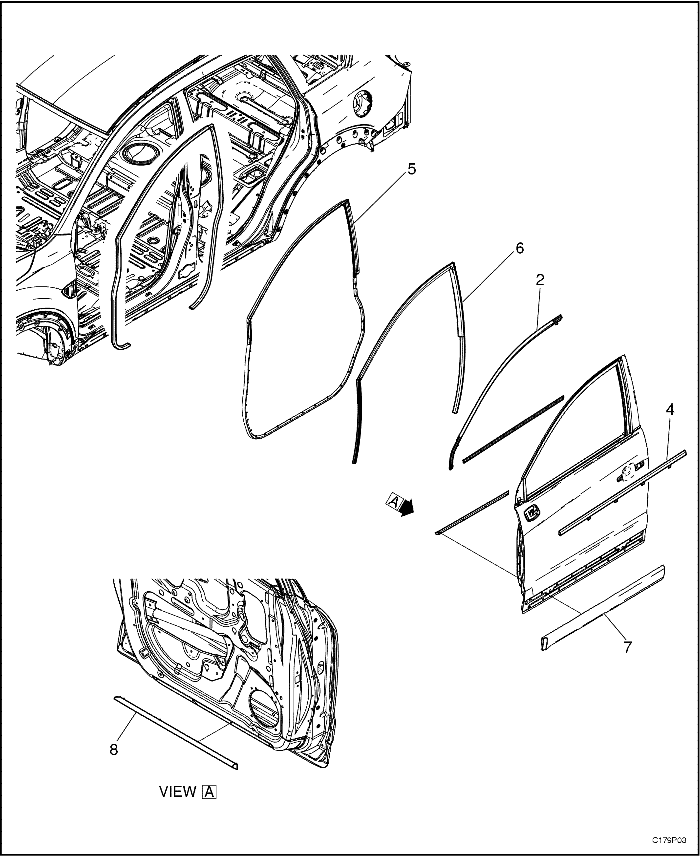

DOORS - FRONT WEATHER STRIP (961C)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. WEATHER STRIP, FRONT DOOR - REPLACE	.	.	.
	Right	9618100	0.4	0.4
	Left	9618200	0.4	0.4
2	. SECOND WEATHER STRIP, FRONT DOOR - REPLACE	.	.	.
	Right	9618300	0.8	0.8
	Left	9618400	0.8	0.8
3	. MOLDING, FRONT DOOR OUTER - REPLACE	.	.	.
	Right	9618600	0.3	0.3
	Left	9618700	0.3	0.3
4	. WEATHER STRIP, FRONT DOOR GLASS - REPLACE	.	.	.
	Right	9618800	0.6	0.6
	Left	9618900	0.6	0.6
5	. GLASS RUN, FRONT DOOR - REPLACE	.	.	.
	Right	9619100	0.6	0.6
	Left	9619200	0.6	0.6
6	. MOULDING, FRONT SIDE DOOR - REPLACE	9619300	0.3	0.3
7	. WEATHER STRIP, FRONT DOOR, LOWER - REPLACE	.	.	.
	Right	9619400	0.2	0.2
	Left	9619410	0.2	0.2

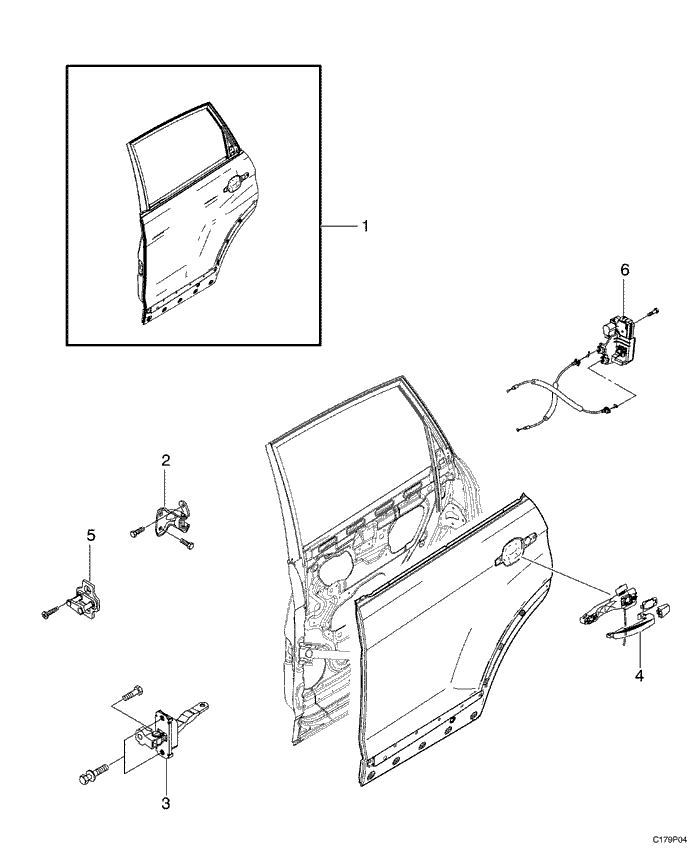

DOORS - REAR DOOR & LOCK (963A)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. DOOR ASSEMBLY, REAR - REPLACE	.	.	.
	Right	9630100	1.7	1.7
	Left	9630200	1.7	1.7
	. DOOR ASSEMBLY, REAR - ALIGN	.	.	.
	Right	9630400	0.4	0.4
	Left	9630500	0.4	0.4
2	. HINGE, FRONT DOOR - REPLACE	.	.	.
	Right Upper	9630700	0.3	0.3
	Left Upper	9630800	0.3	0.3
	Right Lower	9630900	0.3	0.3
	Left Lower	9631100	0.3	0.3
	Both Right	9631200	0.4	0.4
	Both Left	9631300	0.4	0.4
3	. LINK, FRONT DOOR HOLD OPEN - REPLACE	.	.	.
	Right	9631500	0.5	0.5
	Left	9631600	0.5	0.5
4	. HANDLE, FRONT DOOR OUTSIDE - REPLACE	.	.	.
	Right	9631800	0.5	0.5
	Left	9631900	0.5	0.5
5	. STRIKER, FRONT DOOR LOCK - REPLACE	.	.	.
	Right	9632100	0.2	0.2
	Left	9632200	0.2	0.2
6	. LATCH, FRONT DOOR - R&R OR REPLACE	.	.	.
	Right	9632400	0.6	0.6
	Left	9632500	0.6	0.6
	Both	9632600	1.1	1.1

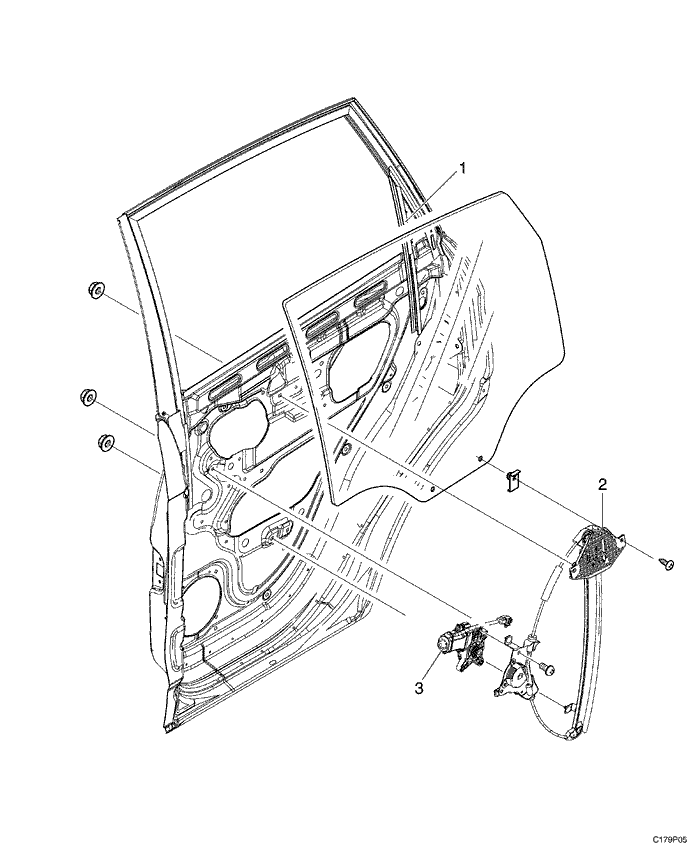

DOORS - REAR WINDOW LIFTER (963B)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. REGULATOR, REAR DOOR WINDOW POWER - REPLACE	.	.	.
	Right	9636300	0.6	0.6
	Left	9636400	0.6	0.6
2	. MOTOR, REAR DOOR WINDOW - REPLACE	.	.	.
	Right	9636600	0.6	0.6
	Left	9636700	0.6	0.6

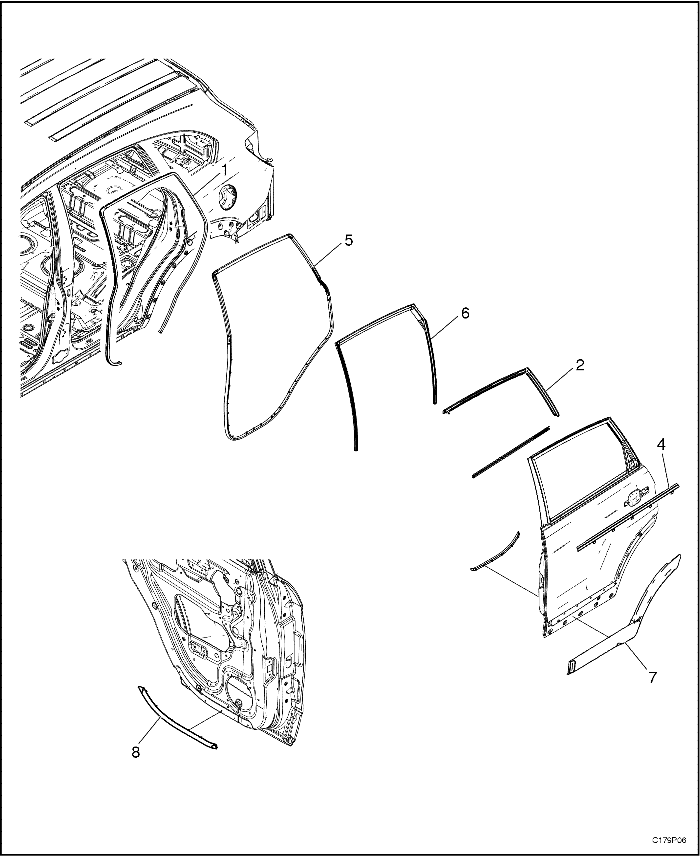

DOORS - REAR WEATHER STRIP (963C)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. WEATHERSTRIP, REAR DOOR - REPLACE	.	.	.
	Right	9638100	0.4	0.4
	Left	9638200	0.4	0.4
2	. SECOND WEATHER STRIP, REAR DOOR - REPLACE	.	.	.
	Right	9638300	0.8	0.8
	Left	9638400	0.8	0.8
3	. GARNISH, REAR DOOR - REPLACE	.	.	.
	Right	9638500	0.2	0.2
	Left	9638510	0.2	0.2
4	. MOLDING, REAR DOOR OUTER - REPLACE	.	.	.
	Right	9638600	0.3	0.3
	Left	9638700	0.3	0.3
5	. WEATHER STRIP, REAR DOOR GLASS - REPLACE	.	.	.
	Right	9638800	0.6	0.6
	Left	9638900	0.6	0.6
6	. GLASS RUN, REAR DOOR - REPLACE	.	.	.
	Right	9639100	0.7	0.7
	Left	9639200	0.7	0.7
7	. MOLDING, REAR SIDE DOOR - REPLACE	9639300	0.3	0.3
8	. WEATHER STRIP, REAR DOOR, LOWER - REPLACE	.	.	.
	Right	9639400	0.2	0.2
	Left	9639410	0.2	0.2

DOORS - FUEL FILLER LOCK & QUARTER WINDOW LOCK (966)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. DOOR, FUEL FILLER - REPLACE	9660100	0.2	0.2
2	. CAP, FUEL TANK - REPLACE	9660300	0.2	0.2
3	. ACTUATOR, FUEL FILLER DOOR - REPLACE	9661900	0.6	0.6

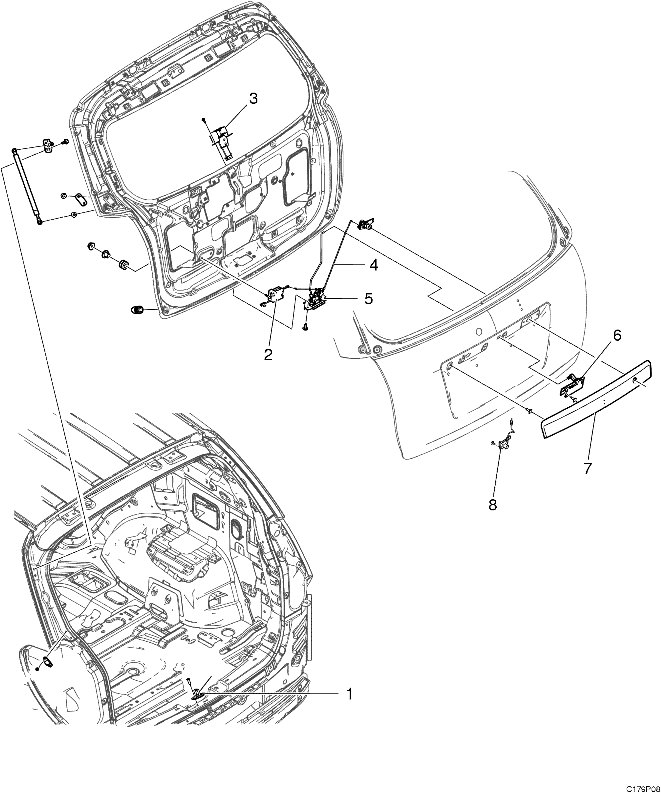

DOORS - TRUNK LID LOCK & TAILGATE LOCK (967)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. STRIKER, REAR COMPARTMENT LID LOCK - REPLACE	9670300	0.2	0.2
2	. ACTUATOR, TAILGATE - REPLACE	9671100	0.4	0.4
3	. LATCH, L/GATE WINDOW - REPLACE	9671400	0.4	-
4	. ROD, TAILGATE LOCK - REPLACE	9671500	0.4	0.4
5	. LATCH, L/GATE - REPLACE	9671600	0.5	0.5
6	. HANDLE A RELEASE T/GATE - REPLACE	9671700	0.5	-
7	. HANDLE A LIFTGATE - REPLACE	9671710	0.5	0.5
8	. CAMERA, REAR VIEW - REPLACE	9671800	0.5	-

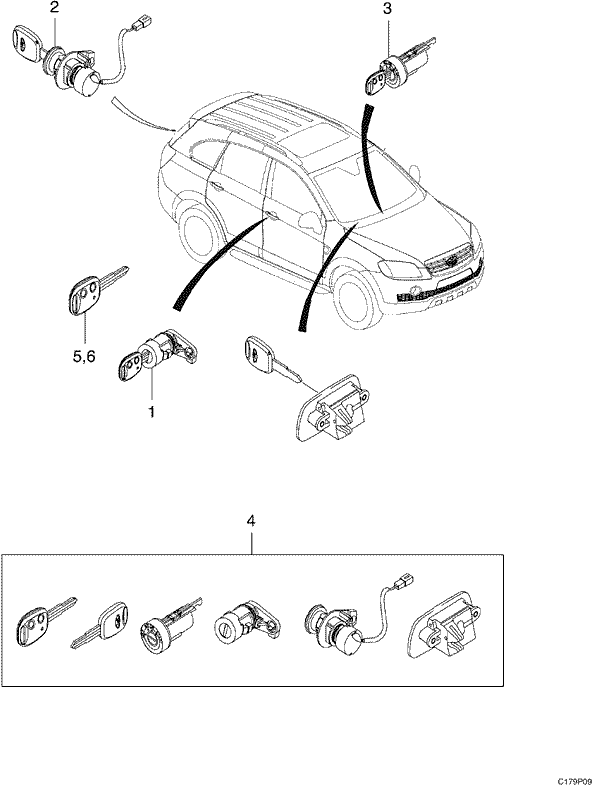

DOORS - CAR LOCK (968)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. CYLINDER, FRONT DOOR LOCK - REPLACE	.	.	.
	Right	9680100	0.5	0.5
	Left	9680200	0.5	0.5
2	. CYLINDER, TAILGATE LOCK - REPLACE	9680400	0.4	0.4
3	. CYLINDER, IGNITION LOCK - REPLACE	9680600	0.5	0.5
4	. CAR LOCK SET - REPLACE	9680700	1.8	1.8
5	. BLANK KEY - CUTTING	9681100	0.2	0.2
	A - Immo. Coding	968110A	0.2	0.2
	B - Immo. or/and RKE Coding	968110B	0.2	0.2
	C - RKE Coding	968110C	0.1	0.1
6	. KEY OR TRANSMITTER - REPLACE	9681600	0.1	0.1
	A - Immo. or/and RKE Coding	968160A	0.2	0.2
	B - RKE Coding	968160B	0.1	0.1
