SECTION 2E

SUSPENSION (TIRES & WHEEL)

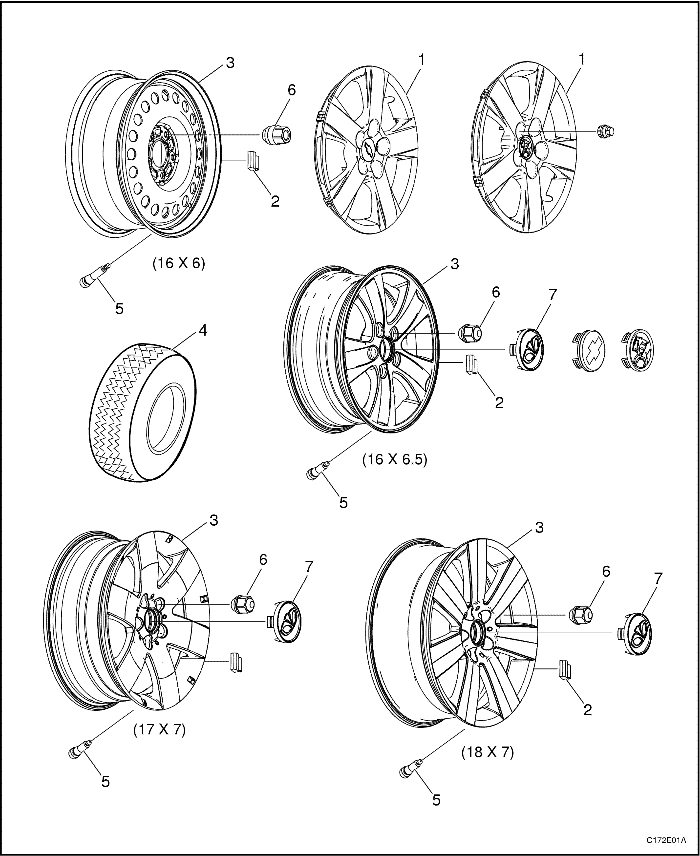

C172E01A
Display graphicTranslations of text in graphics


TIRES & WHEEL - WHEELS & WHEEL COVER (241)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
C100
C105
1
COVER, WHEEL (FRONT) - REPLACE
2410100
0.2
0.2
COVER, WHEEL (REAR) - REPLACE
2410300
0.2
0.2
COVER, WHEEL (ALL) - REPLACE
2410500
0.2
0.2
2
WHEEL - BALANCE
.
.
.
One
2410700
0.4
0.4
Two
2410800
0.7
0.7
Four
2410900
1.2
1.2
3
WHEEL - REPLACE
.
.
.
One
2411100
0.6
0.6
Two
2411110
1.0
1.0
Three
2411120
1.4
1.4
Four
2411130
1.8
1.8
4
TIRE - REPLACE
.
.
.
One
2411300
0.6
0.6
Two
2411310
1.0
1.0
Three
2411320
1.4
1.4
Four
2411330
1.8
1.8
5
STEM, TIRE VALVE - REPLACE
.
.
.
One
2411500
0.4
0.4
Two
2411510
0.6
0.6
Three
2411520
0.8
0.8
Four
2411530
1.0
1.0
6
NUT, WHEEL - REPLACE
2411700
0.2
0.2
7
CAP, HUB - REPLACE
2412900
0.2
0.2

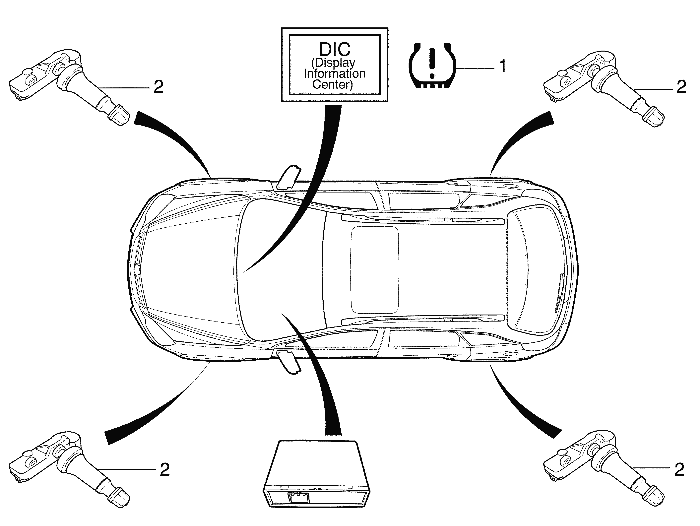

G162E03
Display graphicTranslations of text in graphics


TPMS - TIRE PRESSURE MONITORING SYSTEM (242)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
C100
C105
1
LIGH, LOW TIRE PRESSURE WARNING - DAGNOSIS TIME
2421000
—
0.2
2
SENSOR, LOW TIRE PRESSURE WARNING SENSOR - REPLACE
.
.
.
INC : ID REGISTRATION
.
.
.
One
2421100
—
0.8
Two
2421110
—
1.2
Three
2421120
—
1.6
Four
2421130
—
2.0
