Captiva | ||||||||
|
| |||||||
NO. | OPERATION DESCRIPTION | OPERATION CODE | C | ||
2.0DSL | 2.4D | 3.2D | |||

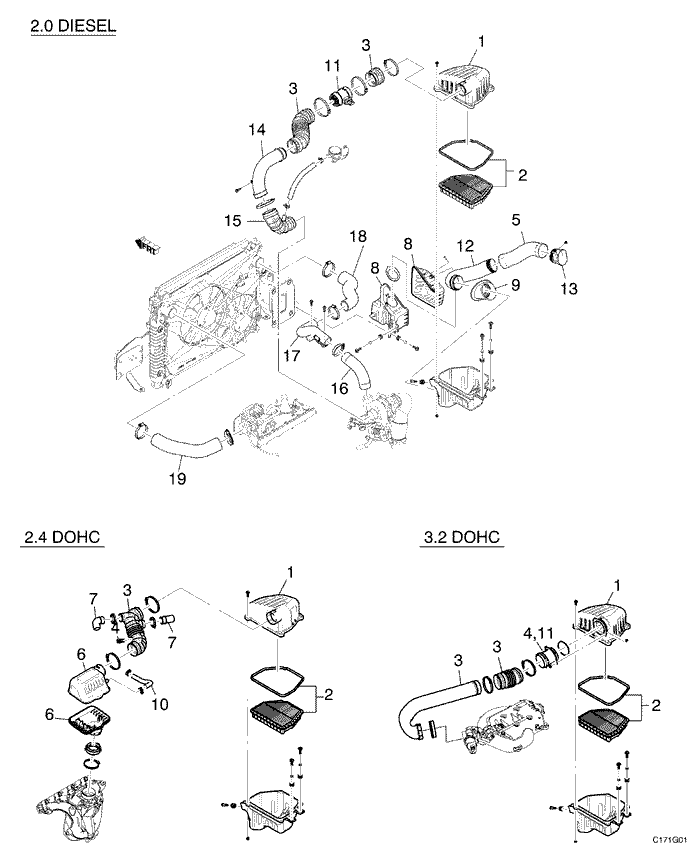

1 | AIR CLEANER - REPLACE | 1910300 | 0.3 | 0.3 | 0.3 |
2 | FILTER, AIR CLEANER - REPLACE | 1910500 | 0.2 | 0.2 | 0.2 |
3 | DUCT AND/OR HOSE, OUTLET AIR - REPLACE | 1910700 | 0.2 | 0.2 | 0.2 |
4 | SENSOR, MAT - REPLACE | 1910900 | — | 0.2 | 0.4 |
5 | DUCT, LOWER INTERNAL AIR - REPLACE | 1911200 | 0.4 | 0.4 | 0.4 |
6 | RESONATOR, AIR CLEANER FRONT - REPLACE | 1911400 | — | 0.2 | — |
7 | RESONATOR, AUXILIARY - REPLACE | 1911500 | — | 0.2 | — |
8 | RESONATOR, AIR CLEANER REAR - REPLACE | 1911800 | 0.7 | 0.7 | 0.7 |
9 | SEAL, AIR CLEANER RESONATOR DUCT - REPLACE | 1911900 | 0.3 | 0.3 | 0.3 |
10 | HOSE, BREATHER - REPLACE | 1912900 | — | 0.2 | — |
11 | SENSOR, MAF - REPLACE | 1913100 | 0.2 | — | 0.2 |
12 | DUCT, AIR CLEANER RESONATOR - REPLACE | 1913200 | 0.4 | 0.4 | 0.4 |
13 | SNORKEL, AIR CLEANER - REPLACE | 1913300 | 0.4 | 0.4 | 0.4 |
14 | DUCT, TURBO INLET - REPLACE | 1913400 | 0.3 | — | — |
15 | DUCT, CHARGING AIR INLET - REPLACE | 1913500 | 0.4 | — | — |
16 | DUCT, CHARGING AIR OUTLET - REPLACE | 1913600 | 0.3 | — | — |
17 | PIPE, CHARGING AIR OUTLET DUCK - REPLACE | 1913700 | 0.3 | — | — |
18 | DUCT, CHARGING AIR OUTLET FRONT - REPLACE | 1913800 | 0.4 | — | — |
19 | DUCT, CHARGING AIR OUTLET REAR - REPLACE | 1913900 | 0.4 | — | — |
NO. | OPERATION DESCRIPTION | OPERATION CODE | C | ||
2.0DSL | 2.4D | 3.2D | |||

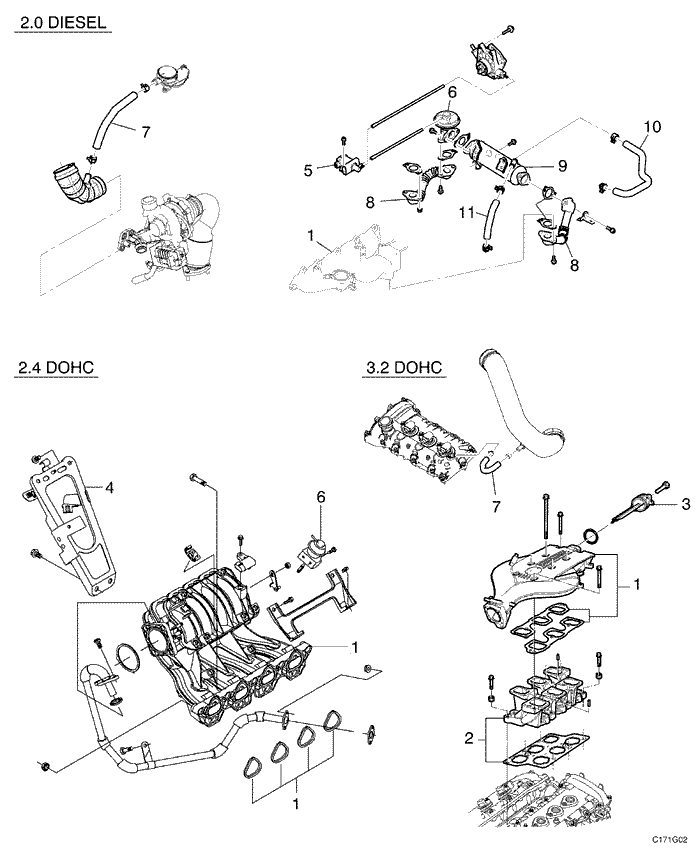

1 | MANIFOLD AND/OR GASKET, INTAKE - REPLACE | 1930200 | 1.8 | 1.4 | 0.4 |
2 | BLOCK AND/OR GASKET, MANIFOLD - REPLACE | 1930300 | — | — | 0.6 |
3 | VALVE AND/OR SEAL, INTAKE MANIFOLD TUNING CONTROL - REPLACE | 1930310 | — | — | 0.3 |
4 | BRACE, INTAKE MANIFOLD - REPLACE | 1930500 | — | 0.2 | — |
5 | SOLENOID, EGR - REPLACE | 1930600 | 0.3 | — | — |
6 | VALVE AND/OR GASKET, EGR - REPLACE | 1930700 | 0.6 | 0.3 | — |
7 | HOSE AND/OR VALVE, PCV - REPLACE | 1932600 | 0.3 | — | 0.3 |
8 | PIPE AND/OR GASKET, EGR - REPLACE | . | . | . | . |
EGR cooler to intake manifold | 1933100 | 0.5 | — | — | |
EGR to exhaust manifold | 1933200 | 1.5 | — | — | |
9 | COOLER, EGR - REPLACE | 1933300 | 2.0 | — | — |
10 | HOSE, EGR COOLING FEED - REPLACE | 1933400 | 0.5 | — | — |
11 | HOSE, EGR COOLING RETURN - REPLACE | 1933500 | 0.4 | — | — |
NO. | OPERATION DESCRIPTION | OPERATION CODE | C | ||
2.0DSL | 2.4D | 3.2D | |||

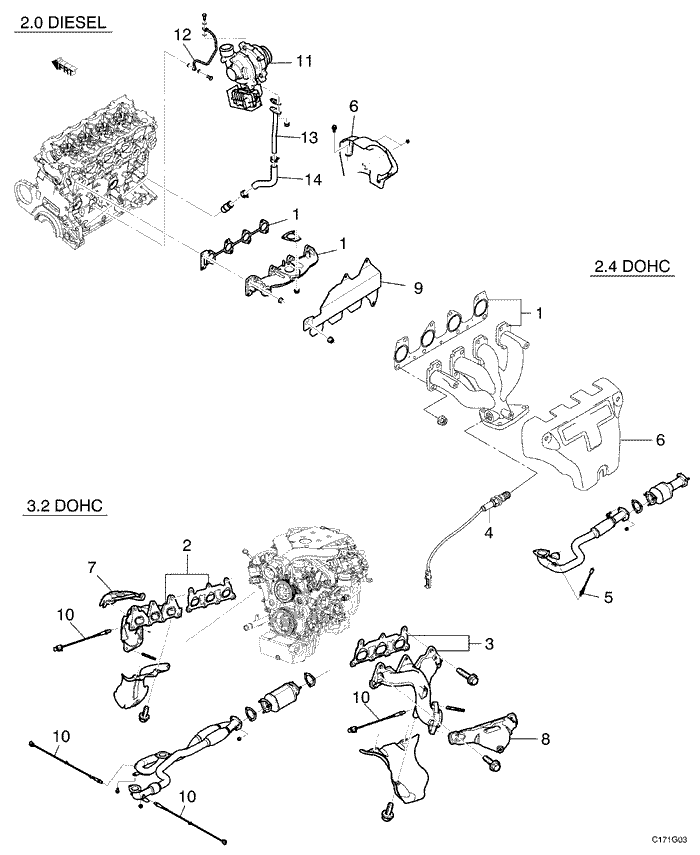

1 | MANIFOLD AND/OR GASKET EXHAUST - REPLACE | 1940300 | 1.5 | 1.1 | — |
2 | MANIFOLD, BANK 1 EXHAUST - REPLACE | 1940310 | — | — | 2.5 |
3 | MANIFOLD, BANK 2 EXHAUST - REPLACE | 1940320 | — | — | 0.9 |
4 | SENSOR, FRONT HEATED OXYGEN - REPLACE | 1940400 | — | 0.3 | — |
5 | SENSOR, REAR HEATED OXYGEN - REPLACE | 1940410 | — | 0.4 | — |
6 | COVER, EXHAUST MANIFOLD - REPLACE | 1940800 | 0.6 | 0.3 | — |
7 | COVER, BANK 1 EXHAUST MANIFOLD - REPLACE | 1940900 | — | — | 2.2 |
8 | COVER, BANK 2 EXHAUST MANIFOLD - REPLACE | 1940910 | — | — | 0.4 |
9 | SHIELD, EXHAUST MANIFOLD INNER - REPLACE | 1940920 | 0.7 | — | — |
10 | SENSOR, OXYGEN - REPLACE | . | . | . | . |
Bank 1 Upper | 1941200 | — | — | 2.5 | |
Bank 1 Lower | 1941300 | — | — | 0.4 | |
Bank 2 Upper | 1941400 | — | — | 0.4 | |
Bank 2 Lower | 1941500 | — | — | 0.4 | |
11 | CHARGER AND/OR GASKET, TURBO - REPLACE | 1941600 | 1.5 | — | — |
12 | PIPE AND/OR GASKET, TURBO CHARGER OIL FEED - REPLACE | 1941700 | 0.4 | — | — |
13 | PIPE AND/OR GASKET, TURBO CHARGER OIL RETURN - REPLACE | 1941800 | 0.5 | — | — |
14 | HOSE, TURBO CHARGER OIL RETURN - REPLACE | 1941900 | 0.2 | — | — |
NO. | OPERATION DESCRIPTION | OPERATION CODE | C | ||
2.0DSL | 2.4D | 3.2D | |||

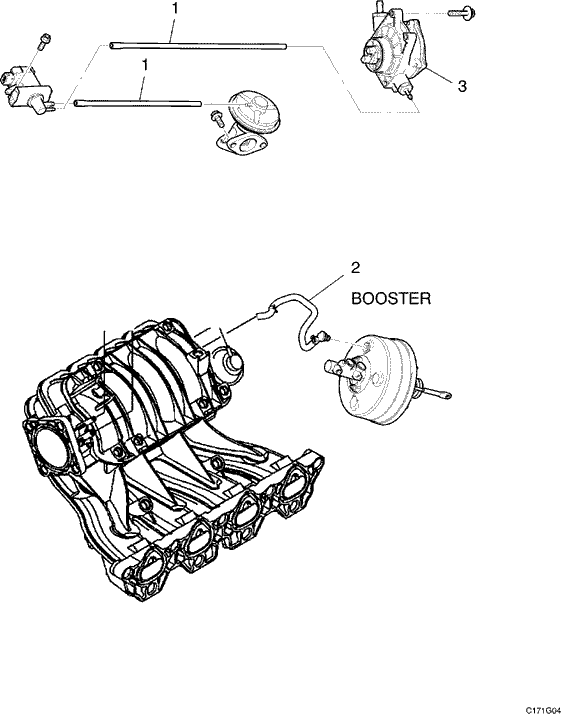

1 | HOSE, VACUUM - REPLACE | . | . | . | . |
Vacuum pump to EGR sol. | 1950800 | 0.2 | — | — | |
EGR valve to EGR sol. | 1950810 | 0.2 | — | — | |
2 | VALVE, FILTER, HOSE AND/OR PIPE, VACUUM POWER BRAKE - REPLACE | 1950900 | 0.4 | 0.2 | 0.2 |
3 | PUMP, VACUUM - REPLACE | 1951400 | 0.8 | — | — |
NO. | OPERATION DESCRIPTION | OPERATION CODE | C | ||
2.0DSL | 2.4D | 3.2D | |||

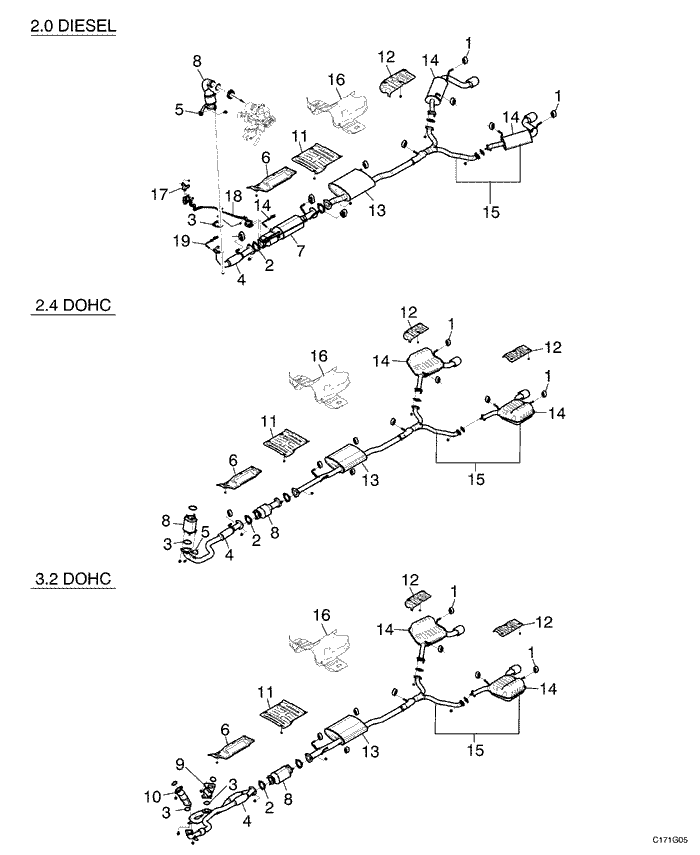

. | EXHAUST SYSTEM - ALIGN | 1960100 | 0.3 | 0.3 | 0.3 |
1 | HANGER AND/OR CLAMP, EXHAUST SYSTEM - REPLACE | 1960300 | 0.4 | 0.4 | 0.4 |
2 | SEAL, EXHAUST PIPE - REPLACE | 1960500 | 0.3 | 0.3 | 0.3 |
3 | SEAL, FRONT EXHAUST PIPE - REPLACE | 1960700 | 0.3 | 0.5 | 0.4 |
4 | PIPE, FRONT EXHAUST - REPLACE (MANIFOLD TO CONVERTER) | 1960900 | 0.4 | 0.4 | 0.5 |
5 | HANGER AND/OR BRACKET, CONVERTER - REPLACE | 1961100 | 0.3 | 0.3 | — |
6 | SHIELD, CONVERTER - REPLACE | 1961300 | 0.3 | 0.3 | 0.3 |
7 | FILTER, DIESEL PARTICULATER(DPF) - REPLACE | 1961400 | 0.8 | — | — |
8 | CONVERTER - REPLACE | 1961500 | 0.4 | 0.4 | 0.4 |
CONVERTER, PUP - REPLACE | 1961600 | — | 0.6 | — | |
9 | CONVERTER, BANK 1 PUP - REPLACE | 1961610 | — | — | 0.4 |
10 | CONVERTER, BANK 2 PUP - REPLACE | 1961620 | — | — | 0.4 |
11 | SHIELD, RESONATOR AND EXHAUST PIPE - REPLACE | 1961700 | 0.3 | 0.3 | 0.3 |
12 | SHIELD, MUFFLER - REPLACE | 1961900 | 0.3 | 0.3 | 0.3 |
13 | MUFFLER, FRONT - REPLACE | 1962100 | 0.5 | 0.5 | 0.5 |
14 | MUFFLER, REAR - REPLACE | . | . | . | . |
Right | 1962210 | 0.4 | 0.4 | 0.4 | |
Left | 1962220 | 0.4 | 0.4 | 0.4 | |
Both | 1962230 | 0.6 | 0.6 | 0.6 | |
15 | EXHAUST SYSTEM (COMPLETE) - REPLACE (SINGLE) | 1962500 | 0.7 | 0.7 | 0.7 |
16 | SHIELD, FUEL TANK - REPLACE | 1962600 | 0.8 | 0.8 | 0.8 |
A - With rear drive module | 196260A | 1.5 | 1.5 | 1.5 | |
NO. | OPERATION DESCRIPTION | OPERATION CODE | C | ||
2.0DSL | 2.4D | 3.2D | |||
17 | SENSOR, DPF - REPLACE | 1963100 | 0.3 | — | — |
18 | HOSE, DPF SENSOR - REPLACE | 1963300 | 0.4 | — | — |
19 | SENSOR, EXHAUST TEMPERATURE - REPLACE | . | . | . | . |
Upper | 1963500 | 0.3 | — | — | |
Lower | 1963700 | 0.3 | — | — | |
20 | DPF - REGENERATION | 1963900 | 0.6 | — | — |
 |  |
