SECTION 1E

ENGINE (ENGINE ELECTRICAL)

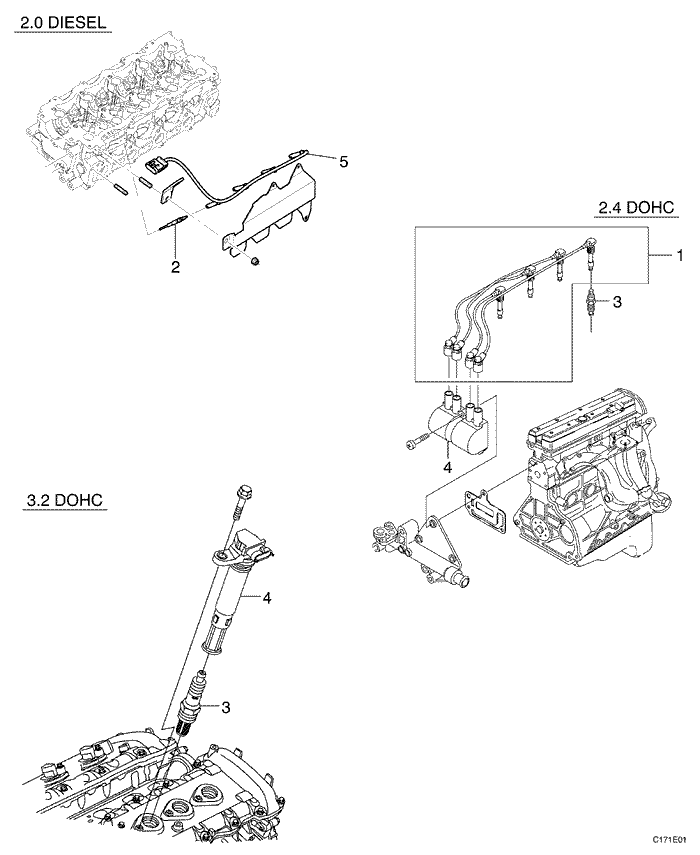

C171E01
Display graphicTranslations of text in graphics


ENGINE ELECTRICAL - IGNITION CABLE (151)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
1
. WIRES, SPARK PLUG - REPLACE (ONE OR TWO)
1510200
—
0.2
—
. WIRES, SPARK PLUG - REPLACE (ALL)
1510500
—
0.3
—
2
. PLUGS, GLOW - REPLACE (ONE OR TWO)
1510600
0.8
—
—
. PLUGS, GLOW - REPLACE (ALL)
1510700
1.0
—
—
3
. PLUGS, SPARK - REPLACE (ONE OR TWO)
1510900
—
0.3
0.2
. PLUGS, SPARK - REPLACE (ALL)
1511200
—
0.4
0.6
4
. COIL, ELECTRONIC IGNITION CONTROL - REPLACE
1511400
—
0.4
0.6
5
. WIRING, GLOW PLUG - REPLACE
1511500
0.8
—
—
C : C-100

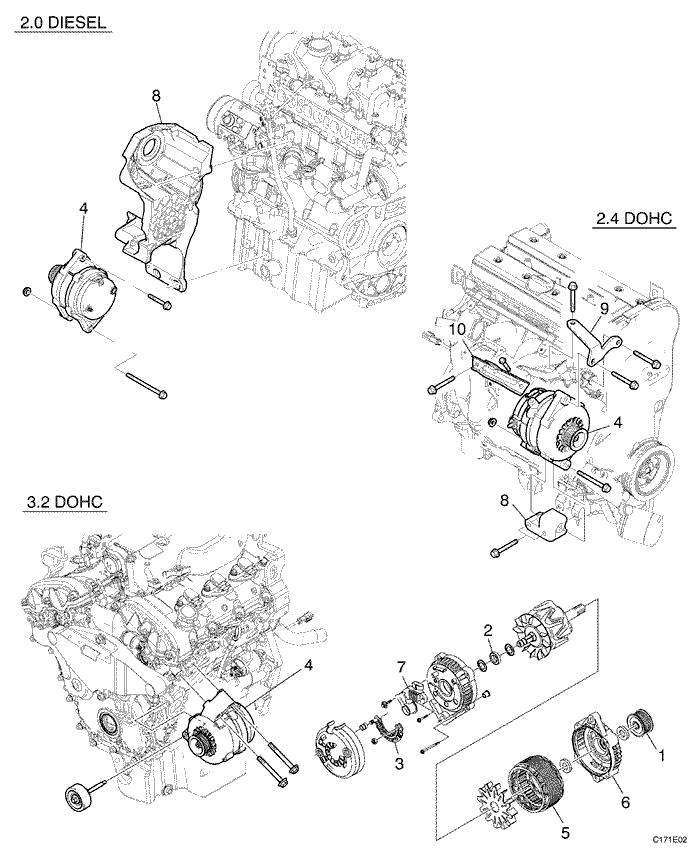

C171E02
Display graphicTranslations of text in graphics


ENGINE ELECTRICAL - ALTERNATOR UNIT (154)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
1
. PULLEY AND/OR FAN, ALTERNATOR - REPLACE
1540200
1.6
0.8
1.3
2
. BEARING, REAR ALTERNATOR - REPLACE
1540600
2.0
1.2
1.7
3
. RECTIFIER, ALTERNATOR - TEST AND REPLACE
1541400
2.3
1.5
2.0
4
. ALTERNATOR ASSEMBLY - REPLACE
1541800
1.5
0.7
1.2
5
. STATOR, ALTERNATOR - REPLACE
1542200
2.1
1.3
1.8
6
. FRAME & BEARING - REPLACE
1542400
1.9
1.1
1.6
7
. REGULATOR, ALTERNATOR - REPLACE
1542700
2.3
1.5
2.0
8
. BRACKET, ALTERNATOR MOUNTING - REPLACE
1544200
2.8
0.7
—
9
. SHACKLE, ALTERNATOR - REPLACE
1544600
—
0.4
—
10
. SUPPORT, ALTERNATOR - REPLACE
1544700
—
0.4
—
C : C-100

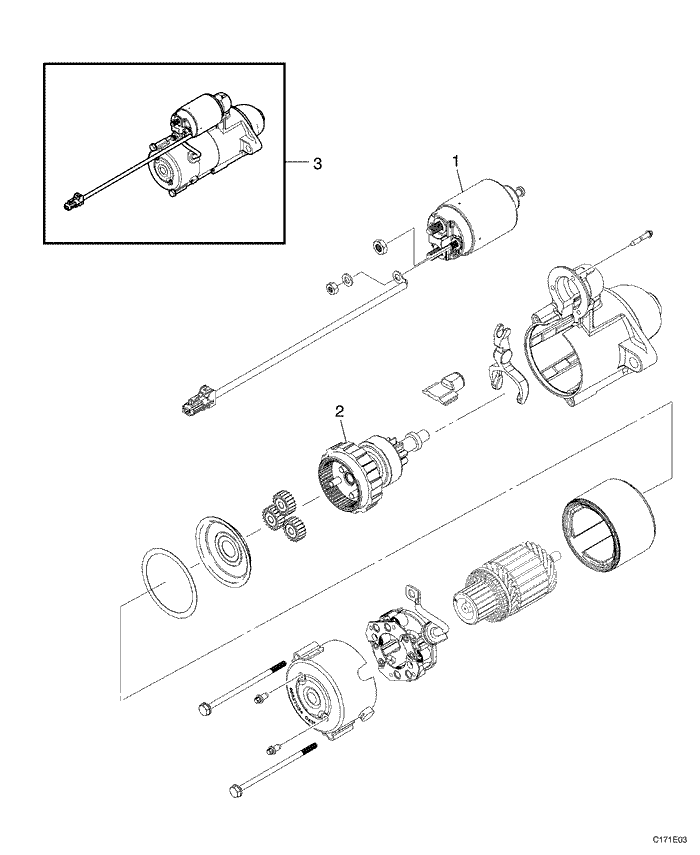

C171E03
Display graphicTranslations of text in graphics


ENGINE ELECTRICAL - STARTER (156)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
1
. SOLENOID, STARTER MOTOR - REPLACE
1560200
0.8
1.0
0.8
2
. DRIVE ASSEMBLY, STARTER MOTOR - REPLACE
1560500
0.6
0.8
0.6
3
. MOTOR ASSEMBLY, STARTER - REPLACE
1560900
0.5
0.7
0.5
C : C-100

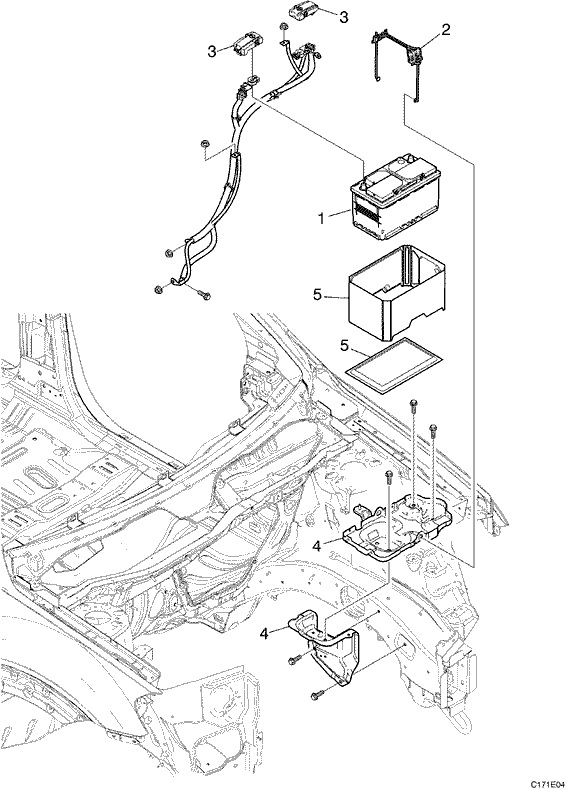

C171E04
Display graphicTranslations of text in graphics


ENGINE ELECTRICAL - BATTERY (157)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
1
. BATTERY
.
.
.
.
Charge and Test
1570200
0.3
0.3
0.3
Replace
1570300
0.3
0.3
0.3
2
. RETAINER AND/OR BOLTS, BATTERY - REPLACE
1570500
0.2
0.2
0.2
3
. COVER, BATTERY TERMINAL (ONE OR TWO) - REPLACE
1570900
0.2
0.2
0.2
4
. TRAY, BATTERY - REPLACE
1571200
0.7
0.7
0.7
5
. SHIELD, BATTERY HEAT - REPLACE
1571300
0.3
0.3
0.3
C : C-100

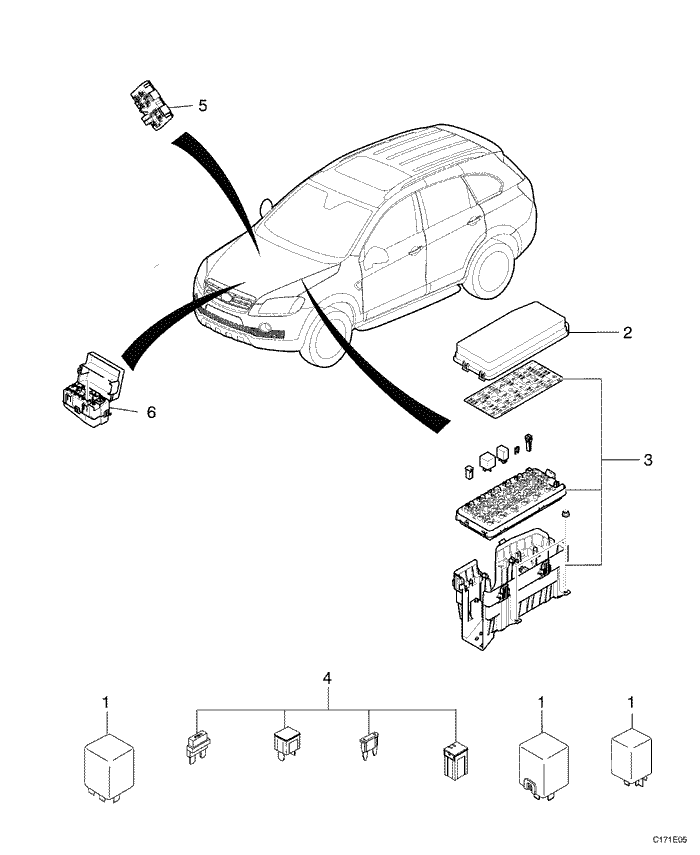

C171E05
Display graphicTranslations of text in graphics


ENGINE ELECTRICAL - FUSE & RELAY (158)

NO.
OPERATION DESCRIPTION
OPERATION CODE
C
2.0DSL
2.4D
3.2D
1
. RELAY - REPLACE
1581600
0.2
0.2
0.2
A - Replace each additional
158160A
0.1
0.1
0.1
2
. COVER, FUSE BLOCK - REPLACE
1582300
0.2
0.2
0.2
3
. BOX, RELAY & FUSE - REPLACE
1582700
0.4
0.4
0.4
4
. FUSE - REPLACE
1583700
0.2
0.2
0.2
A - Replace each additional
158370A
0.1
0.1
0.1
5
. BOX, INSTRUMENT PANEL RELAY & FUSE - REPLACE
1584900
0.5
0.5
0.5
6
. BOX, AUXILIARY RELAY & FUSE - REPLACE
1585100
0.6
—
—
C : C-100
