1

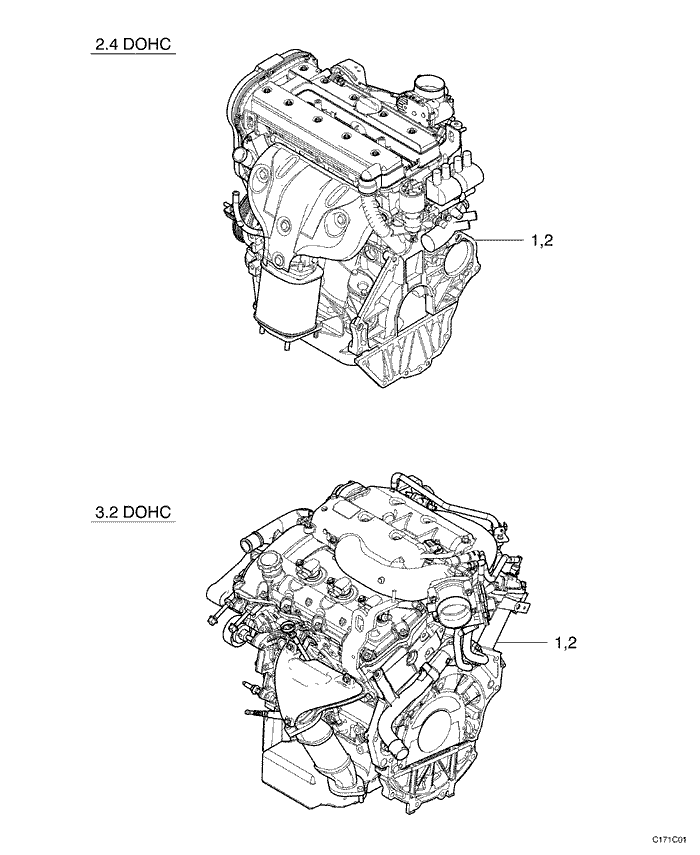

. ENGINE ASSEMBLY (M/T) - OVERHAUL

1110100

12.0

11.5

INC : R & I Engine ass'y, Flywheel, Intake and exhaust manifold ass'y, Timing belt, Engine adjust.

C - With transfer case

111010C

0.4

0.4

. ENGINE ASSEMBLY (A/T) - OVERHAUL

1110300

11.9

11.4

INC : R & I Engine ass'y, Flywheel, Intake and exhaust manifold ass'y, Timing belt, Engine adjust.

C - With transfer case

111030C

0.4

0.4

2

. ENGINE ASSEMBLY (M/T) - REPLACE

1110800

8.9

7.8

INC : R & I Engine ass'y, Intake and exhaust manifold ass'y, Engine adjust.

C - With transfer case

111080C

0.4

0.4

. ENGINE ASSEMBLY (A/T) - REPLACE

1110900

8.8

7.7

INC : R & I Engine ass'y, Intake and exhaust manifold ass'y, Engine adjust.

C - With transfer case

111090C

0.4

0.4

1

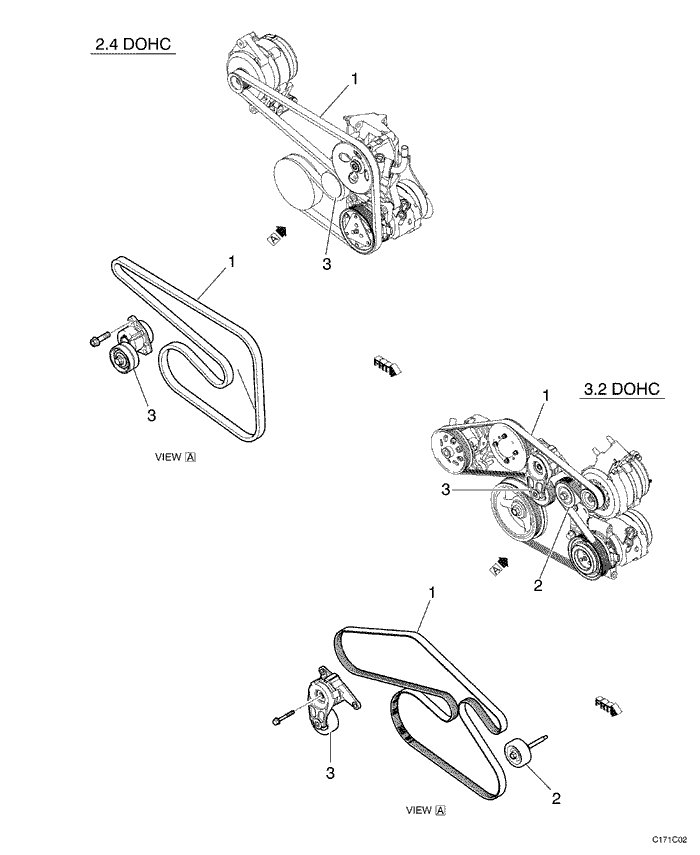

. BELT, ACCESSORY - REPLACE

1132200

0.4

1.0

2

. IDLE, ACCESSORY BELT - REPLACE

1132300

—

1.2

3

. AUTO TENSIONER, ACCESSORY BELT - REPLACE

1132400

0.5

1.0

1

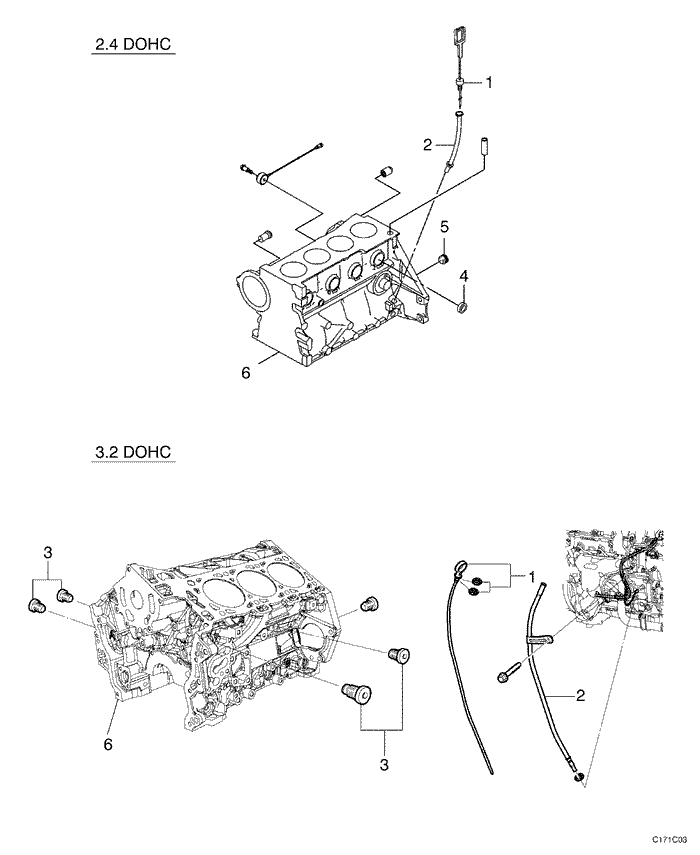

. OIL LEVEL INDICATOR - REPLACE

1210200

0.2

0.2

2

. TUBE, OIL LEVEL INDICATOR - REPLACE

1210300

0.3

0.3

3

. PLUG, CYLINDER BLOCK - REPLACE

1210600

—

0.9

4

. PLUG, EXPANSION - REPLACE

1210700

0.4

—

NOTE : Add appropriate labor MODEL(s) for removal if necessary components to gain access to plug to regular labor hours column

5

. PLUG, OIL GALLERY - REPLACE

1210900

1.8

—

6

. BLOCK, CYLINDER - REPLACE

1211100

12.9

12.4

INC : Overhaul Engine ass'y, R & I Crankshaft, Piston

C - With transfer case

121110C

0.4

0.4

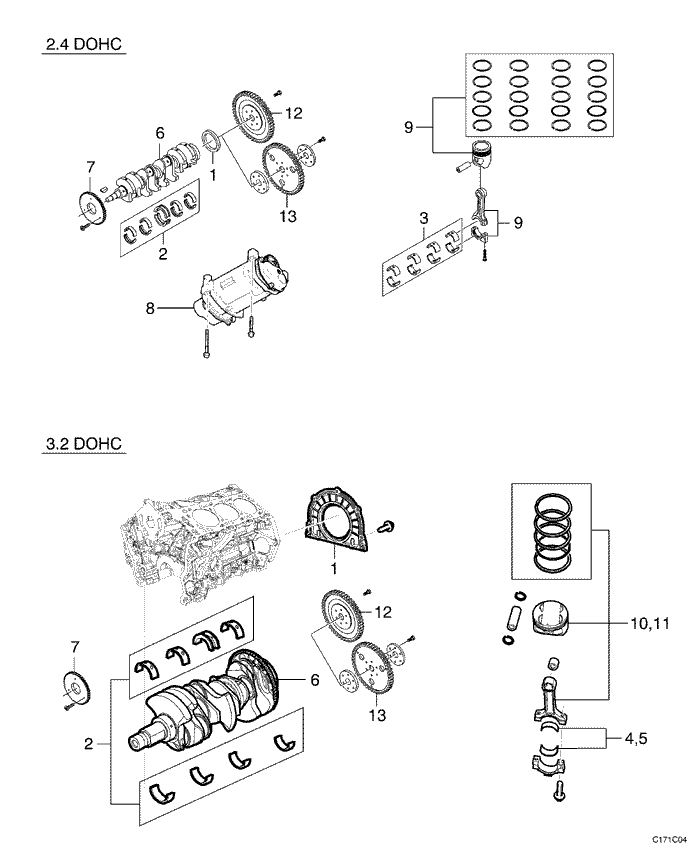

1

. SEAL(S), CRANKSHAFT REAR MAIN (AUTO TRANSAXLE) - REPLACE

1220200

4.4

9.1

. SEAL(S), CRANKSHAFT REAR MAIN (MANUAL TRANSAXLE) - REPLACE

1220400

4.0

9.0

INC : R & I Flywheel

C - With transfer case

122020C

0.6

0.6

2

. BEARING, CRANKSHAFT MAIN (ONE) - REPLACE

1220600

12.7

11.0

INC : R & I Engine ass'y, Flywheel, Crankshaft balance unit, Engine adjust.

A - Replace each additional

122060A

0.1

0.1

E - With transfer case

122060E

0.4

0.4

3

. BEARING, CONNECTING ROD (ONE) - REPLACE

1220800

5.2

—

INC : R & I Cylinder head, Crankshaft balance unit

A - Replace each additional

122080A

0.2

—

B - Replace all

122080B

0.6

—

4

. BEARING, BANK 1 CONNECTING ROD (ONE) - REPLACE

1220900

—

9.2

INC : R & I Cylinder head, Oil pan

A - Replace each Additional

122090A

—

0.2

B - Replace all

122090B

—

0.5

5

. BEARING, BANK 2 CONNECTING ROD (ONE) - REPLACE

1220910

—

9.3

INC : R & I Cylinder head, Oil pan

A - Replace each additional

122091A

—

0.2

B - Replace all

122091B

—

0.5

6

. CRANKSHAFT (M/T) - REPLACE

1221100

12.7

11.0

INC : R & I Engine ass'y, Cylinder head ass'y, Flywheel, Crankshaft balance unit, Engine adjust.

D - Replace one piston rings

122110D

0.1

0.1

E - Replace all piston rings

122110E

0.4

0.6

F - Replace one connecting rod

122110F

0.3

0.1

G - Replace all connecting rods

122110G

1.2

0.6

H - Replace one piston

122110H

0.3

0.1

J - Replace all pistons

122110J

1.2

0.6

K - With transfer case

122110K

0.4

0.4

6

. CRANKSHAFT (A/T) - REPLACE

1221200

12.4

10.9

INC : R & I Engine ass'y, Cylinder head ass'y, Flywheel, Crankshaft balance unit, Engine adjust.

D - Replace one piston rings

122120D

0.1

0.1

E - Replace all piston rings

122120E

0.4

0.6

F - Replace one connecting rod

122120F

0.3

0.1

G - Replace all connecting rods

122120G

1.2

0.6

H - Replace one piston

122120H

0.3

0.1

J - Replace all pistons

122120J

1.2

0.6

K - With transfer case

122120K

0.4

0.4

7

. CRANKSHAFT TARGET WHEEL - REPLACE

1221300

12.5

11.1

A - With manual transaxle

122130A

0.3

0.1

C - With transfer case

122130C

0.4

0.4

8

. UNIT, CRANKSHAFT BALANCE - REPLACE

1221400

1.6

—

9

. PISTON, ROD AND/OR RINGS (ONE) - REPLACE

1221500

5.5

—

INC : R & I Cylinder head, Crankshaft balance unit, Engine adjust.

C - Replace each additional

122150C

0.4

—

D - Replace all

122150D

1.2

—

10

. BANK 1 PISTON, ROD AND/OR RINGS (ONE) - REPLACE

1221600

—

9.8

INC : R & I Cylinder head, Oil pan

A - Replace each additional

122160A

—

0.2

B - Replace all

122160B

—

0.5

11

. BANK 2 PISTON, ROD AND/OR RINGS (ONE) - REPLACE

1221610

—

10.0

INC : R & I Cylinder head, Oil pan

A - Replace each additional

122161A

—

0.2

B - Replace all

122161B

—

0.5

12

. FLYWHEEL (MANUAL T/M) - REPLACE

1221700

3.9

3.9

INC : R & I Transaxle ass'y, Clutch cover ass'y

C - With transfer case

122170C

0.6

0.6

13

. FLYWHEEL (AUTO T/M) - REPLACE

1221900

4.4

4.4

C - With transfer case

122190C

0.6

0.6

1

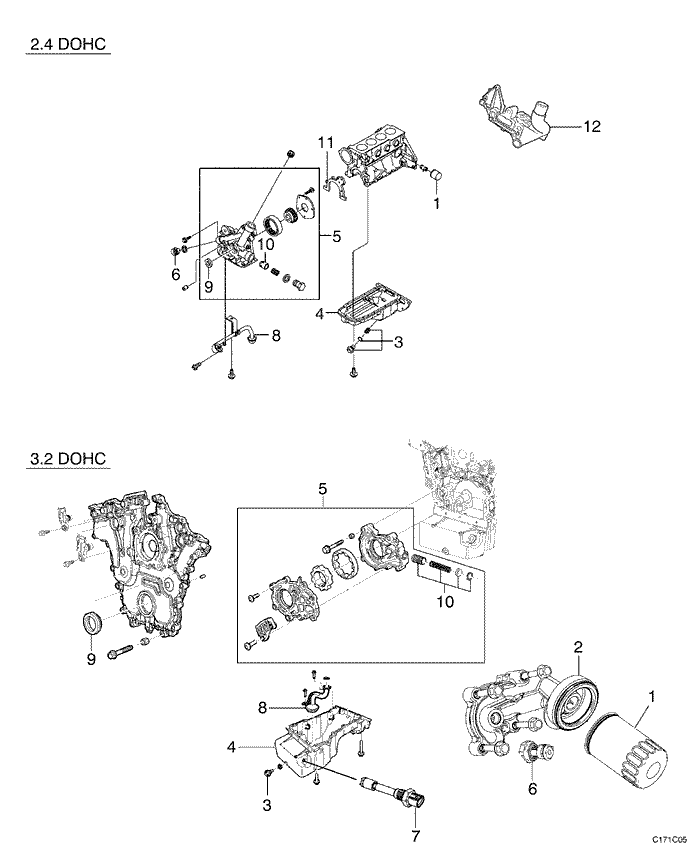

. FILTER, OIL - REPLACE

1231100

0.4

0.4

2

. ADAPTER, OIL FILTER - REPLACE

1231200

—

0.6

3

. PLUG AND/OR GASKET, OIL PAN DRAIN - REPLACE

1231300

0.3

0.3

4

. PAN AND/OR GASKET, OIL - REPLACE

1231500

1.2

8.9

INC : Front exhaust pipe ass'y, Drive axle intermshaft

5

. PUMP, ENGINE OIL - REPLACE

1231700

3.0

6.9

INC : R & I Timing belt, Oil pan, Engine adjust

6

. SENSOR, FUEL SWITCH & ENGINE OIL PRESSURE GAGE - REPLACE

1231900

0.3

0.3

7

. SENSOR, ENGINE OIL LEVEL - REPLACE

1231910

—

0.3

8

. TUBE, OIL SUCTION - REPLACE

1232100

1.3

9.0

9

. OIL SEAL, CRANKSHAFT (FRONT) - REPLACE

1232300

1.2

0.6

10

. VALVE, OIL PRESSURE RELIEF - REPLACE

1232700

1.6

6.9

11

. GASKET, OIL PUMP - REPLACE

1232900

3.0

6.9

12

. PIPE AND/OR GASKET, INTERNAL PCV - REPLACE

1233100

0.9

—

1

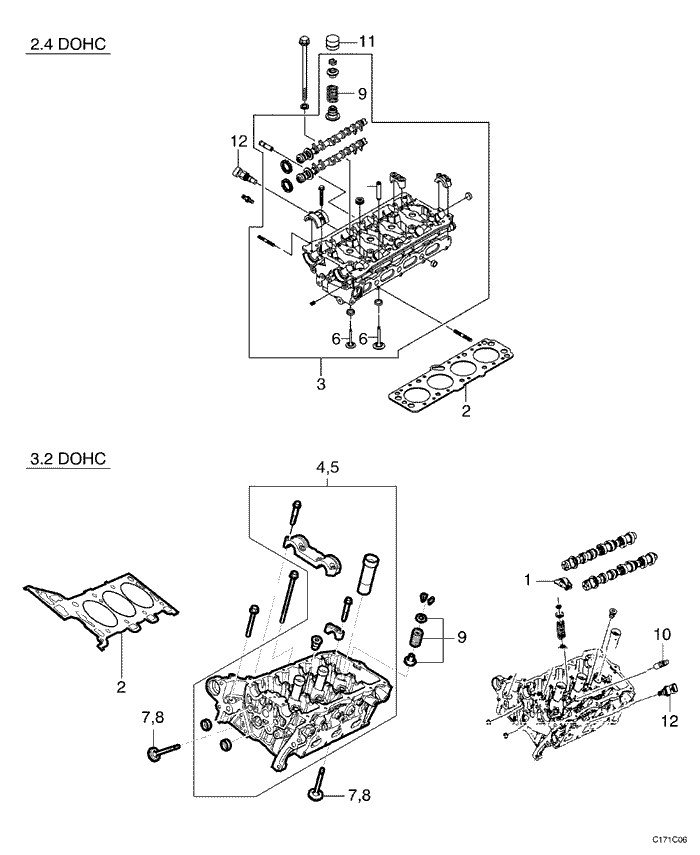

. FOLLOWER, CAM (ONE CYLINDER) - REPLACE

1312100

—

7.1

A - Cam follower (Each additional)

131210A

—

0.1

B - Cam followers (All)

131210B

—

0.2

2

. GASKET, CYLINDER HEAD - REPLACE

1312300

3.0

7.2

INC : R & I Cylinder head ass'y, Engine adjust.

3

. HEAD, CYLINDER - REPLACE

1312500

3.9

—

INC : R & I Intake & exhaust manifold, Engine adjust.

. HEAD, CYLINDER - OVERHAUL

1312600

5.1

—

INC : R & I Cylinder head ass'y, Intake & exhaust manifold, Valves, Engine adjust.

4

. HEAD, BANK 1 CYLINDER - REPLACE

1312610

—

7.4

INC : R & I Intake & exhaust manifold, Engine adjust.

. HEAD, BANK 1 CYLINDER - OVERHAUL

1312620

—

8.2

INC : R & I Cylinder head ass'y, Intake & exhaust manifold, Valves, Engine adjust.

5

. HEAD, BANK 2 CYLINDER - REPLACE

1312640

—

7.6

INC : R & I Intake & exhaust manifold, Engine adjust.

. HEAD, BANK 2 CYLINDER - OVERHAUL

1312650

—

8.4

INC : R & I Cylinder head ass'y, Intake & exhaust manifold, Valves, Engine adjust.

6

. VALVE (ONE CYLINDER) - REPLACE

1312700

4.4

—

INC : R & I Cylinder head ass'y, Intake & exhaust manifold, Camshaft, Valves recondition, Engine adjust.

C - One cylinder valve (Each additional)

131270C

0.3

—

D - Valves (All)

131270D

0.7

—

7

. VALVE, BANK 1 (ONE CYLINDER) - REPLACE

1312710

—

7.7

INC : R & I Cylinder head ass'y, Intake & exhaust manifold, Camshaft, Valves recondition, Engine adjust.

C - One cylinder valve (Each additional)

131271C

—

0.2

D - Valves (All)

131271D

—

0.5

8

. VALVE, BANK 2 (ONE CYLINDER) - REPLACE

1312720

—

7.9

INC : R & I Cylinder head ass'y, Intake & exhaust manifold, Camshaft, Valves recondition, Engine adjust.

C - One cylinder valve (Each additional)

131272C

—

0.2

D - Valves (All)

131272D

—

0.5

9

. SPRING CAP AND/OR SEAL, VALVE (ONE CYLINDER) - REPLACE

1312900

4.4

7.1

INC : R & I Camshaft, Engine adjust.

C - One cylinder valve spring (Each additional)

131290C

0.3

0.2

D - Springs (All)

131290D

0.7

0.5

10

. ADJUSTER, VALVE - REPLACE (ONE CYLINDER)

1313100

—

7.1

A - Valve adjuster (Each additional)

131310A

—

0.1

B - Valve adjusters (All)

131310B

—

0.2

11

. LIFTER, VALVE (ONE CYLINDER) - REPLACE

1313800

4.2

—

C - One cylinder valve lifter (Each additional)

131380C

0.1

—

D - Lifters (All)

131380D

0.2

—

12

. SENSOR, ENGINE COOLANT TEMP - REPLACE

1314100

0.2

0.3

1

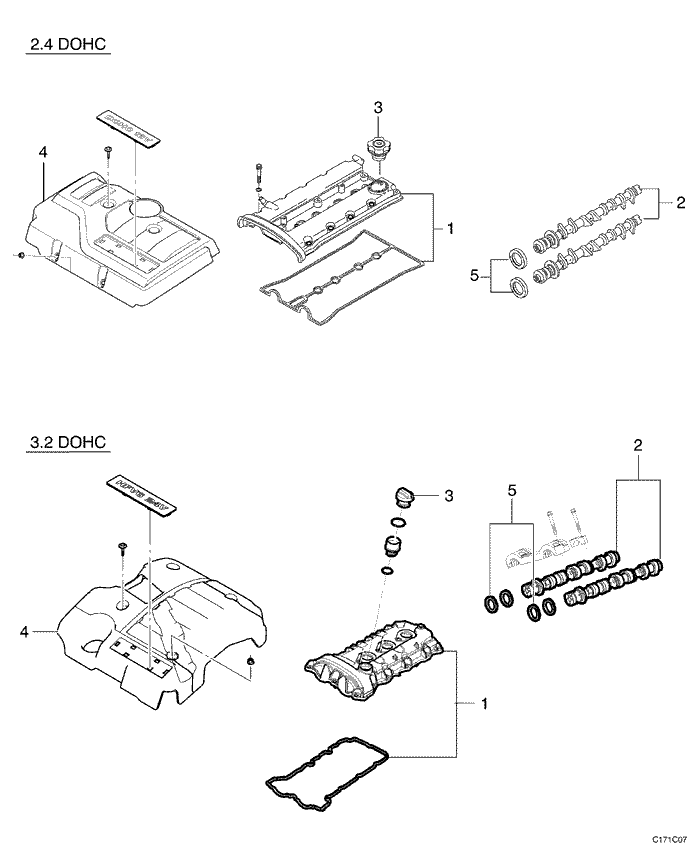

. COVER AND/OR GASKET, CAMSHAFT HOUSING (ONE PIECE) - REPLACE

1322100

0.4

0.8

B - Replace all

132210B

—

0.4

2

. CAMSHAFT, EXHAUST/INTAKE - REPLACE

1322400

1.9

7.1

INC : R & I Camshaft gear, Ignition timing adjust.

3

. CAP, OIL FILLER - REPLACE

1322700

0.2

0.2

4

. COVER, CAMSHAFT UPPER - REPLACE

1322800

0.2

0.2

5

. OIL SEAL, CAMSHAFT - REPLACE

1323000

1.4

7.1

1

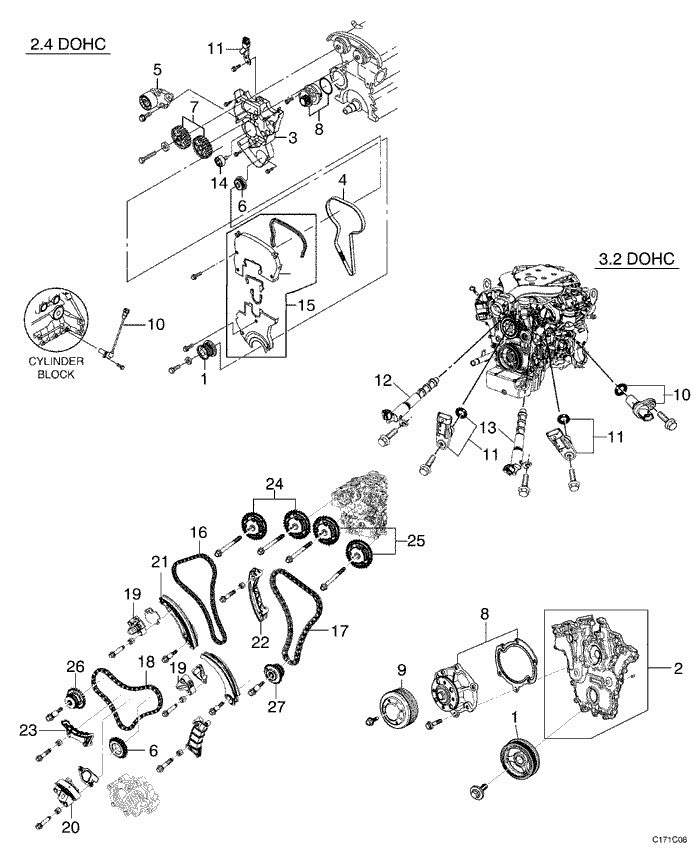

. PULLEY, CRANKSHAFT - REPLACE

1332100

0.5

0.5

2

. COVER AND/OR GASKET, TIMING - REPLACE

1332200

—

6.6

3

. COVER TIMING BELT REAR - REPLACE

1332300

1.8

—

4

. BELT, TIMING - REPLACE

1332500

1.1

—

. BELT, TIMING - ADJUST

1332700

1.1

—

5

. TENSIONER, TIMING BELT - REPLACE

1332900

1.1

—

INC : R & I Timing belt, Engine adjust.

6

. SPROCKET, CRANKSHAFT TIMING - REPLACE

1333100

1.1

6.9

INC : R & I Timing belt, Engine adjust.

7

. SPROCKET, CAMSHAFT TIMING - REPLACE

1333300

1.4

—

INC : R & I Timing belt, Engine adjust.

8

. PUMP AND/OR GASKET, COOLANT - REPLACE

1333500

1.8

1.3

9

. PULLEY, COOLANT PUMP - REPLACE

1333600

—

1.1

10

. SENSOR, CRANKSHAFT POSITION - REPLACE

1333700

1.3

0.5

A - With Transfer Case

133370A

1.3

1.4

11

. SENSOR, CAMSHAFT POSITION - REPLACE

1333800

1.1

0.4

12

. SOLENOID, BANK 1 CAMSHAFT POSITION ACTUATOR - REPLACE

1333810

—

0.3

13

. SOLENOID, BANK 2 CAMSHAFT POSITION ACTUATOR - REPLACE

1333820

—

0.9

14

. PULLEY, IDLER - REPLACE

1333900

1.1

—

15

. COVER, TIMING BELT FRONT - REPLACE

1334800

1.0

—

16

. CHAIN, BANK 1 SECONDALY TIMING - REPLACE

1335100

—

6.7

17

. CHAIN, BANK 2 SECONDALY TIMING - REPLACE

1335200

—

7.0

18

. CHAIN, PRIMALY TIMING - REPLACE

1335300

—

6.9

19

. TENSIONER AND/OR GASKET, SECONDALY TIMING CHAIN - REPLACE

1335400

—

6.7

20

. TENSIONER AND/OR GASKET, PLIMALY TIMING CHAIN - REPLACE

1335500

—

6.7

21

. GUIDE, SECONDALY TIMING CHAIN - REPLACE

1335600

—

6.7

22

. GUIDE, SECONDALY TIMING CHAIN INNER - REPLACE

1335700

—

6.7

23

. GUIDE, PLIMALY TIMING CHAIN UPPER - REPLACE

1335800

—

6.7

24

. SPROCKET, BANK 1 CAMSHAFT TIMING - REPLACE

1335900

—

6.8

25

. SPROCKET, BANK 2 CAMSHAFT TIMING - REPLACE

1336100

—

6.8

26

. SPROCKET, BANK 1 CAMSHAFT IDLER - REPLACE

1336200

—

6.9

27

. SPROCKET, BANK 2 CAMSHAFT IDLER - REPLACE

1336300

—

7.0

1

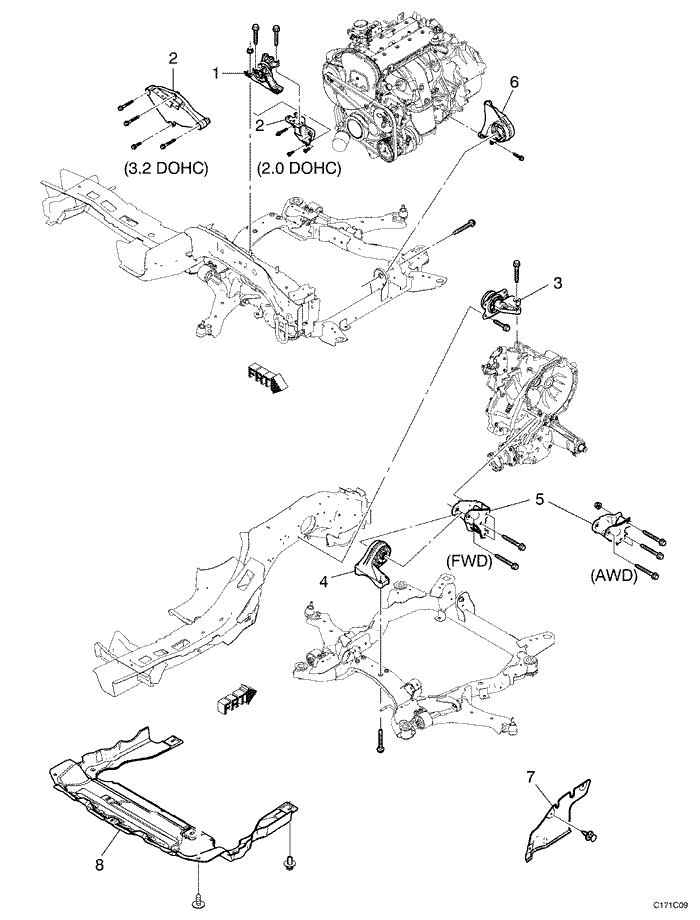

. MOUNT, ENGINE (RH-FRONT) - REPLACE

1380100

0.8

0.8

2

. BRACKET, ENGINE MOUNT (RH-FRONT) - REPLACE

1380300

1.8

1.0

3

. MOUNT, TRANSAXLE (LH-FRONT) - REPLACE

1380500

1.3

1.3

4

. MOUNT, TRANSAXLE (CENTER-REAR) - REPLACE

1380700

0.5

0.5

5

. BRACKET, TRANSAXLE MOUNT - REPLACE

1380900

0.5

0.5

6

. MOUNT, TRANSAXLE (CENTER-FRONT) - REPLACE

1381200

0.6

0.6

7

. SHIELD, SPLASH - REPLACE

Right

1382100

0.2

0.2

Left

1382200

0.2

0.2

Both

1382400

0.3

0.3

8

. COVER, ENGINE LOWER - REPLACE

1382800

0.3

0.3
