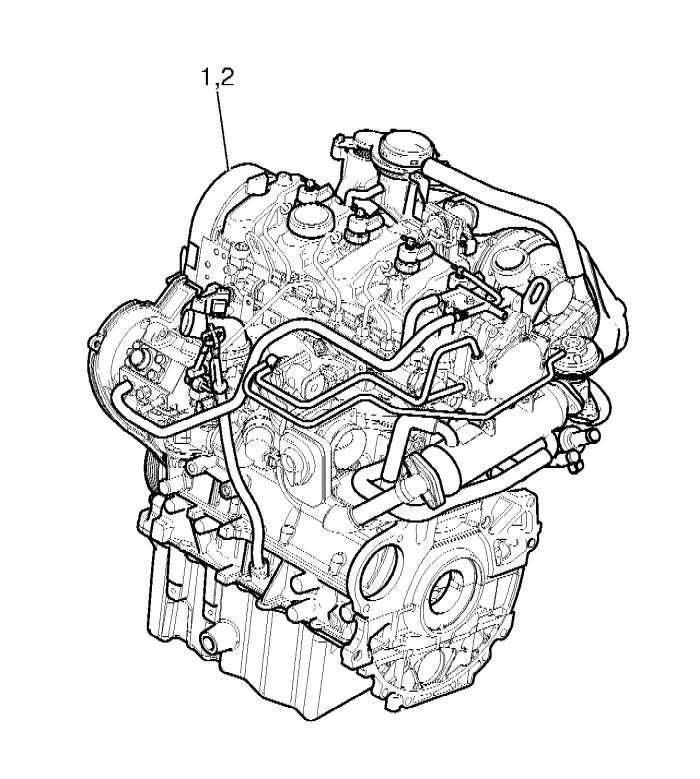

. ENGINE ASSEMBLY (M/T) - OVERHAUL

1110100

13.0

INC : R & I Engine ass'y, Flywheel, Intake and exhaust manifold ass'y, Timing belt, Engine adjust.

C - With transfer case

111010C

0.4

. ENGINE ASSEMBLY (A/T) - OVERHAUL

1110300

12.8

INC : R & I Engine ass'y, Flywheel, Intake and exhaust manifold ass'y, Timing belt, Engine adjust.

C - With transfer case

111030C

0.4

2

. ENGINE ASSEMBLY (M/T) - REPLACE

1110800

9.3

INC : R & I Engine ass'y, Intake and exhaust manifold ass'y, Engine adjust.

C - With transfer case

111080C

0.4

. ENGINE ASSEMBLY (A/T) - REPLACE

1110900

9.2

INC : R & I Engine ass'y, Intake and exhaust manifold ass'y, Engine adjust.

C - With transfer case

111090C

0.4

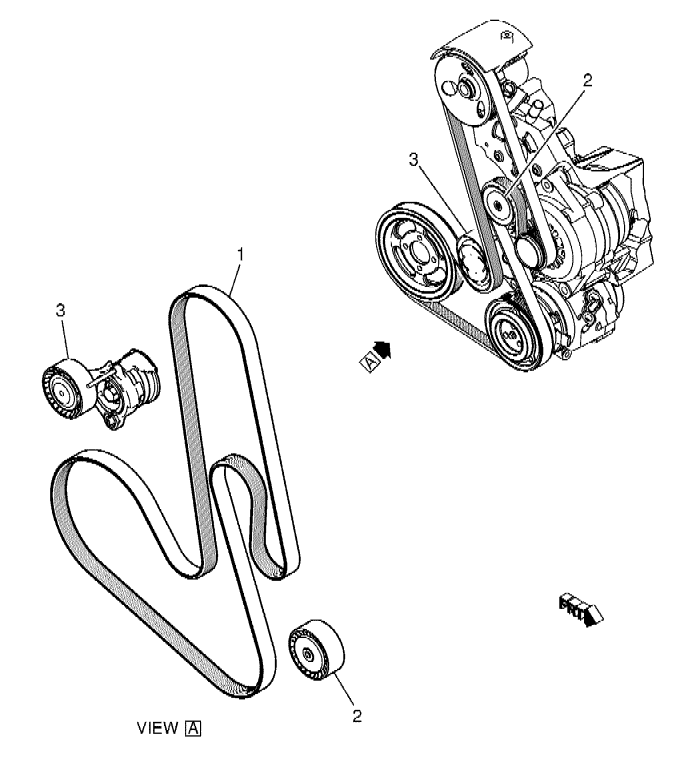

1

. BELT, ACCESSORY - REPLACE

1132200

0.5

2

. IDLE, ACCESSORY BELT - REPLACE

1132300

0.6

3

. AUTO TENSIONER, ACCESSORY BELT - REPLACE

1132400

0.6

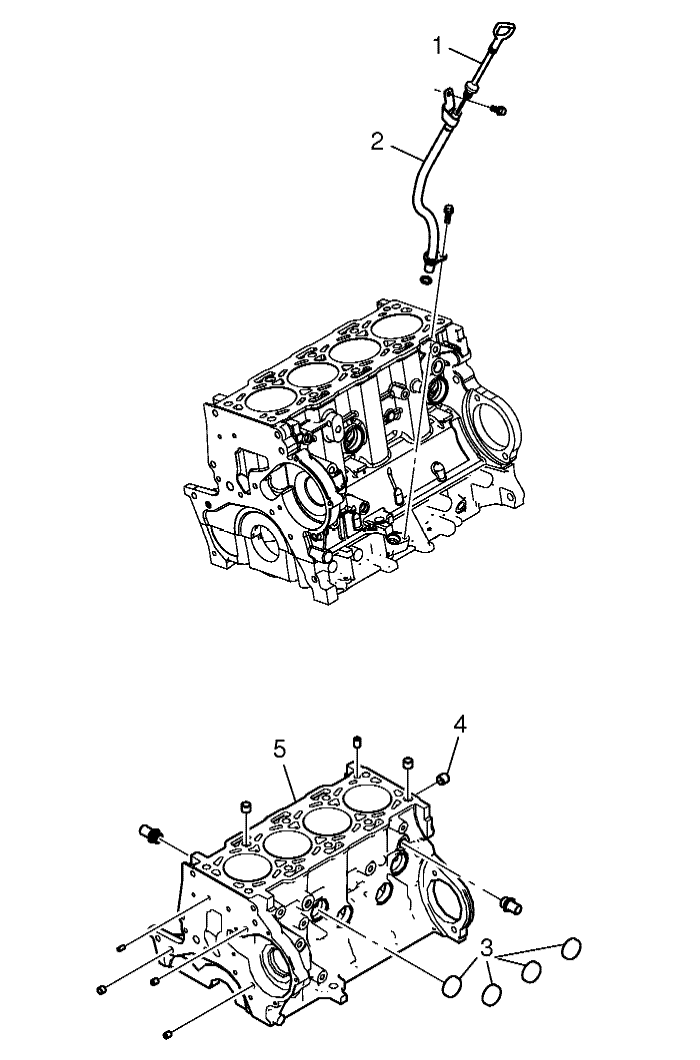

1

. OIL LEVEL INDICATOR - REPLACE

1210200

0.2

2

. TUBE, OIL LEVEL INDICATOR - REPLACE

1210300

0.3

3

. PLUG, EXPANSION - REPLACE

1210700

0.4

NOTE : Add appropriate labor MODEL(s) for removal if necessary components to gain access to plug to regular labor hours column

4

. PLUG, OIL GALLERY - REPLACE

1210900

4.0

INC : R & I Flywheel

5

. BLOCK, CYLINDER - REPLACE

1211100

13.7

INC : Overhaul Engine ass'y, R & I Crankshaft, Piston

C - With transfer case

121110C

0.4

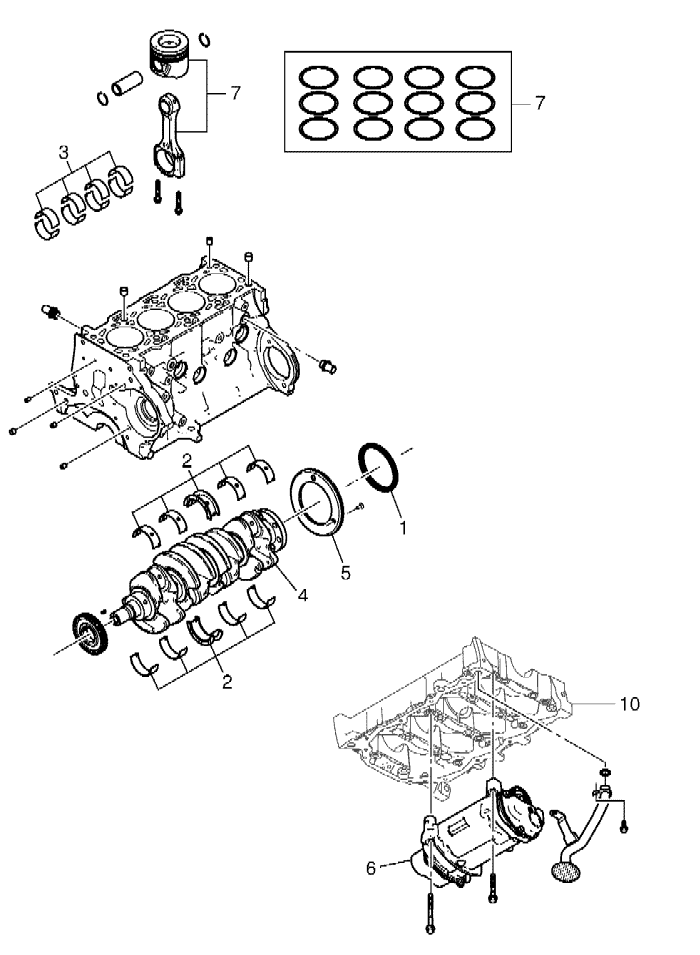

1

. SEAL(S), CRANKSHAFT REAR MAIN (AUTO TRANSAXLE) - REPLACE

1220200

4.4

. SEAL(S), CRANKSHAFT REAR MAIN (MANUAL TRANSAXLE) - REPLACE

1220400

4.0

INC : R & I Flywheel

C - With transfer case

122020C

0.6

2

. BEARING, CRANKSHAFT MAIN (ONE) - REPLACE

1220600

13.1

INC : R & I Engine ass'y, Flywheel, Crankshaft balance unit, Engine adjust.

A - Replace each additional

122060A

0.1

E - With transfer case

122060E

0.4

3

. BEARING, CONNECTING ROD (ONE) - REPLACE

1220800

6.0

INC : R & I Cylinder head, Crankshaft balance unit

A - Replace each additional

122080A

0.2

B - Replace all

122080B

0.4

4

. CRANKSHAFT (M/T) - REPLACE

1221100

13.1

INC : R & I Engine ass'y, Cylinder head ass'y, Flywheel, Crankshaft balance unit, Engine adjust.

D - Replace one piston rings

122110D

0.1

E - Replace all piston rings

122110E

0.4

F - Replace one connecting rod

122110F

0.1

G - Replace all connecting rods

122110G

0.4

H - Replace one piston

122110H

0.1

J - Replace all pistons

122110J

0.4

K - With transfer case

122110K

0.4

. CRANKSHAFT (A/T) - REPLACE

1221200

12.9

INC : R & I Engine ass'y, Cylinder head ass'y, Flywheel, Crankshaft balance unit, Engine adjust.

D - Replace one piston rings

122120D

0.1

E - Replace all piston rings

122120E

0.4

F - Replace one connecting rod

122120F

0.1

G - Replace all connecting rods

122120G

0.4

H - Replace one piston

122120H

0.1

J - Replace all pistons

122120J

0.4

K - With transfer case

122120K

0.4

5

. CRANKSHAFT TARGET WHEEL - REPLACE

1221300

13.0

A - With manual transaxle

122130A

0.3

C - With transfer case

122130C

0.4

6

. UNIT, CRANKSHAFT BALANCE - REPLACE

1221400

1.3

7

. PISTON, ROD AND/OR RINGS (ONE) - REPLACE

1221500

6.1

INC : R & I Cylinder head, Crankshaft balance unit, Engine adjust.

C - Replace each additional

122150C

0.2

D - Replace all

122150D

0.5

8

. FLYWHEEL (MANUAL T/M) - REPLACE

1221700

3.9

INC : R & I Transaxle ass'y, Clutch cover ass'y

C - With transfer case

122170C

0.6

9

. FLYWHEEL (AUTO T/M) - REPLACE

1221900

4.4

C - With transfer case

122190C

0.6

10

. CASE, CRANK LOWER - REPLACE

1222900

1.9

C - With transfer case

122290C

0.6

1

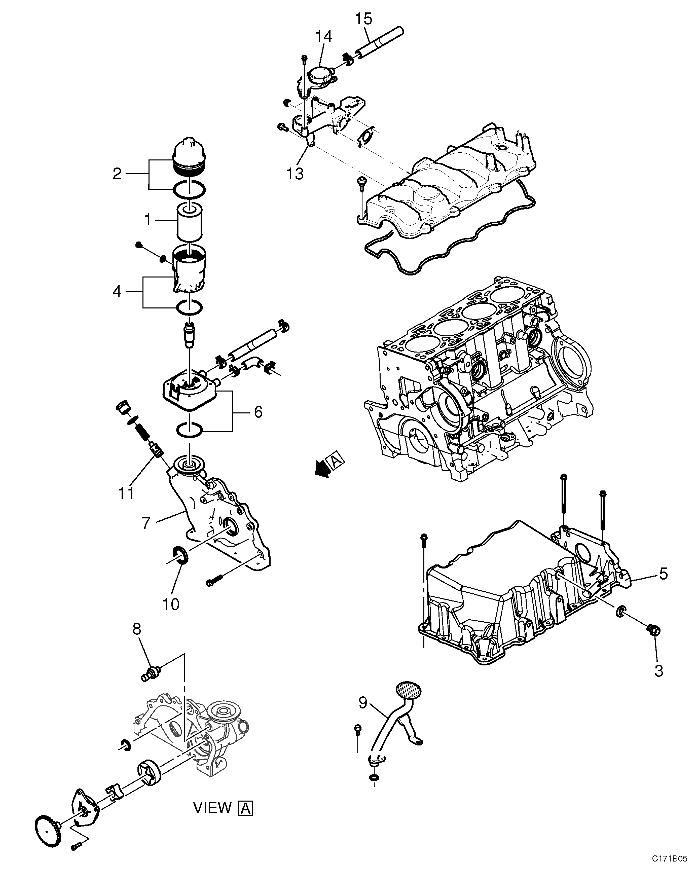

. FILTER, OIL - REPLACE

1231100

0.4

2

. CAP AND/OR SEAL, OIL FILTER HOUSING - REPLACE

1231210

0.4

3

. PLUG AND/OR GASKET, OIL PAN DRAIN - REPLACE

1231300

0.3

4

. HOUSING AND/OR SEAL, OIL FILTER - REPLACE

1231400

0.4

5

. PAN AND/OR GASKET, OIL - REPLACE

1231500

1.2

INC : Front exhaust pipe ass'y, Drive axle intermshaft

6

. COOLER AND/OR SEAL, ENGINE OIL - REPLACE

1231600

0.5

7

. PUMP, ENGINE OIL - REPLACE

1231700

2.7

INC : R & I Timing belt, Oil pan, Engine adjust

8

. SENSOR, FUEL SWITCH & ENGINE OIL PRESSURE GAGE - REPLACE

1231900

0.4

9

. TUBE, OIL SUCTION - REPLACE

1232100

1.2

10

. OIL SEAL, CRANKSHAFT (FRONT) - REPLACE

1232300

1.2

11

. VALVE, OIL PRESSURE RELIEF - REPLACE

1232700

0.4

12

. GASKET, OIL PUMP - REPLACE

1232900

2.6

13

. PIPE AND/OR GASKET, INTERNAL PCV - REPLACE

1233100

0.7

14

. VALVE, PCV - REPLACE

1233200

0.3

15

. HOSE, OIL VENTILATION - REPLACE

1233700

0.4

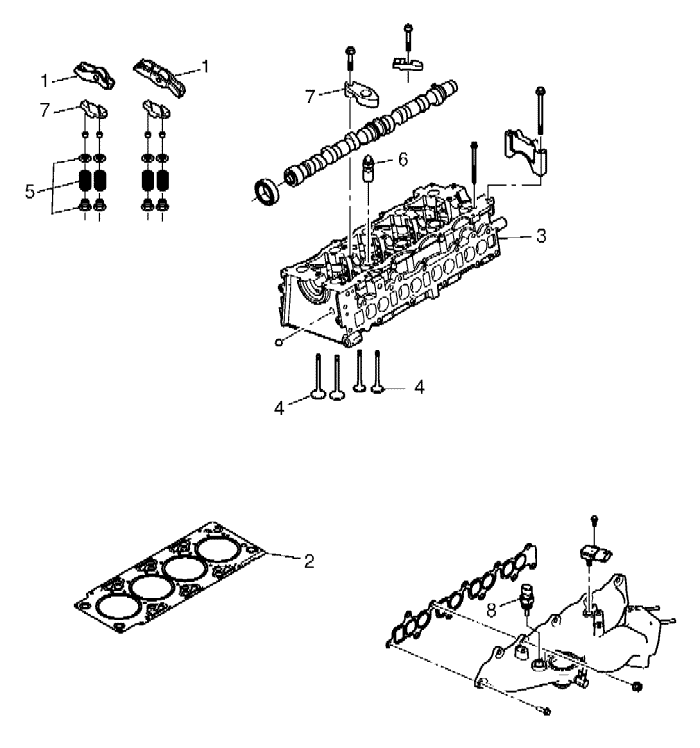

1

. FOLLOWER, CAM (ONE CYLINDER) - REPLACE

1312100

5.2

A - Cam follower (Each additional)

131210A

0.1

B - Cam followers (All)

131210B

0.2

2

. GASKET, CYLINDER HEAD - REPLACE

1312300

3.8

INC : R & I Cylinder head ass'y, Engine adjust.

3

. HEAD, CYLINDER - REPLACE

1312500

4.8

INC : R & I Intake & exhaust manifold, Engine adjust.

. HEAD, CYLINDER - OVERHAUL

1312600

6.7

INC : R & I Cylinder head ass'y, Intake & exhaust manifold, Valves, Engine adjust.

4

. VALVE (ONE CYLINDER) - REPLACE

1312700

5.5

INC : R & I Cylinder head ass'y, Intake & exhaust manifold, Camshaft, Valves recondition, Engine adjust.

C - One cylinder valve (Each additional)

131270C

0.4

D - Valves (All)

131270D

1.2

5

. SPRING CAP AND/OR SEAL, VALVE (ONE CYLINDER) - REPLACE

1312900

5.5

INC : R & I Camshaft, Engine adjust.

C - One cylinder valve spring (Each additional)

131290C

0.4

D - Springs (All)

131290D

1.2

6

. LIFTER, CAM FOLLOWER (ONE CYLINDER) - REPLACE

1313500

5.2

INC : R & I Cylinder head ass'y, camshaft, Engine adjust.

C - One cylinder follower lifter (Each additional)

131350C

0.1

D - Lifters (All)

131350D

0.2

7

. BRIDGE AND/OR CAP, CAM FOLLOWER LIFTER (ONE CYLINDER) - REPLACE

1313600

5.2

INC : R & I Cylinder head ass'y, camshaft, Engine adjust.

C - One cylinder cam follower bridge (Each additional)

131360C

0.1

D - Bridges (All)

131360D

0.2

8

. SENSOR, ENGINE COOLANT TEMP - REPLACE

1314100

0.3

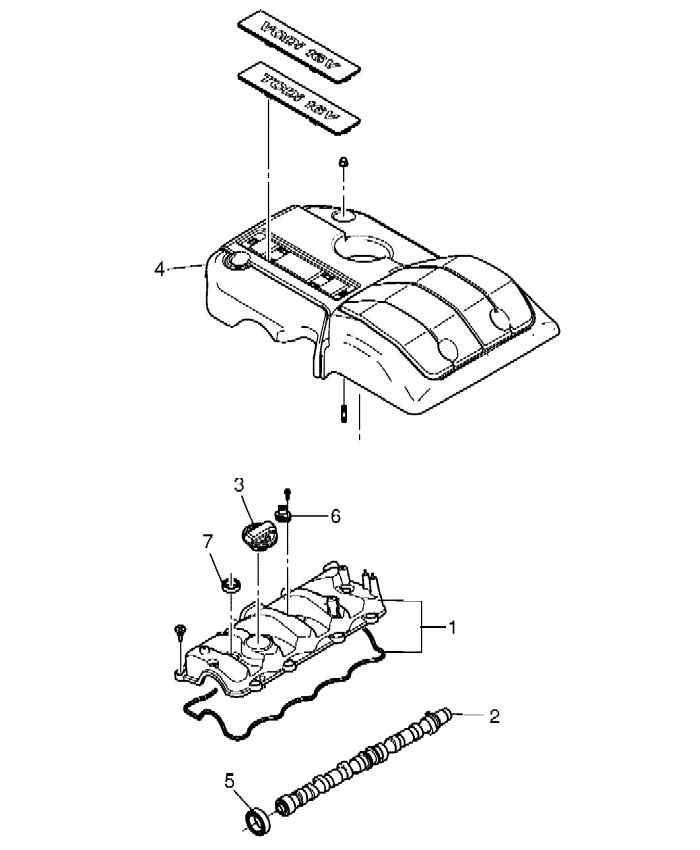

1

. COVER AND/OR GASKET, CAMSHAFT HOUSING (ONE PIECE) - REPLACE

1322100

1.5

2

. CAMSHAFT, EXHAUST/INTAKE - REPLACE

1322400

2.9

INC : R & I Camshaft gear, Ignition timing adjust.

3

. CAP, OIL FILLER - REPLACE

1322700

0.2

4

. COVER, CAMSHAFT UPPER - REPLACE

1322800

0.2

5

. OIL SEAL, CAMSHAFT - REPLACE

1323000

1.4

6

. PLUG, CAMSHAFT COVER OPENING - REPLACE

1323100

0.2

A - Replace each additional

132310A

0.1

B - Replace All

132310B

0.1

7

. OIL SEAL, CAMSHAFT COVER - REPLACE

1323200

0.4

A - Replace each additional

132320A

0.2

B - Replace All

132320B

0.4

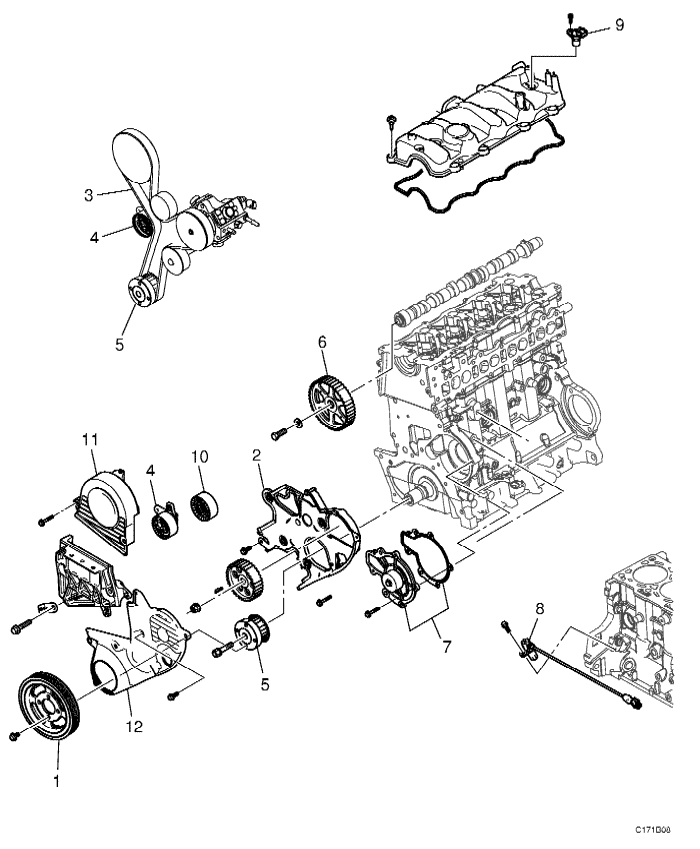

1

. PULLEY, CRANKSHAFT - REPLACE

1332100

0.5

2

. COVER TIMING BELT REAR - REPLACE

1332300

2.0

3

. BELT, TIMING - REPLACE

1332500

1.8

. BELT, TIMING - ADJUST

1332700

1.8

4

. TENSIONER, TIMING BELT - REPLACE

1332900

1.9

INC : R & I Timing belt, Engine adjust.

5

. SPROCKET, CRANKSHAFT TIMING - REPLACE

1333100

1.9

INC : R & I Timing belt, Engine adjust.

6

. SPROCKET, CAMSHAFT TIMING - REPLACE

1333300

1.9

INC : R & I Timing belt, Engine adjust.

7

. PUMP AND/OR GASKET, COOLANT - REPLACE

1333500

2.2

8

. SENSOR, CRANKSHAFT POSITION - REPLACE

1333700

0.4

A - With Transfer Case

133370A

1.4

9

. SENSOR, CAMSHAFT POSITION - REPLACE

1333800

0.3

10

. PULLEY, IDLER - REPLACE

1333900

1.9

11

. COVER, CAMSHAFT DRIVE BELT (UPPER) - REPLACE

1334100

0.3

12

. COVER, CAMSHAFT DRIVE BELT (LOWER) - REPLACE

1334200

0.7

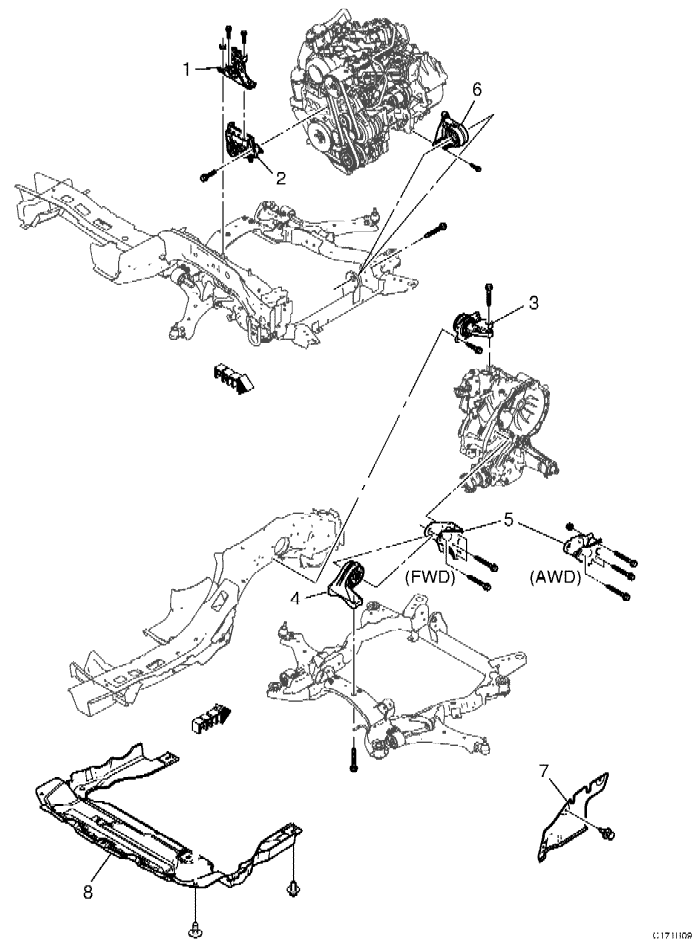

1

. MOUNT, ENGINE (RH-FRONT) - REPLACE

1380100

0.8

2

. BRACKET, ENGINE MOUNT (RH-FRONT) - REPLACE

1380300

1.8

3

. MOUNT, TRANSAXLE (LH-FRONT) - REPLACE

1380500

1.3

4

. MOUNT, TRANSAXLE (CENTER-REAR) - REPLACE

1380700

0.5

5

. BRACKET, TRANSAXLE MOUNT - REPLACE

1380900

0.5

6

. MOUNT, TRANSAXLE (CENTER-FRONT) - REPLACE

1381200

0.6

7

. SHIELD, SPLASH - REPLACE

Right

1382100

0.2

Left

1382200

0.2

Both

1382400

0.3

8

. COVER, ENGINE LOWER - REPLACE

1382800

0.3
