7. AIR CONDITIONER

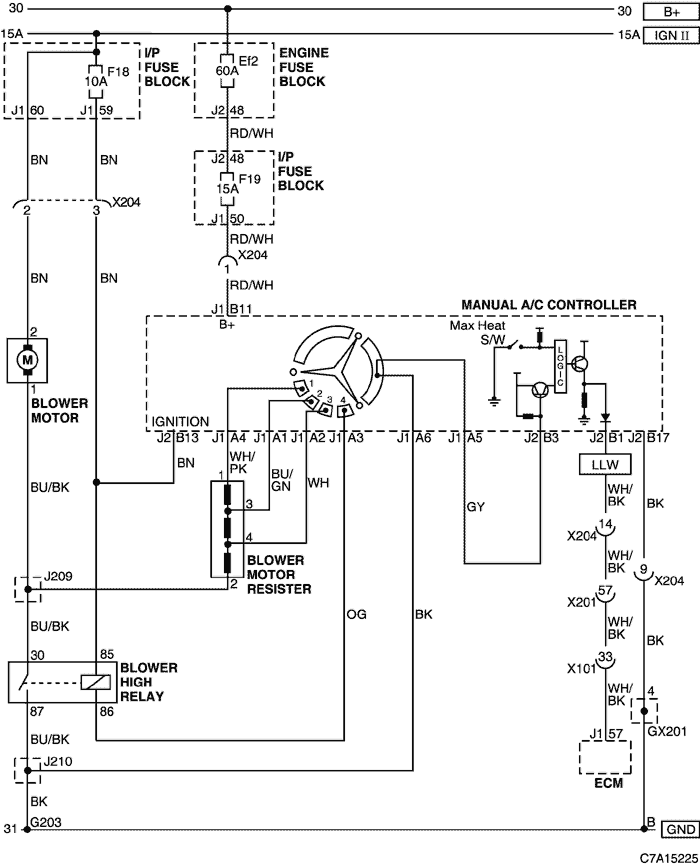

1) AIR CONDITIONER CONTROL SWITCH & BLOWER MOTOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X101 (36 Pin, Black)Engine - BodyBehind the Engine Fuse Block
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar
X204 (16 Pin, Black)I.P - FATCBehind the FATC
GX201 (Black/Gray)I/PBehind Steering Column - Lower
G203FATCInside the left instrument panel

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics


W/H ENGINE (LLW)

Display graphicTranslations of text in graphics

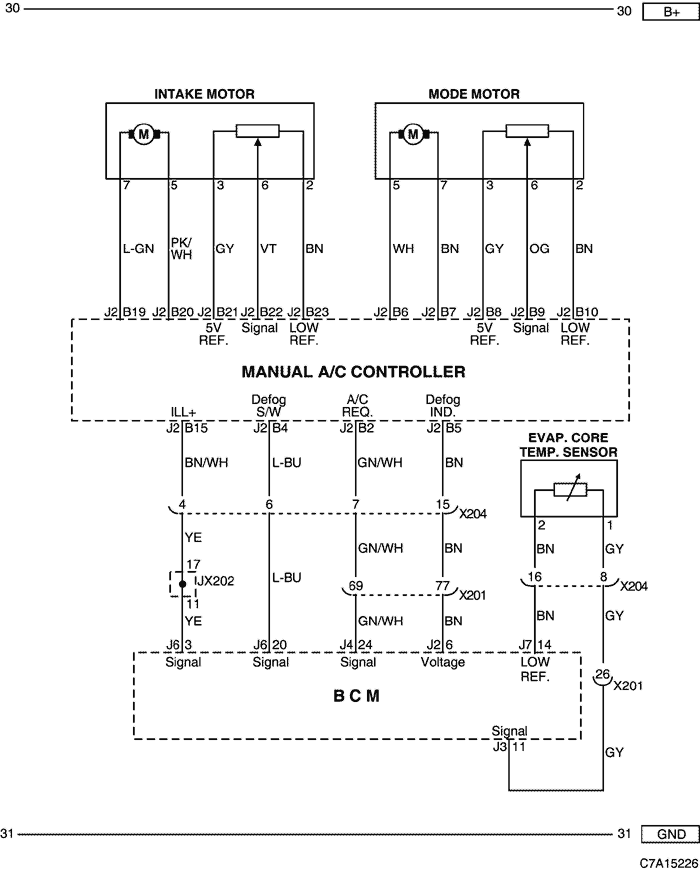

2) INTAKE MOTOR, MODE MOTOR & EVAP CORE TEMP. SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar
X204 (16 Pin, Black)I.P - FATCBehind the FATC

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H BODY

Display graphicTranslations of text in graphics


W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics
