41. GMLAN CIRCUIT

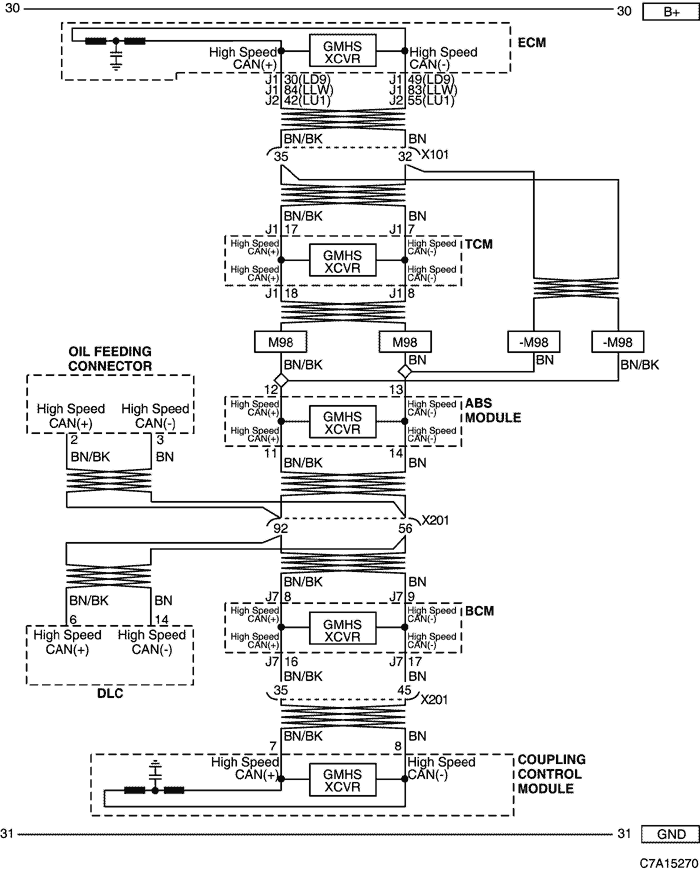

1) HIGH SPEED CAN CIRCUIT : AWD
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X101 (36 Pin, Black) | Engine - Body | Behind the Engine Fuse Block |
| X201 (92 Pin, Black) | Body - I.P | Below to the "A" pillar |

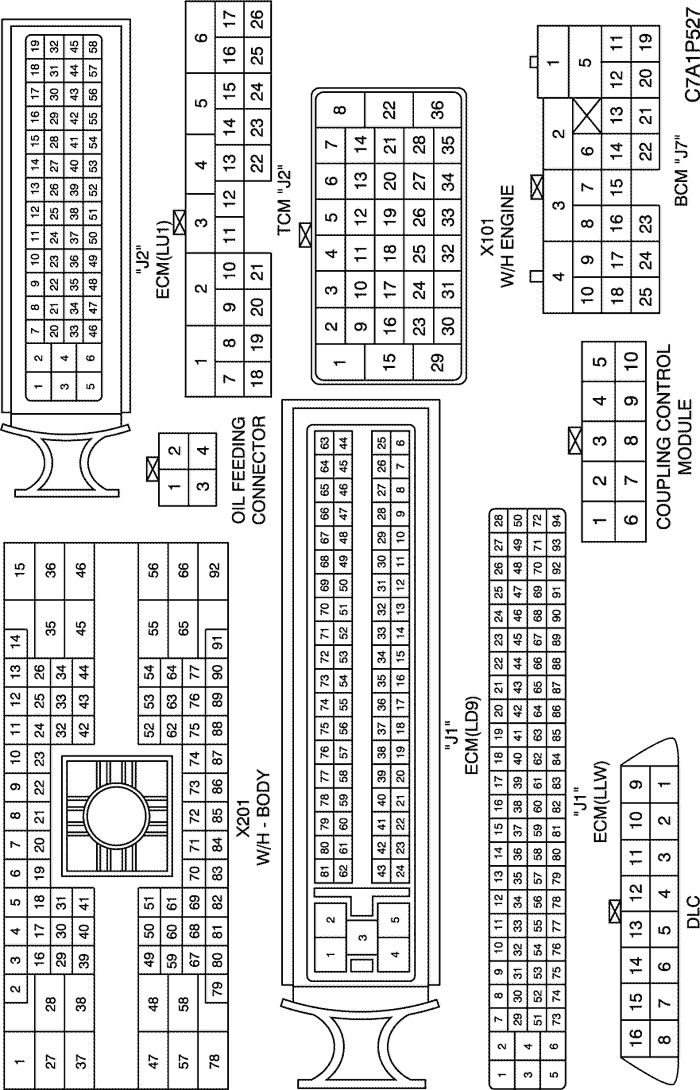

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
W/H BODY

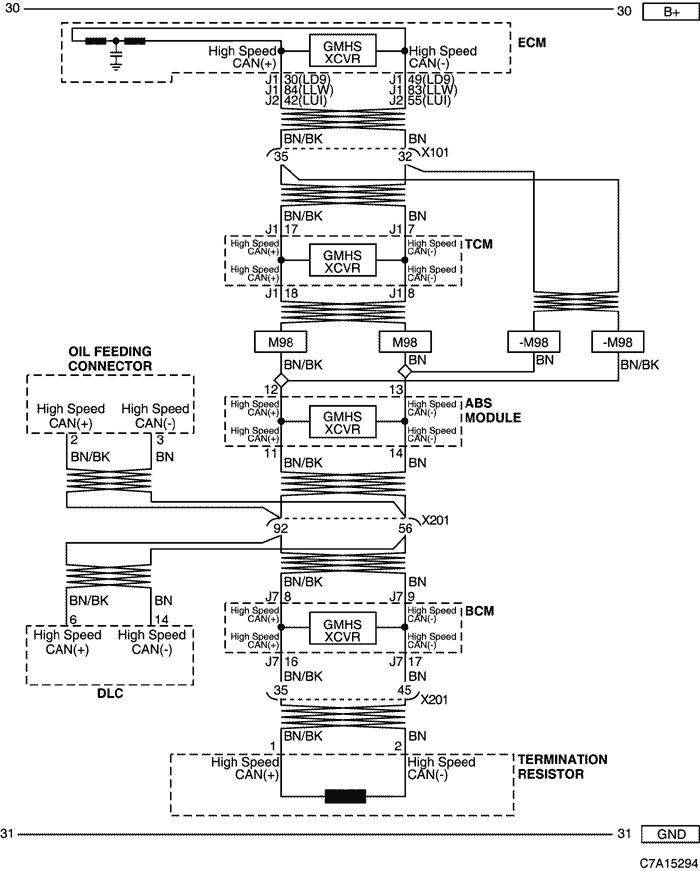

2) HIGH SPEED CAN CIRCUIT : FWD
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X101 (36 Pin, Black) | Engine - Body | Behind the Engine Fuse Block |
| X201 (92 Pin, Black) | Body - I.P | Below to the "A" pillar |

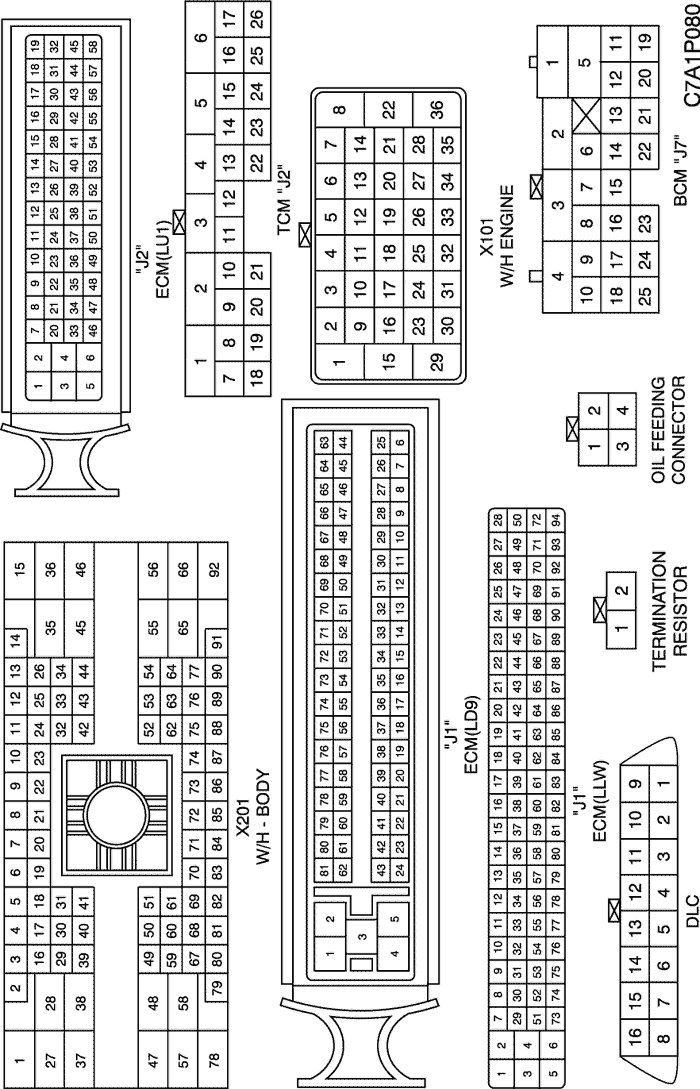

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
W/H BODY

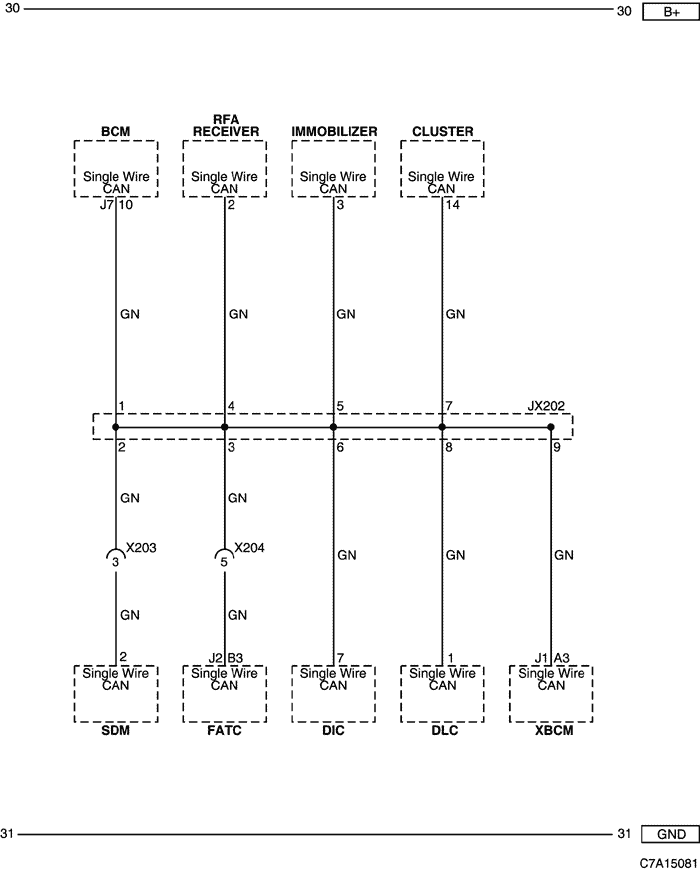

3) SINGLE WIRE CAN CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X203 (6 Pin, Colorless) | I.P - Air Bag | Below the floor console |
| X204 (16 Pin, Black) | I.P - FATC | Behind the FATC |

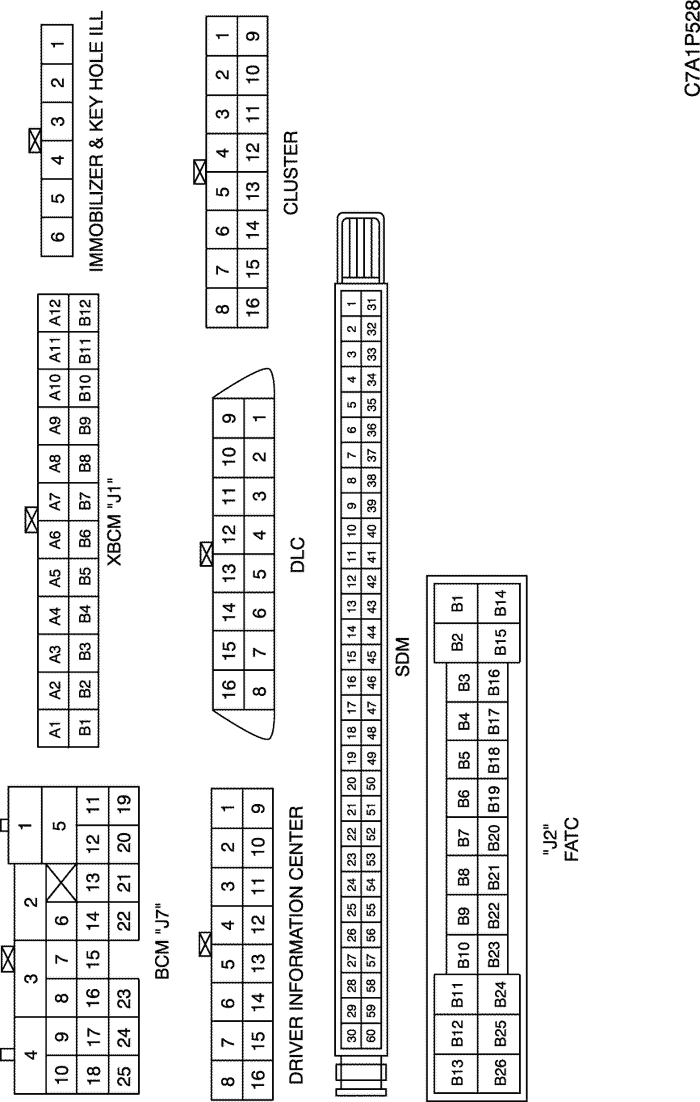

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H INSTRUMENT PANEL
W/H AIR BAG
d. SPLICE PACK
JX202 (BLACK/PINK)
