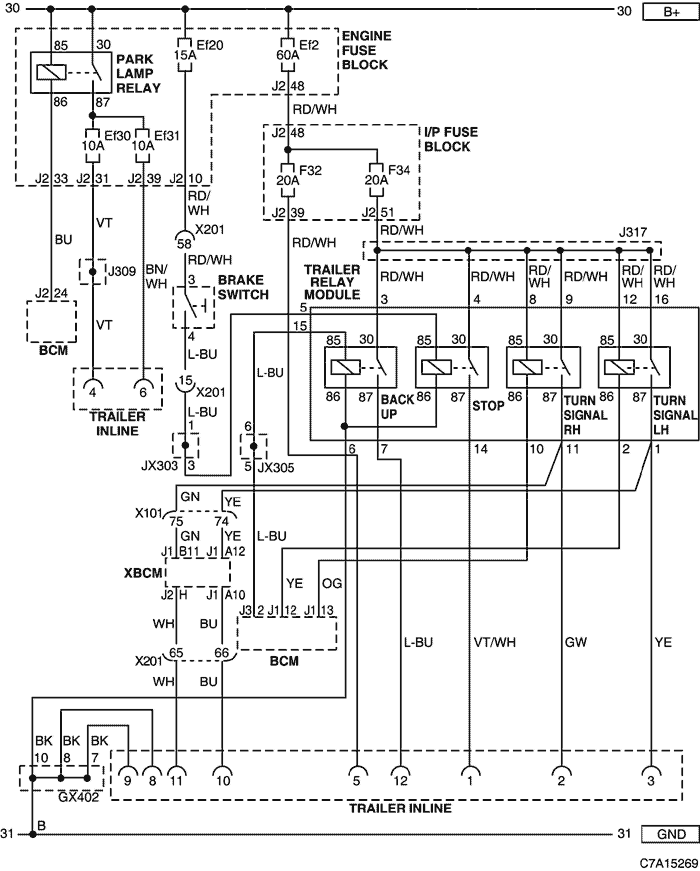

40. TRAILER SYSTEM CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X201 (96 Pin, Black)Body - I.PBelow to the "A" Pillar
GX402 (Black/Gray)BodyRight the luggage compartment

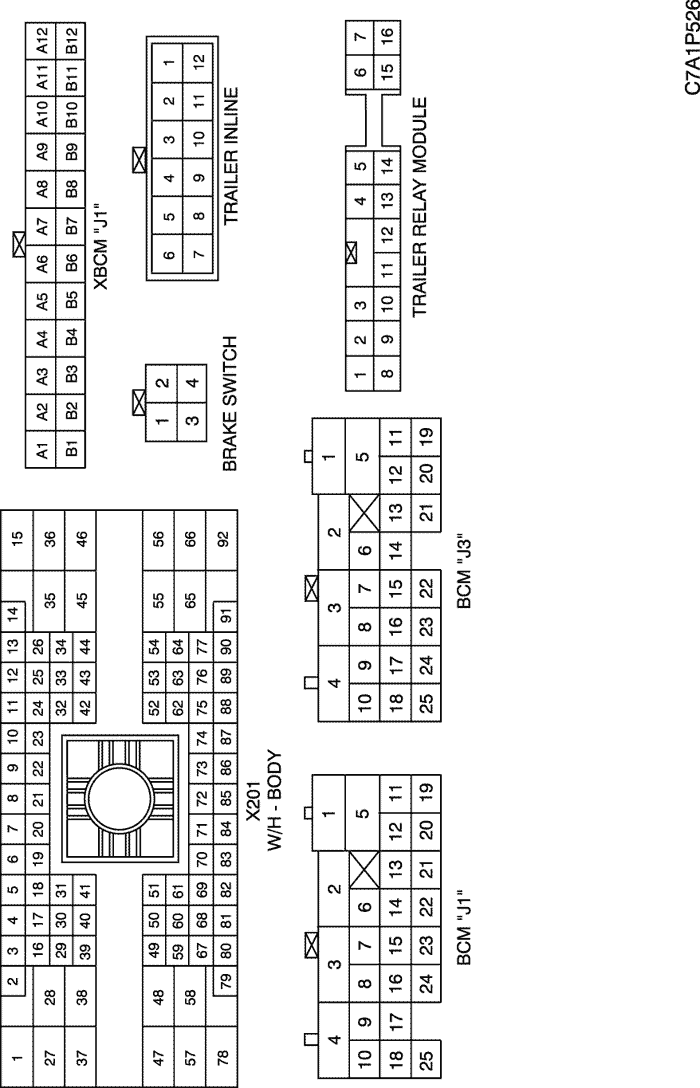

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H BODY

Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics
