3. ECM (ENGINE CONTROL MODULE) : EDC16C39 (2.0 DIESEL)

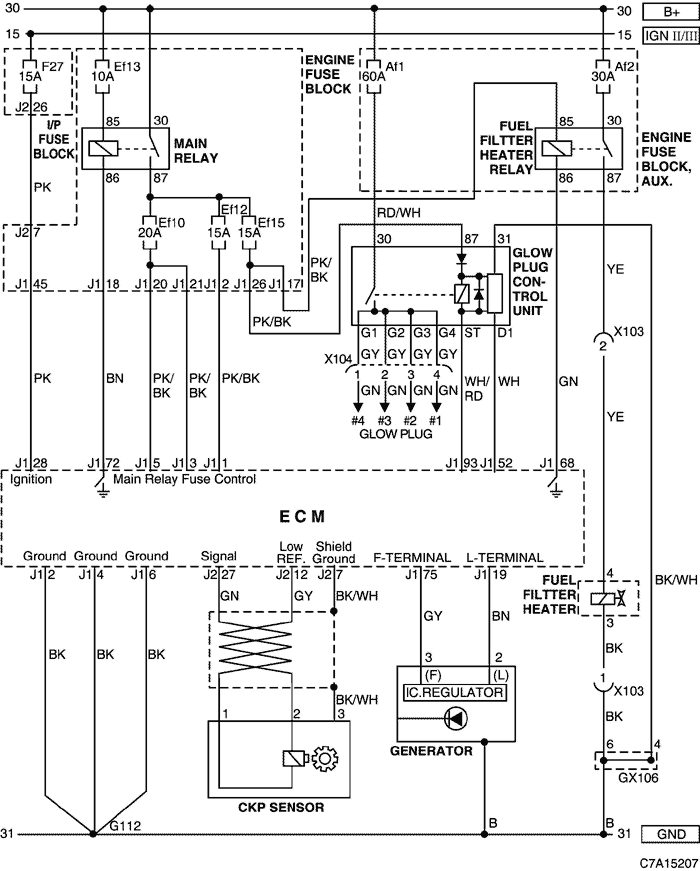

1) BATTERY POWER SUPPLY, GROUND, GLOW PLUG CONTROL UNIT, FUEL FILTTER HEATER, GENERATOR & CKP SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X103 (8 Pin, Black)Engine - Fuel Heater (DSL)Right side upper Cylinder
X104 (4 Pin, Black)Engine - Glow Plug (DSL)Left side upper Cylinder
GX106 (Black/Gray)Engine (DSL/HFV6)Upper the Cylinder Head

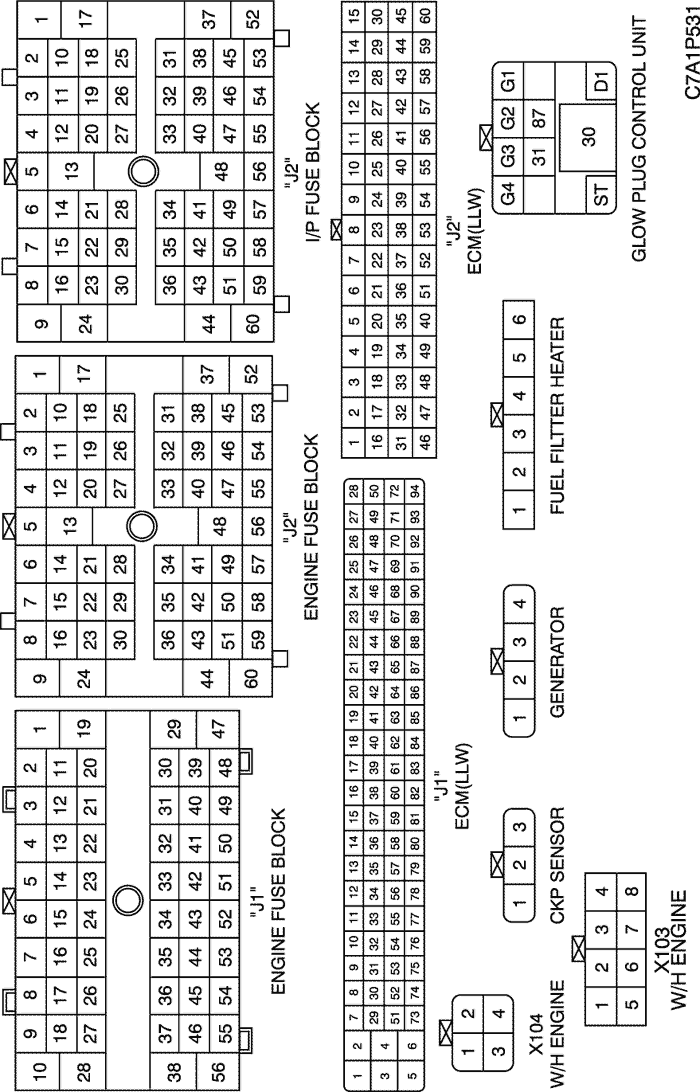

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LLW)

Display graphicTranslations of text in graphics


W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics

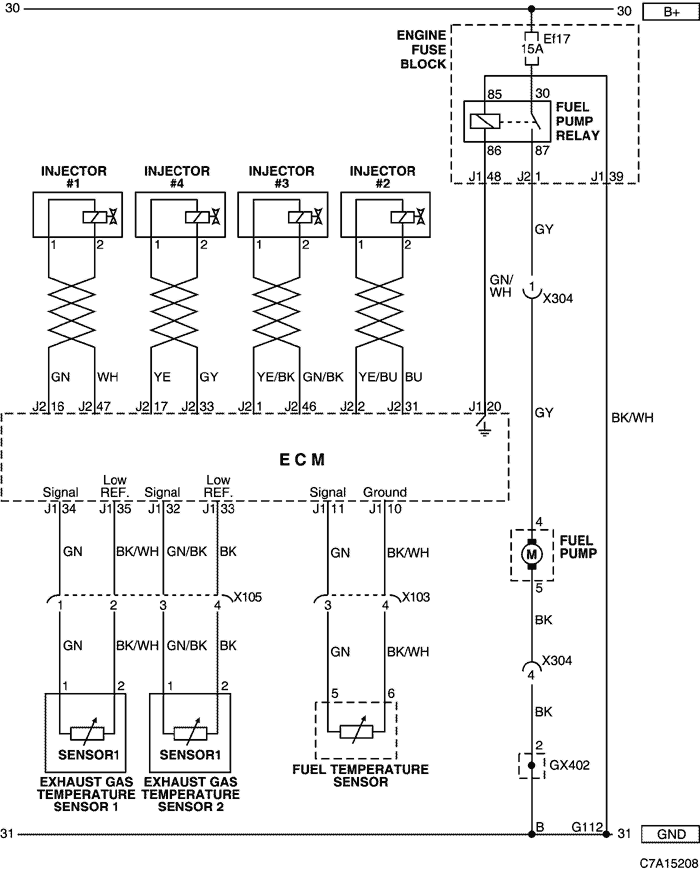

2) INJECTOR & SENSOR (EXHAUST GAS TEMPERATURE, FUEL TEMPERATURE) CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X103 (8 Pin, Black)Engine - Fuel Heater (DSL)Right side upper Cylinder
X105 (4 Pin, Black)Engine - Exhaust Gas Temp. Sensor (DSL)Behind the Cylinder Head
X304 (12 Pin, Black)Fuel Sender - BodyBelow the right "C" pillar
G112 (Black/Gray)Engine (DSL)On the Cylinder Block
GX402 (Black/Gray)BodyRight the luggage compartment

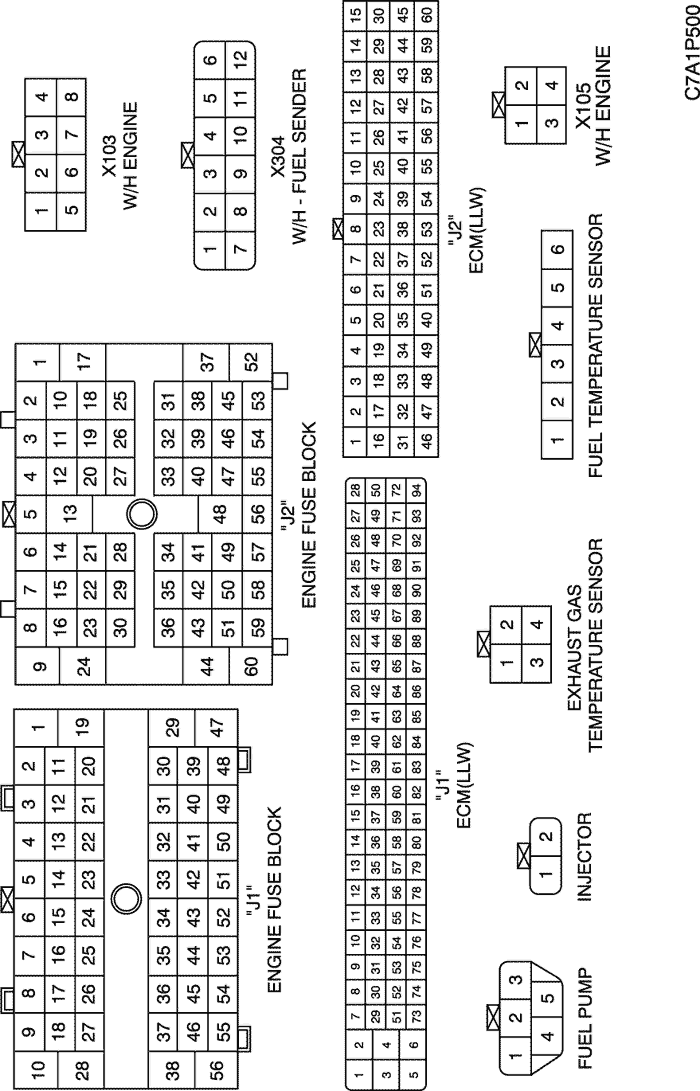

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LLW)

Display graphicTranslations of text in graphics


W/H BODY

Display graphicTranslations of text in graphics

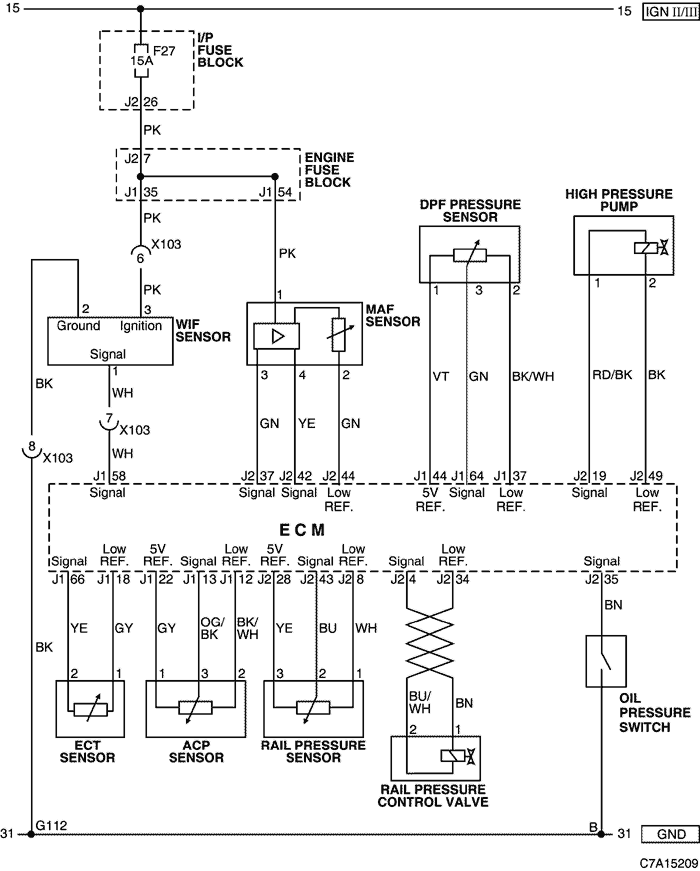

3) SENSOR (WIF, MAF, DPF PRESSURE, HIGH PRESSURE, RAIL PRESSURE, ECT,ACP) & SWITCH (OIL PRESSURE), RAIL PRESSURE CONTROL VALVE CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X103 (8 Pin, Black)Engine - Fuel Heater (DSL)Right side upper Cylinder
GX106 (Black/Gray)Engine (DSL/HFV6)Upper the Cylinder Head

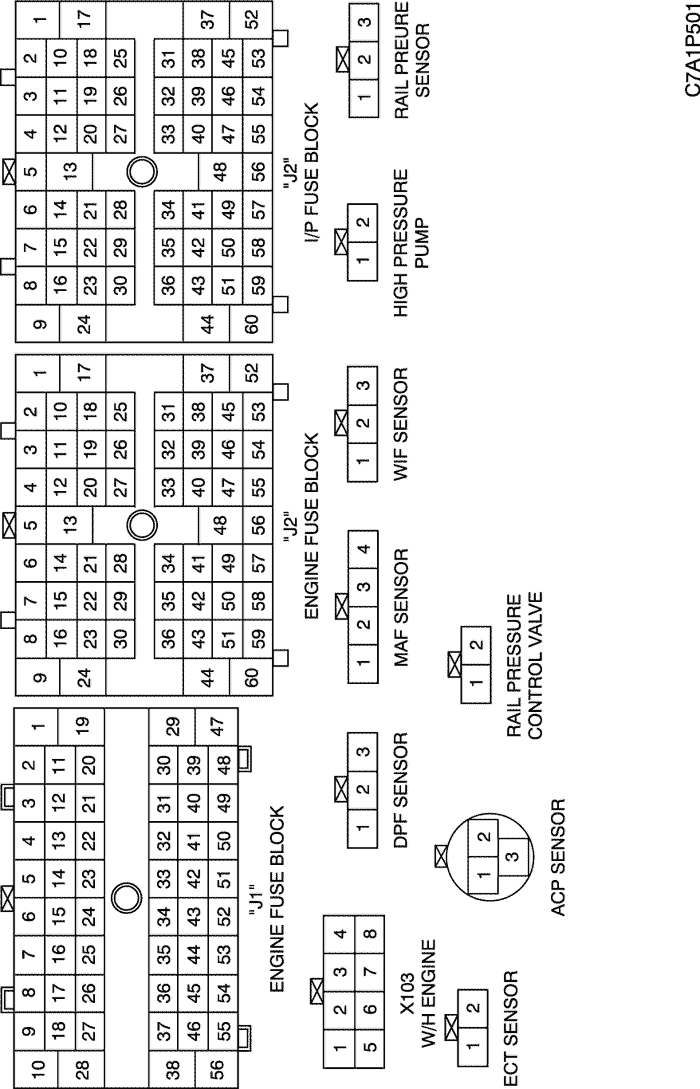

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LLW)

Display graphicTranslations of text in graphics


W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics

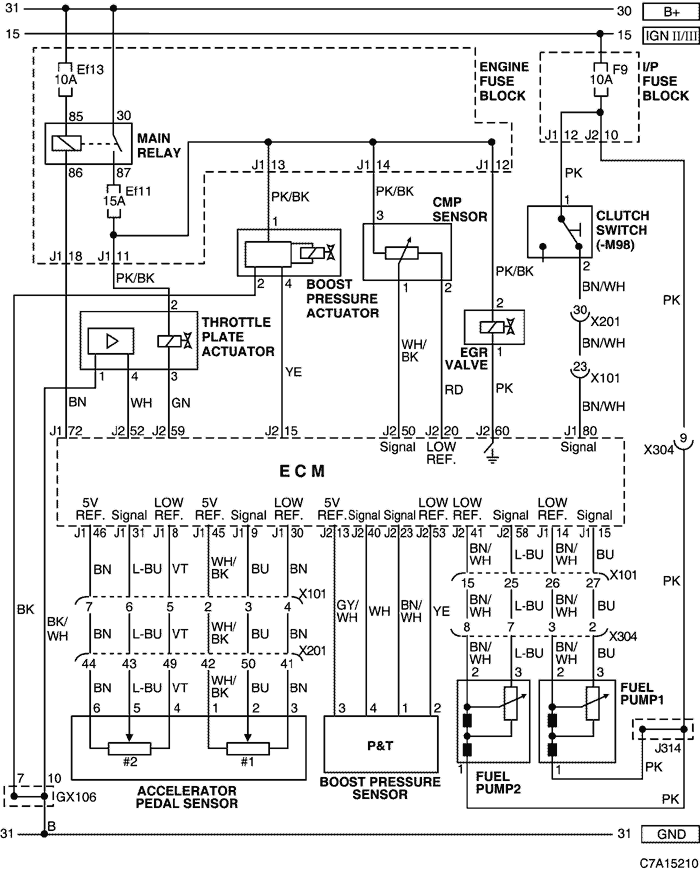

4) SENSOR (ACCELERATOR PEDAL, BOOST PRESSURE, FUEL TANK LEVEL,CMP), ACTUATOR (THROTTLE PLATE, BOOST PRESSURE), FUEL PUMP, CLUTCH SWITCH & EGR VALVE CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X101 (36 Pin, Black)Engine - BodyBehind the Engine Fuse Block
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar
X304 (12 Pin, Black)Fuel Sender - BodyBelow the right "C" pillar
GX106 (Black/Gray)Engine (DSL/HFV6)Upper the Cylinder Head

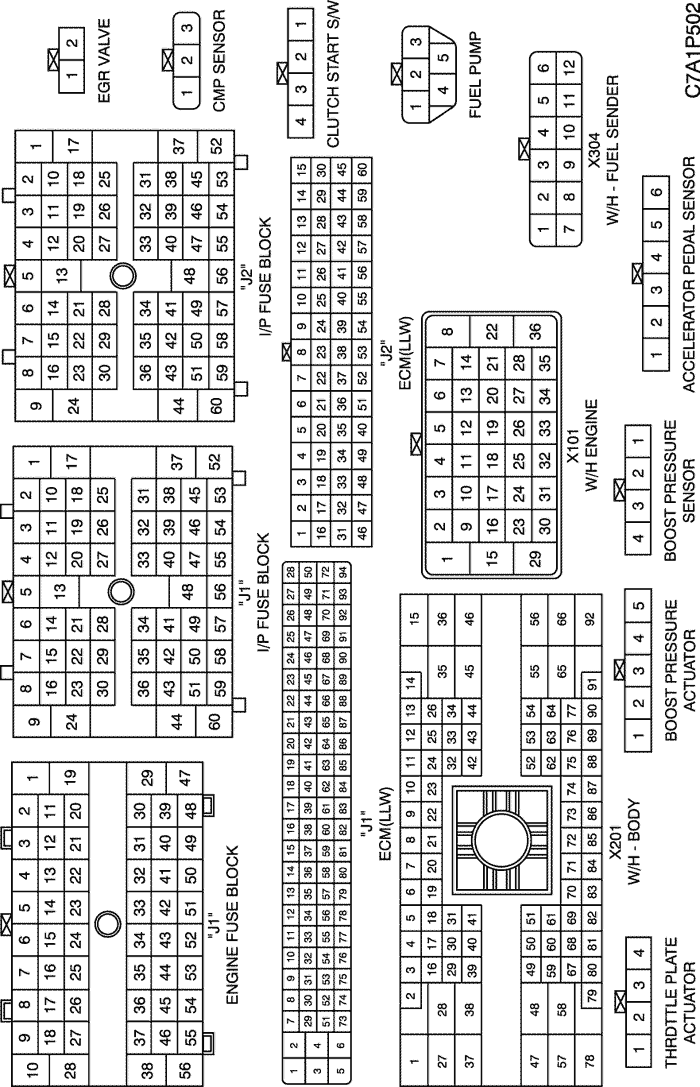

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LLW)

Display graphicTranslations of text in graphics


W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics

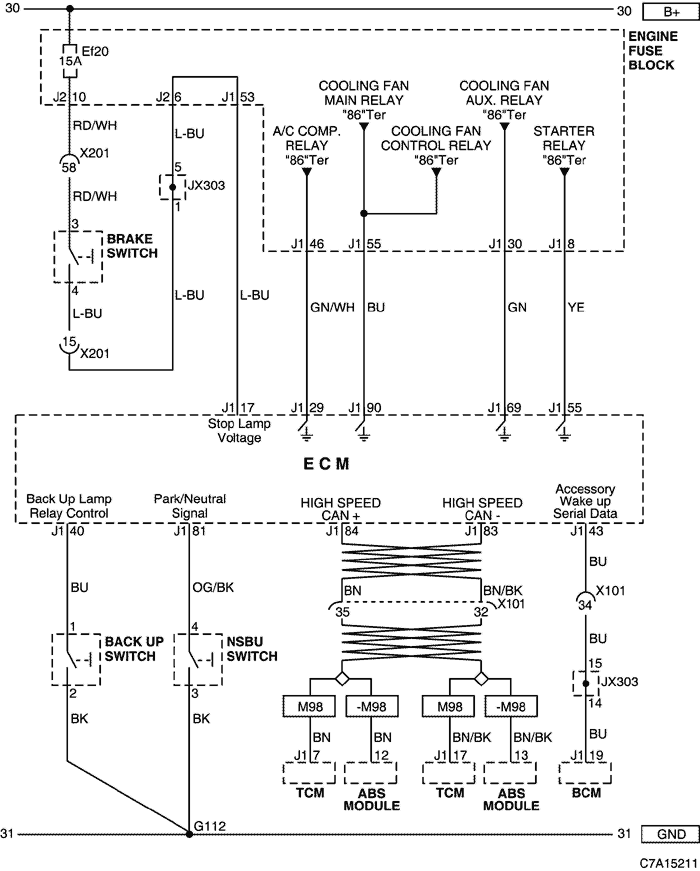

5) BRAKE SWITCH, BACK UP SWITCH, NSBU SWITCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X101 (36 Pin, Black)Engine - BodyBehind the Engine Fuse Block
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar
GX106 (Black/Gray)Engine (DSL/HFV6)Upper the Cylinder Head
G112 (Black/Gray)Engine (DSL)On the Cylinder Block

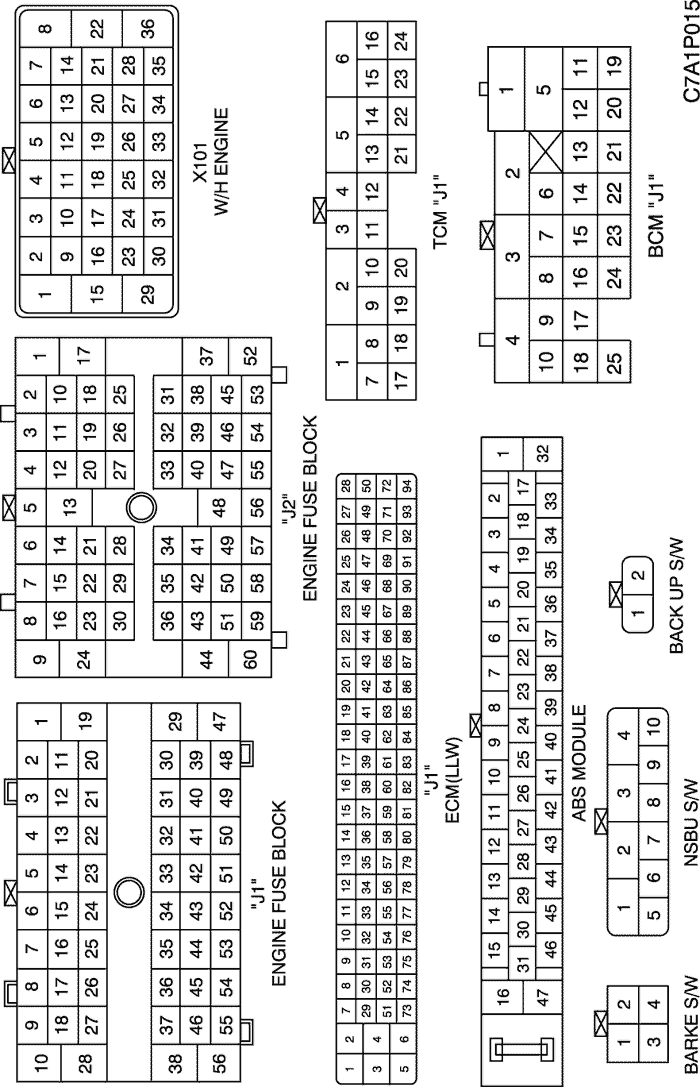

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LLW)

Display graphicTranslations of text in graphics


W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX303 (BLACK/BROWN)

Display graphicTranslations of text in graphics

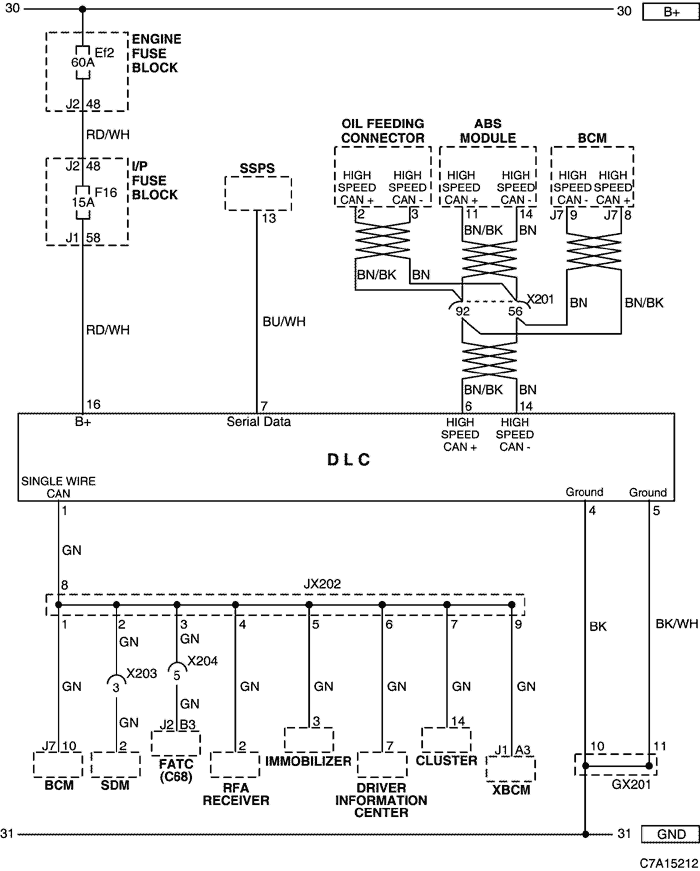

6) DLC CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar
X203 (6 Pin, Colorless)I.P - Air BagBelow the floor console
X204 (16 Pin, Black)I.P - FATCBehind the FATC
GX201 (Black/Gray)I/PBehind Steering Column - Lower

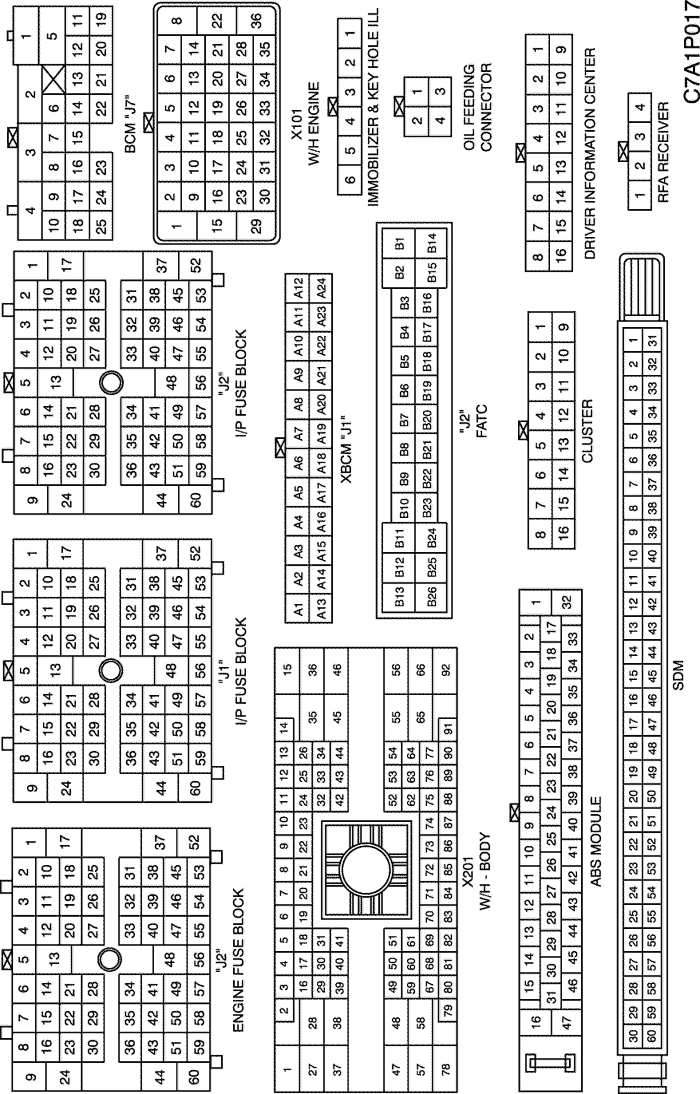

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics


W/H BODY

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX202 (BLACK/PINK)

Display graphicTranslations of text in graphics
