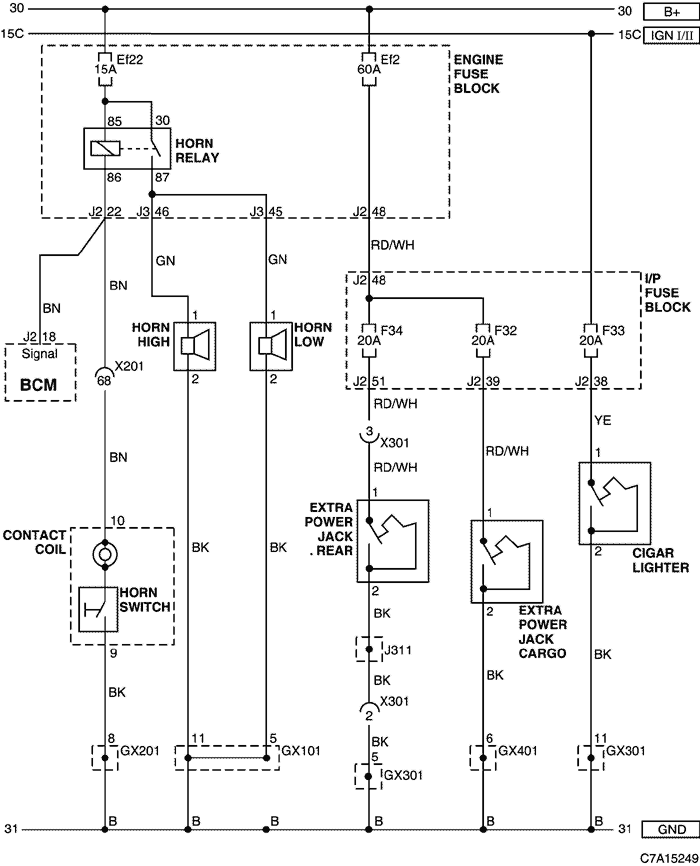

24. HORN, EXTRA POWER JACK & CIGAR LIGHTER CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillarX301 (12 Pin, Colorless)
X301 (12 Pin, Colorless)Console - BodyBelow the floor console
GX101 (Black/Gray)FrontBehind the left HeadLamp
GX102 (Black/Gray)FrontBehind the right HeadLamp
GX201 (Black/Gray)I/PBehind Steering Column - Lower
GX301 (Black/Gray)BodyUnder the right seat cushion
GX401 (Black/Gray)BodyRight the luggage compartment

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H FRONT

Display graphicTranslations of text in graphics


W/H BODY

Display graphicTranslations of text in graphics


W/H CONSOLE

Display graphicTranslations of text in graphics
