22. POWER WINDOW CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
X501 (18 Pin, Gray)Body - Front LH DoorUnder the left "A" Pillar
X502 (18 Pin, Colorless)Body - Front LH DoorUnder the left "A" Pillar
X601 (18 Pin, Gray)Body - Front RH DoorUnder the right "A" Pillar
X701 (15 Pin, Colorless)Body - Rear LH DoorUnder the left "B" Pillar
X801 (15 Pin, Colorless)Body - Rear RH DoorUnder the right "B" Pillar
GX301 (Black/Gray)BodyUnder the right seat cushion
GX401 (Black/Gray)BodyRight the luggage compartment
GX402 (Black/Gray)BodyRight the luggage compartment

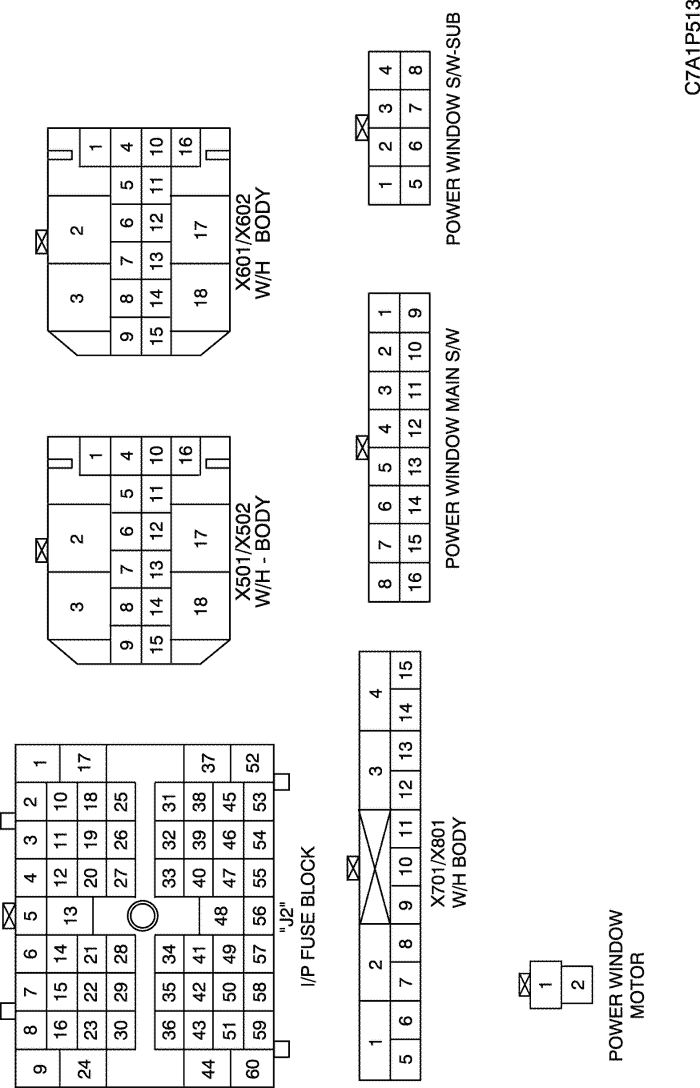

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H FRONT DOOR

Display graphicTranslations of text in graphics


W/H BODY

Display graphicTranslations of text in graphics


W/H REAR DOOR

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX305 (BLACK)

Display graphicTranslations of text in graphics
