2. ECM (ENGINE CONTROL MODULE) : ME7.9.9 (FAM II 2.4D)

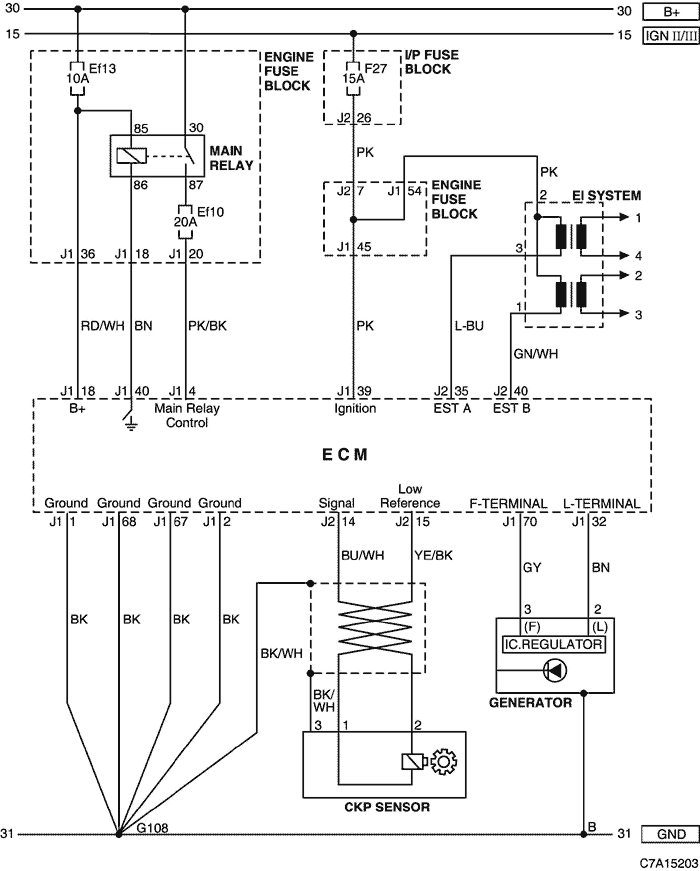

1) BATTERY POWER SUPPLY, GROUND, EI SYSTEM, GENERATOR & CKP SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
G108Engine (FAM II)On the Cylinder Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LD9)

Display graphicTranslations of text in graphics


W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics

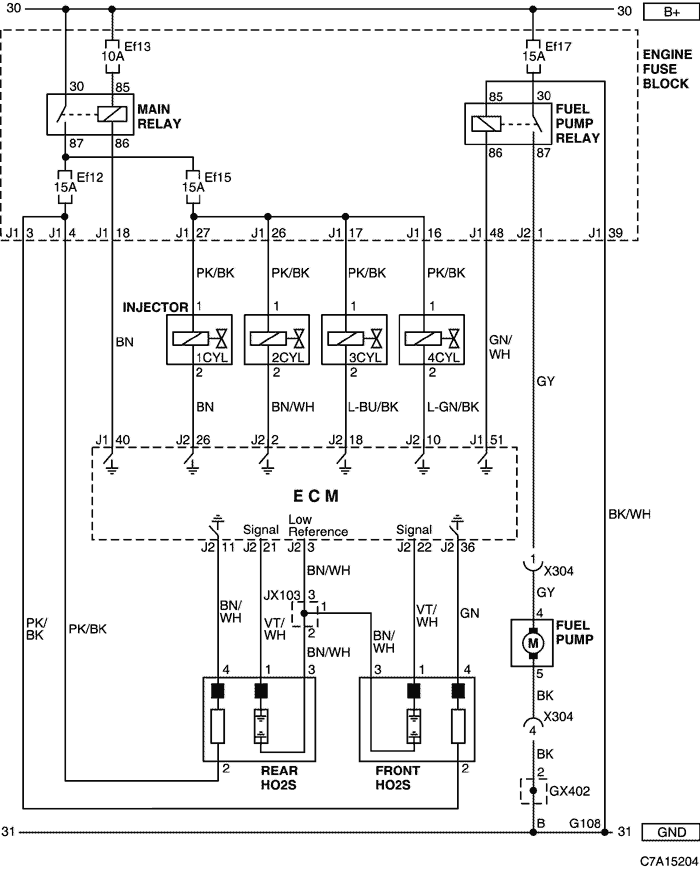

2) FUEL PUMP, INJECTOR & HEATED O2 SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X304 (12 Pin, Black)Fuel Sender - BodyBelow the right "C" pillar
G108Engine (FAM II)On the Cylinder Block
GX402 (Black/Gray)BodyRight the luggage compartment

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LD9)

Display graphicTranslations of text in graphics


W/H BODY

Display graphicTranslations of text in graphics

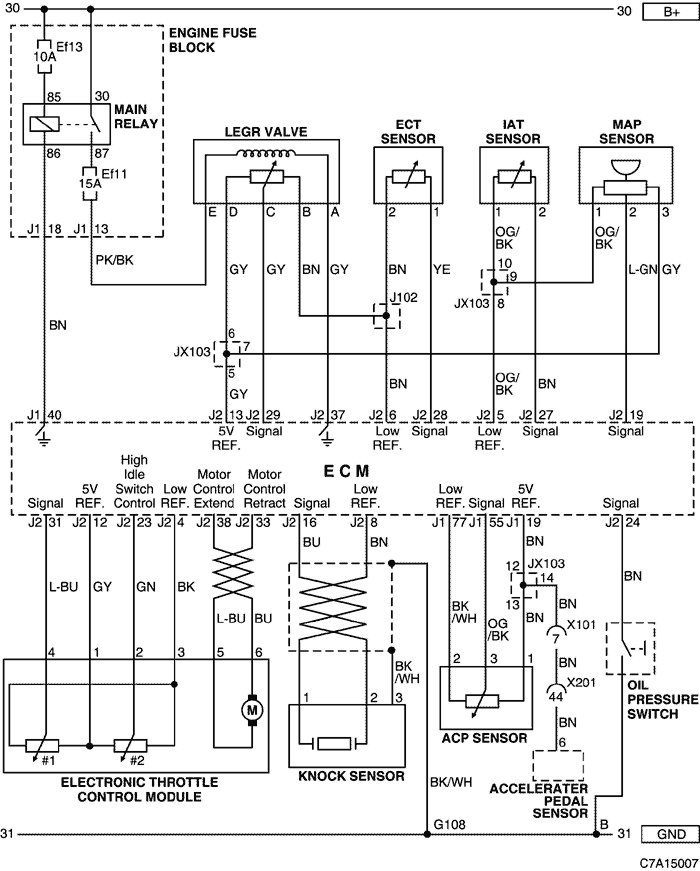

3) ETC MODULE, SENSOR (MAP, ECT, KNOCK, ACP & ACCELERATOR PEDAL), OIL PRESSURE SWITCH & LEGR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X101 (36 Pin, Black)Engine - BodyBehind the Engine Fuse Block
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar
G108Engine (FAM II)On the Cylinder Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LD9)

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX103 (BLACK)

Display graphicTranslations of text in graphics

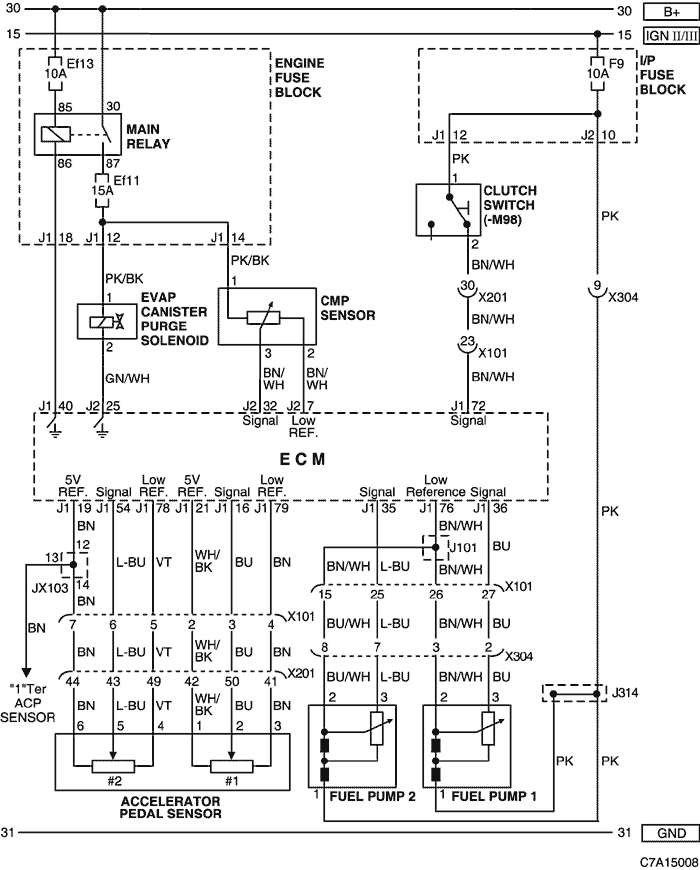

4) EVAP CANISTER PURGE SOLENOID, SNESOR (CMP, ACCELERATOR PEDAL, FUEL TANK LEVEL), FUEL PUMP & CLUTCH SWITCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X101 (36 Pin, Black)Engine - BodyBehind the Engine Fuse Block
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar
X304 (12 Pin, Black)Fuel Sender - BodyBelow the right "C" pillar

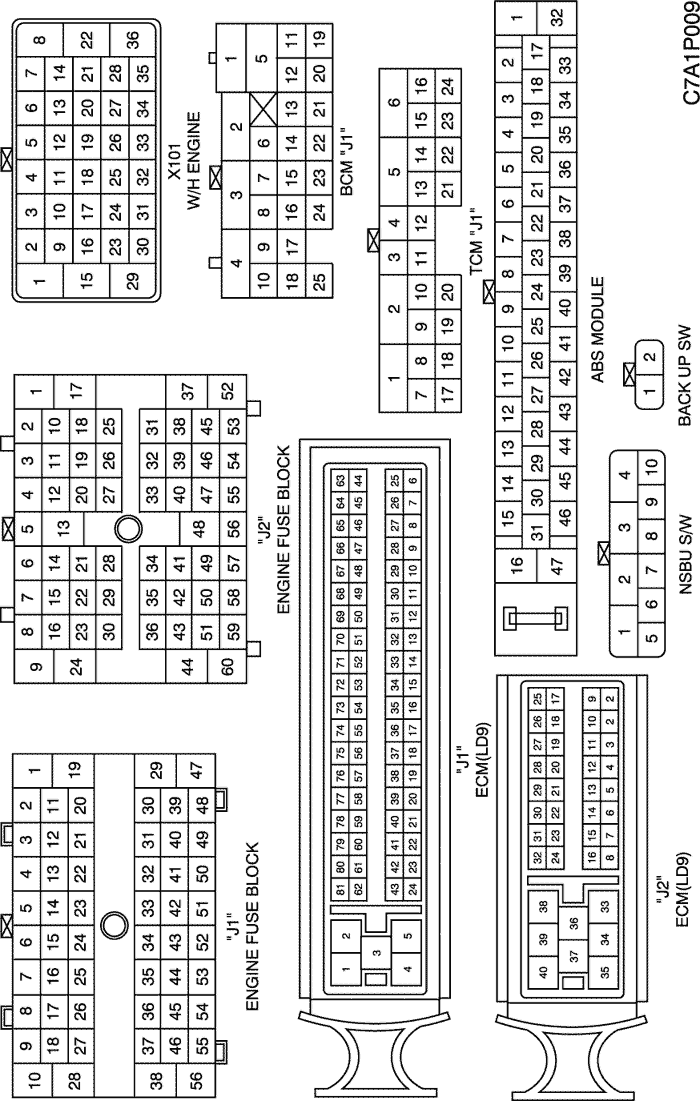

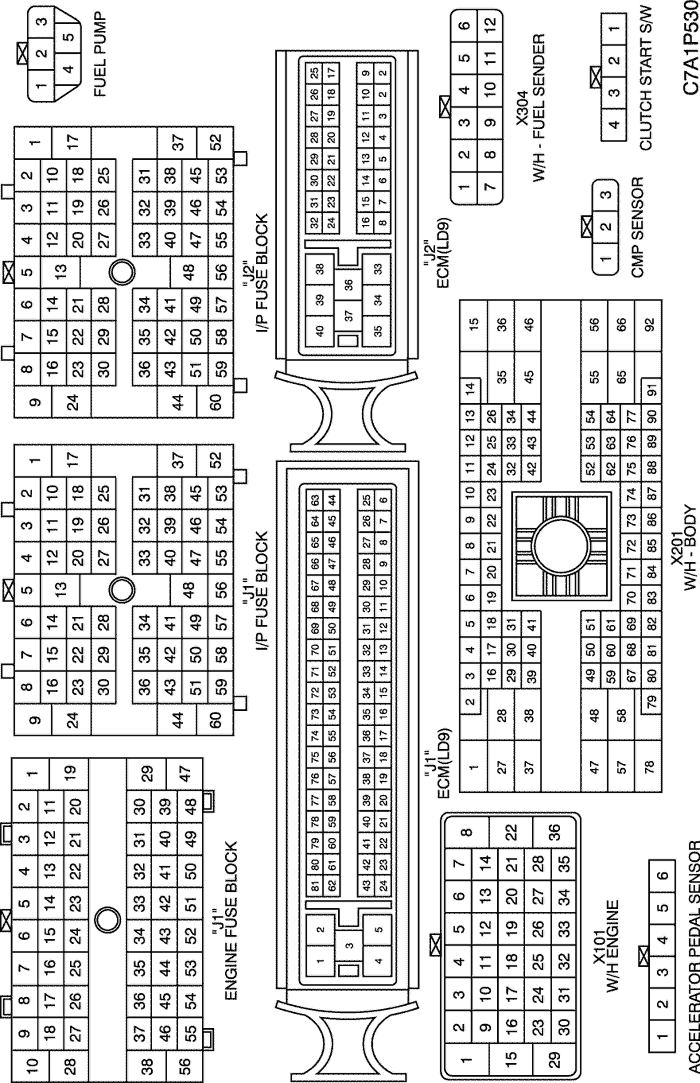

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LD9)

Display graphicTranslations of text in graphics


W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX103 (BLACK)

Display graphicTranslations of text in graphics

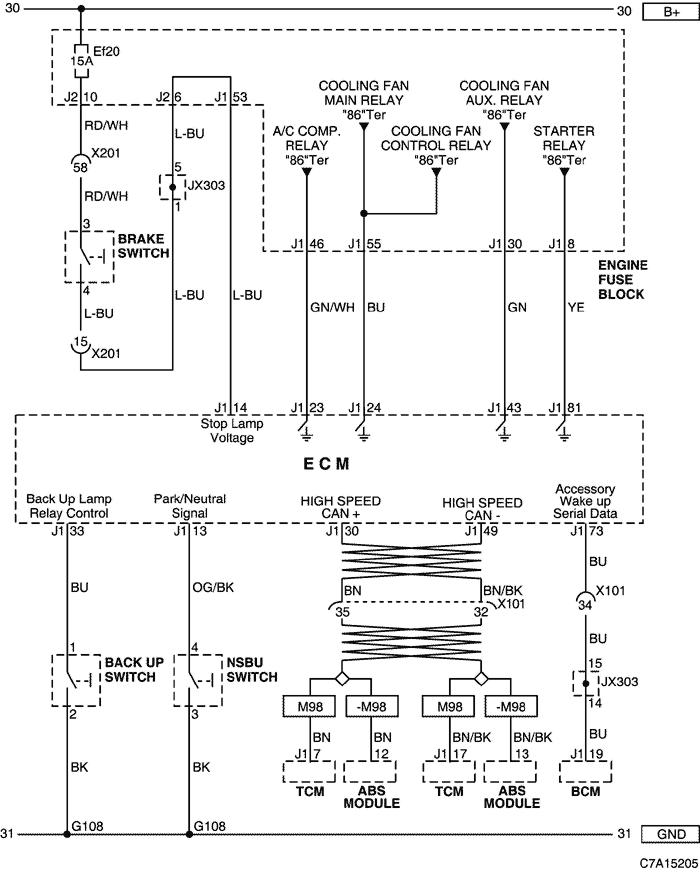

5) BRAKE SWITCH, BACK UP SWITCH, NSBU SWITCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X101 (36 Pin, Black)Engine - BodyBehind the Engine Fuse Block
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar
G108Engine (FAM II)On the Cylinder Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LD9)

Display graphicTranslations of text in graphics


W/H BODY

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX303 (BLACK/BROWN)

Display graphicTranslations of text in graphics

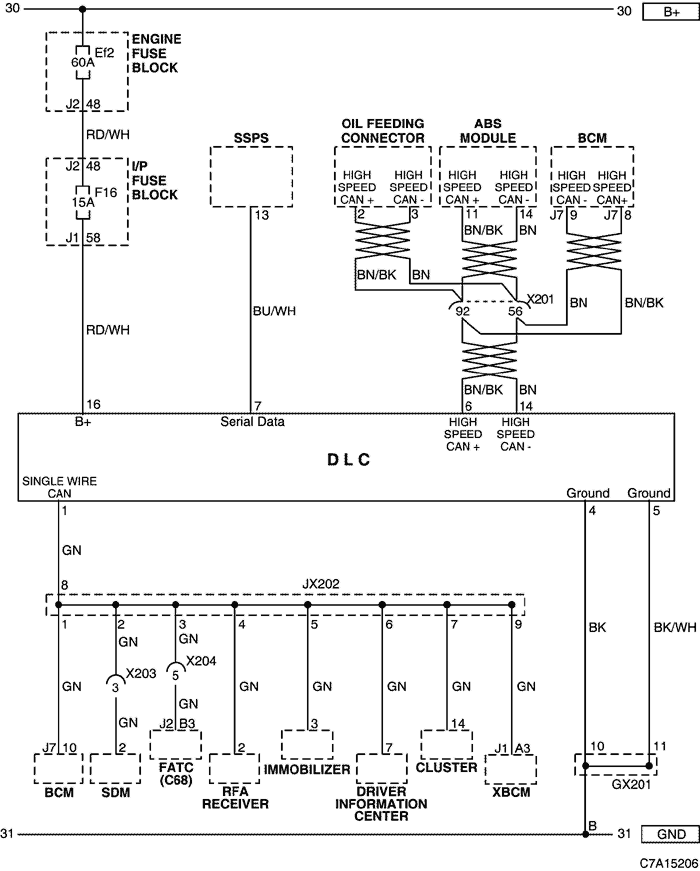

6) DLC CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar
X203 (6 Pin, Colorless)I.P - Air BagBelow the floor console
X204 (16 Pin, Black)I.P - FATCBehind the FATC
GX201 (Black/Gray)I/PBehind Steering Column - Lower

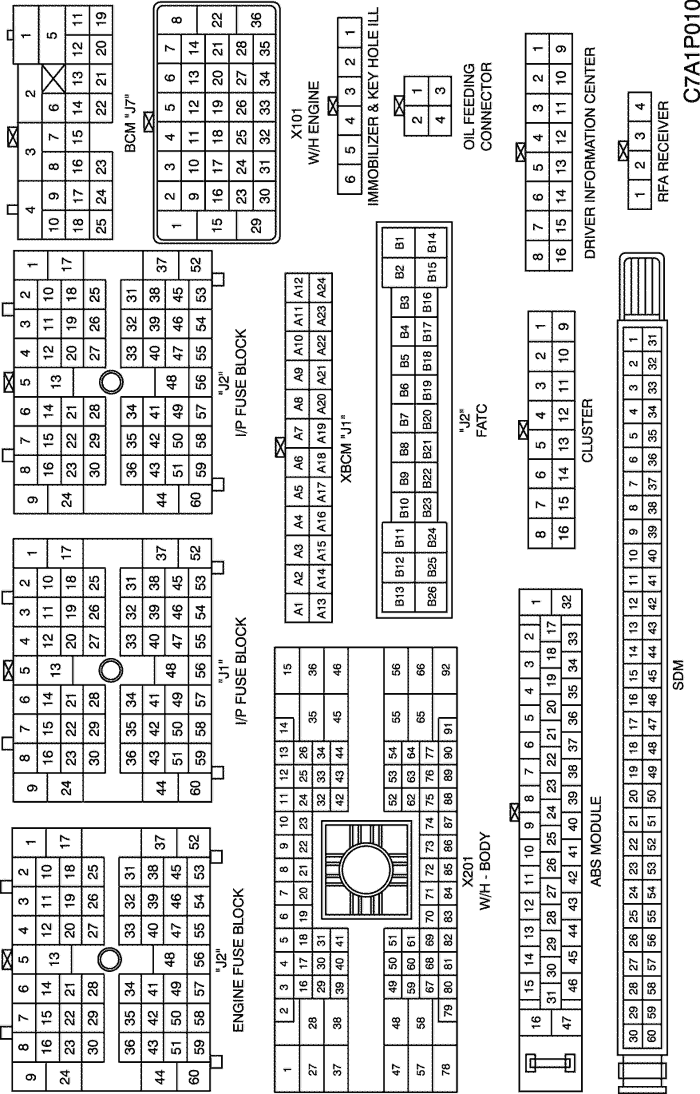

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H BODY

Display graphicTranslations of text in graphics


W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX202 (BLACK/PINK)

Display graphicTranslations of text in graphics
