18. INTERIOR LAMP CIRCUIT

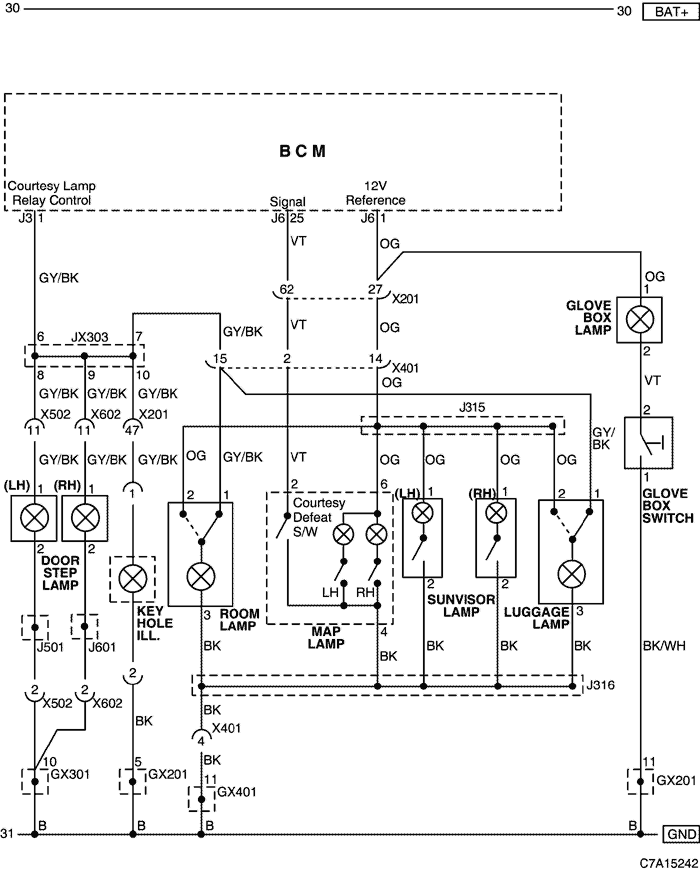

1) LAMPS (MAP, ROOM, DOOR STEP, SUNVISOR, LUGGAGE, GLOVE BOX, KEY HOLE) CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X201 (92 Pin, Black) | Body - I.P | Below to the "A" pillar |
| X401 (18 Pin, Colorless) | Roof - Body | Inside the left "C" pillar |
| X502 (18 Pin, Colorless) | Body - Front LH Door | Under the left "A" Pillar |
| X602 (18 Pin, Colorless) | Body - Front RH Door | Under the right "A" Pillar |
| GX201 (Black/Gray) | I/P | Behind Steering Column - Lower |
| GX301 (Black/Gray) | Body | Under the right seat cushion |
| GX401 (Black/Gray) | Body | Right the luggage compartment |

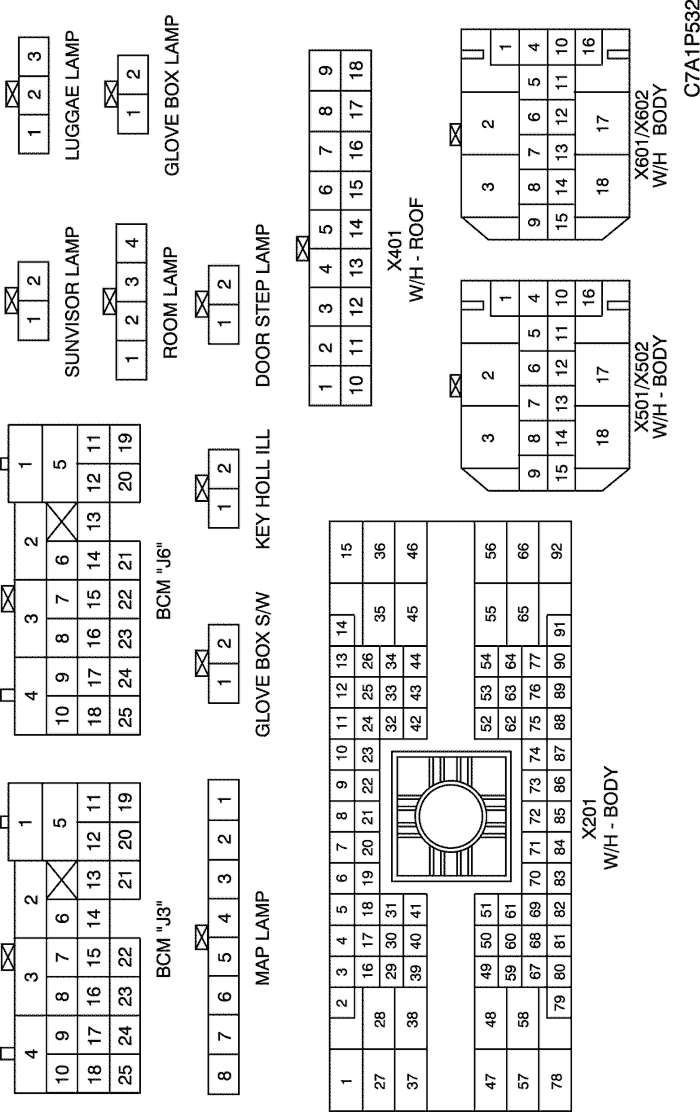

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H BODY
W/H ROOF
W/H FRONT DOOR
d. SPLICE PACK
JX303 (BLACK/BROWN)
