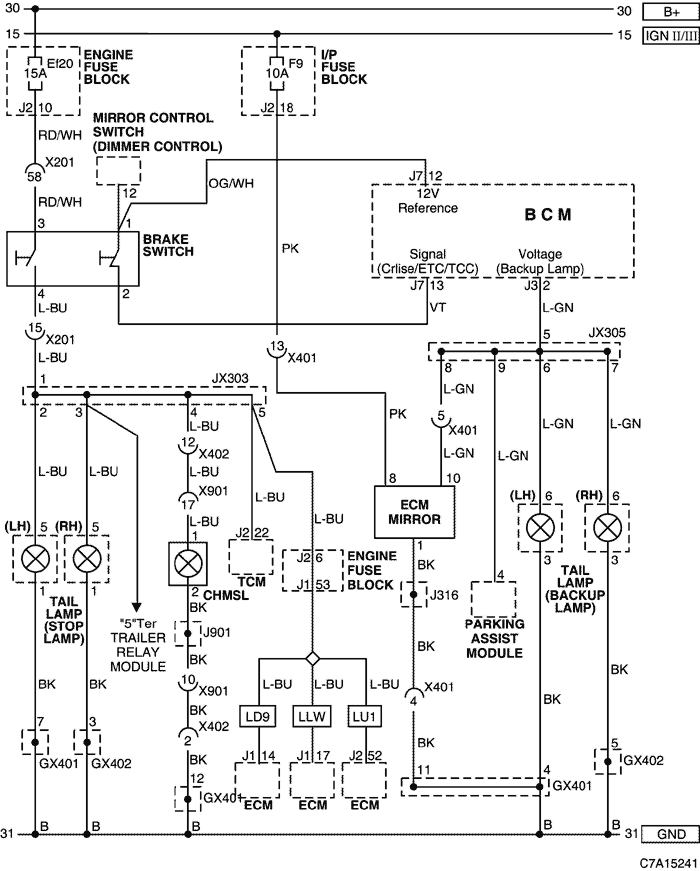

17. STOP LAMP, CENTER HIGH MOUNT STOP LAMP (CHMSL), BACK UP LAMP & ECM MIRROR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar
X401 (18 Pin, Colorless)Roof - BodyInside the left "C" pillar
X402 (20 Pin, Colorless)Lift Gate - BodyBehind the left "C" pillar
X901(14 Pin, Colorless)Lift Gate - Lift Gate JPRBehind the "2nd" Seat
GX401 (Black/Gray)BodyRight the luggage compartment
GX402 (Black/Gray)BodyRight the luggage compartment

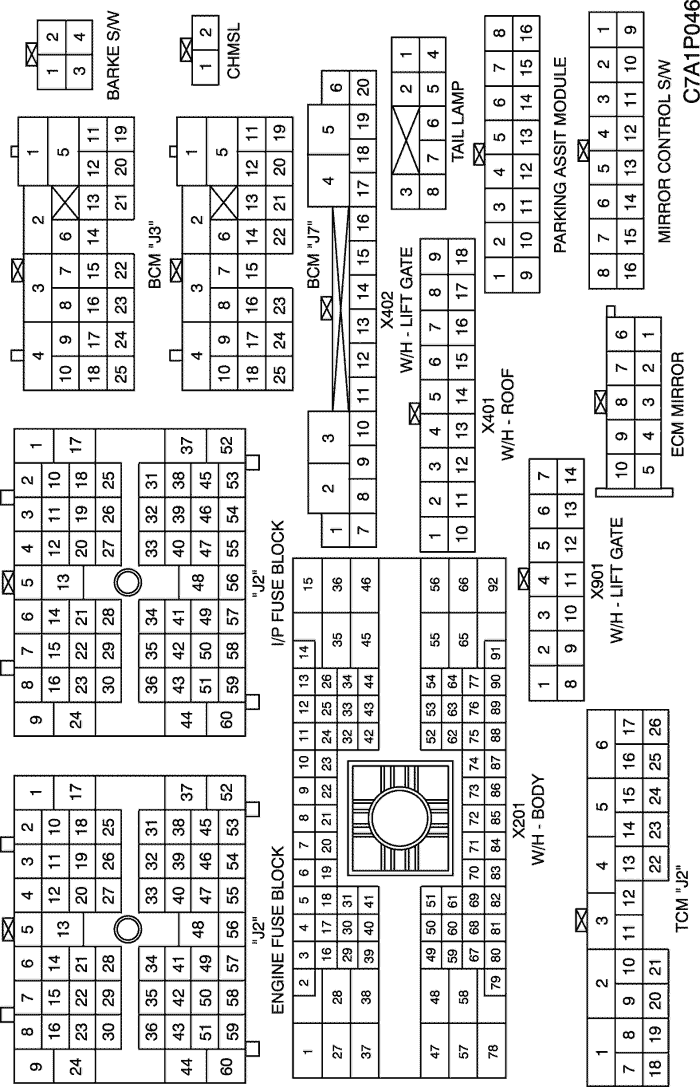

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H BODY

Display graphicTranslations of text in graphics


W/H ROOF

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX303 (BLACK/BROWN)

Display graphicTranslations of text in graphics


JX305 (BLACK)

Display graphicTranslations of text in graphics
