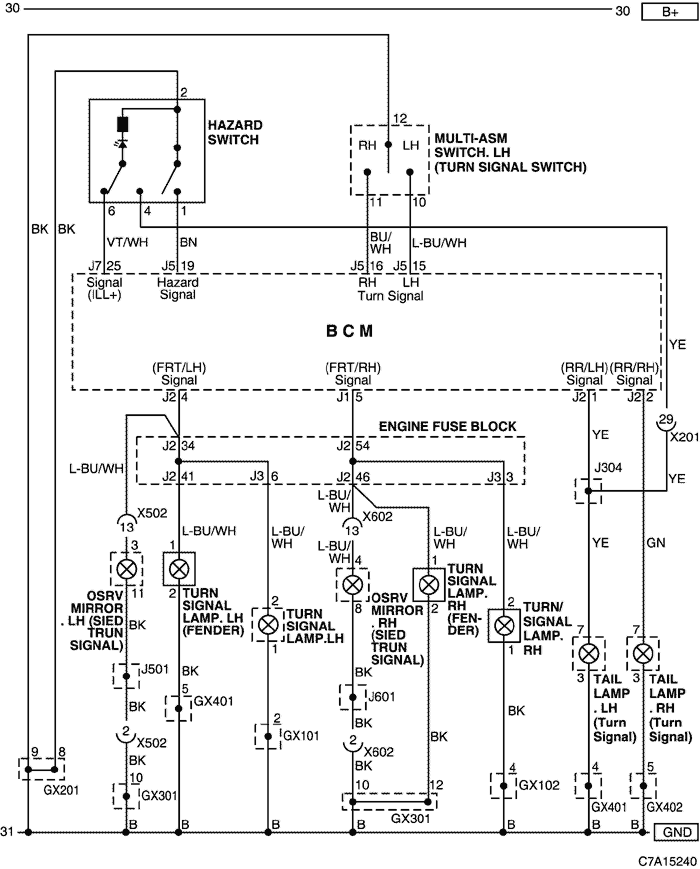

16. HAZARD & TURN SIGNAL LAMP CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
X502 (18 Pin, Colorless)Body - Front LH DoorUnder the left "A" Pillar
X602 (18 Pin, Colorless)Body - Front RH DoorUnder the right "A" Pillar
GX101 (Black/Gray)FrontBehind the left HeadLamp
GX102 (Black/Gray)FrontBehind the right HeadLamp
GX201 (Black/Gray)I/PBehind Steering Column - Lower
GX301 (Black/Gray)BodyUnder the right seat cushion
GX401 (Black/Gray)BodyRight the luggage compartment
GX402 (Black/Gray)BodyRight the luggage compartment

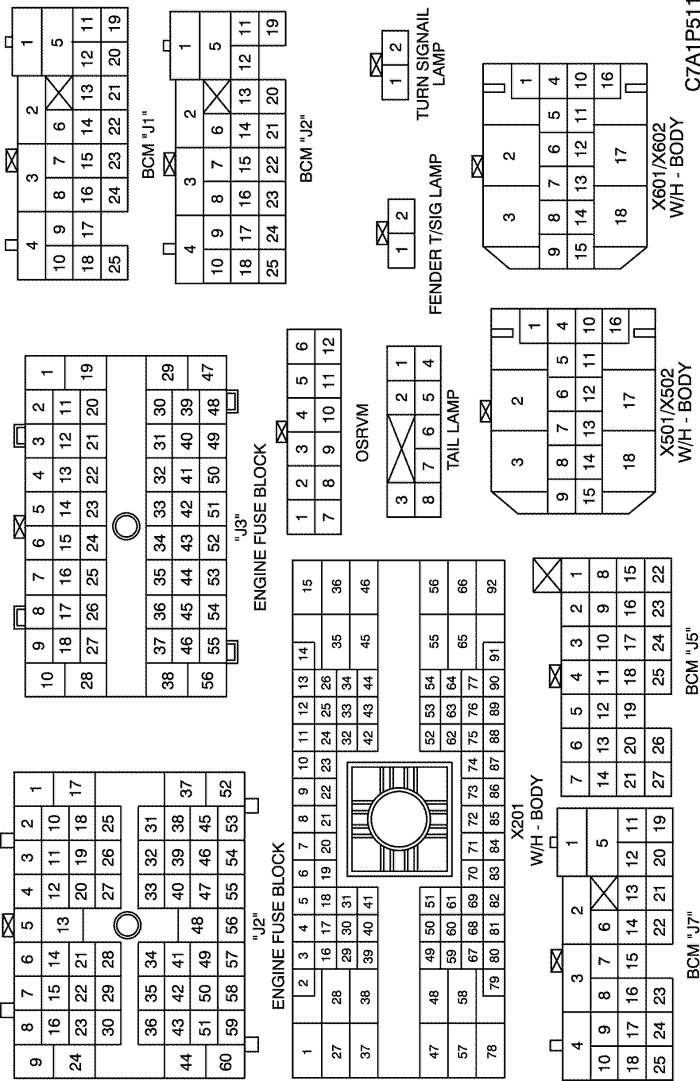

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H BODY

Display graphicTranslations of text in graphics


W/H FRONT

Display graphicTranslations of text in graphics


W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics
