12. HEAD LAMP CIRCUIT

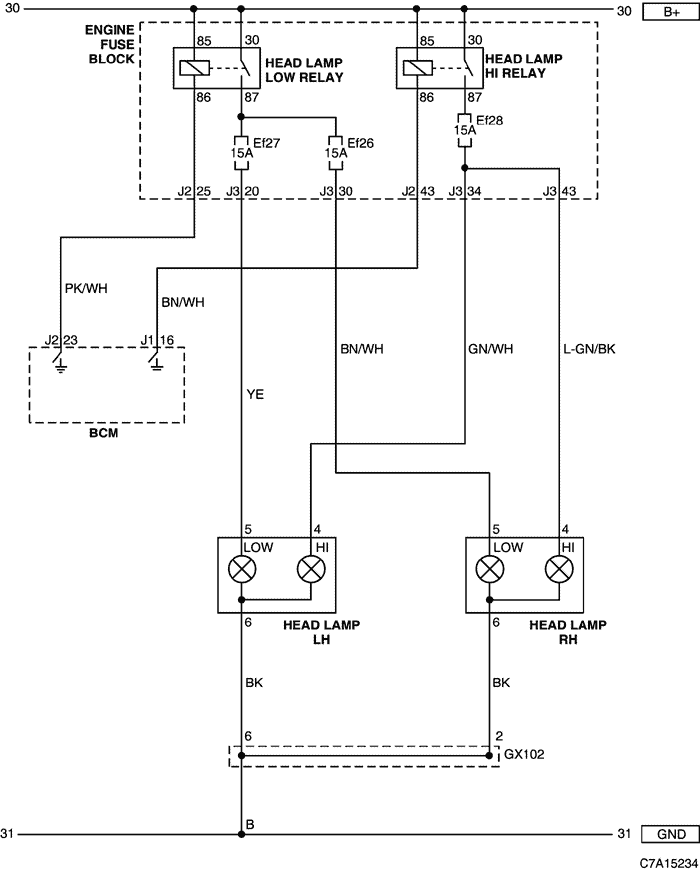

1) W/O HEAD LAMP LEVELING
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| GX102 (Black/Gray) | Front | Behind the right HeadLamp |

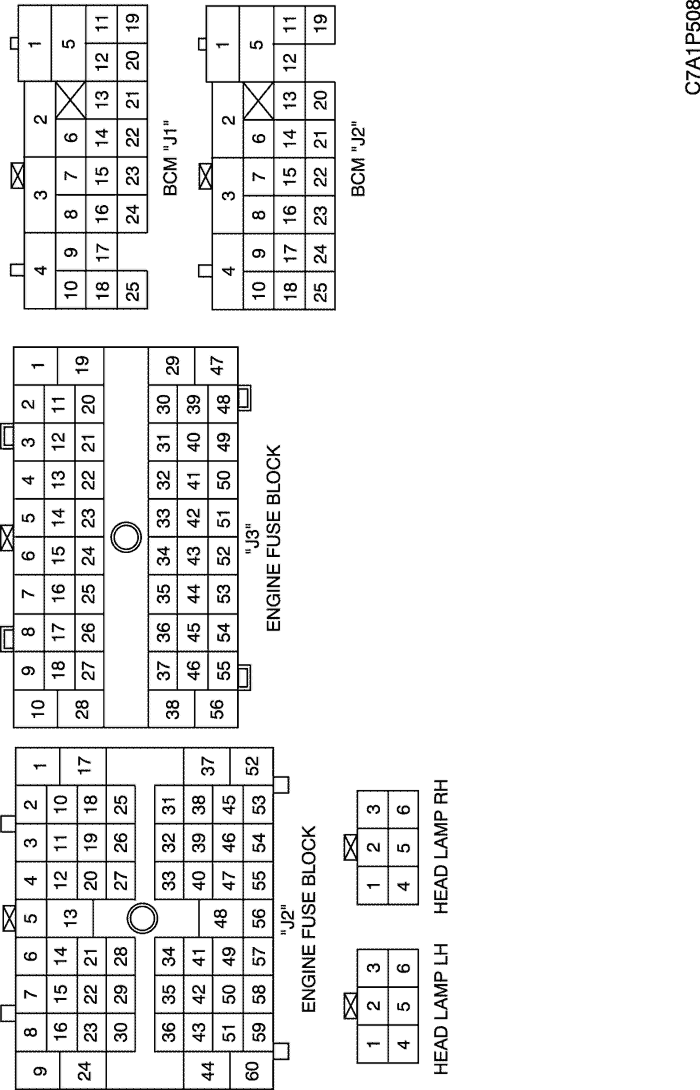

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H BODY
W/H FRONT

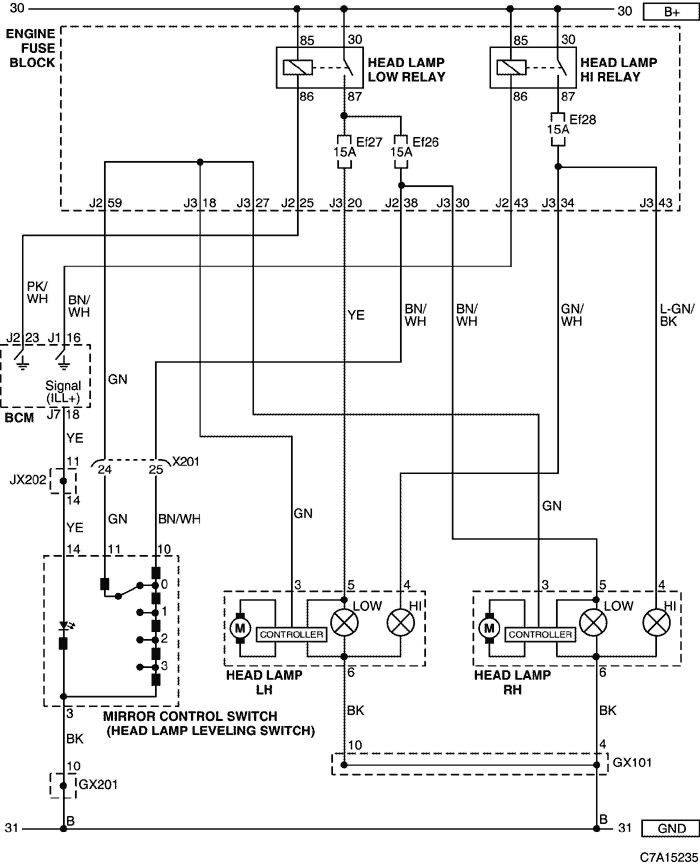

2) W/ HEAD LAMP LEVELING
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| X201 (92 Pin, Black) | Body - I.P | Below to the "A" pillar |
| GX102 (Black/Gray) | Front | Behind the right HeadLamp |
| GX201 (Black/Gray) | I/P | Behind Steering Column - Lower |

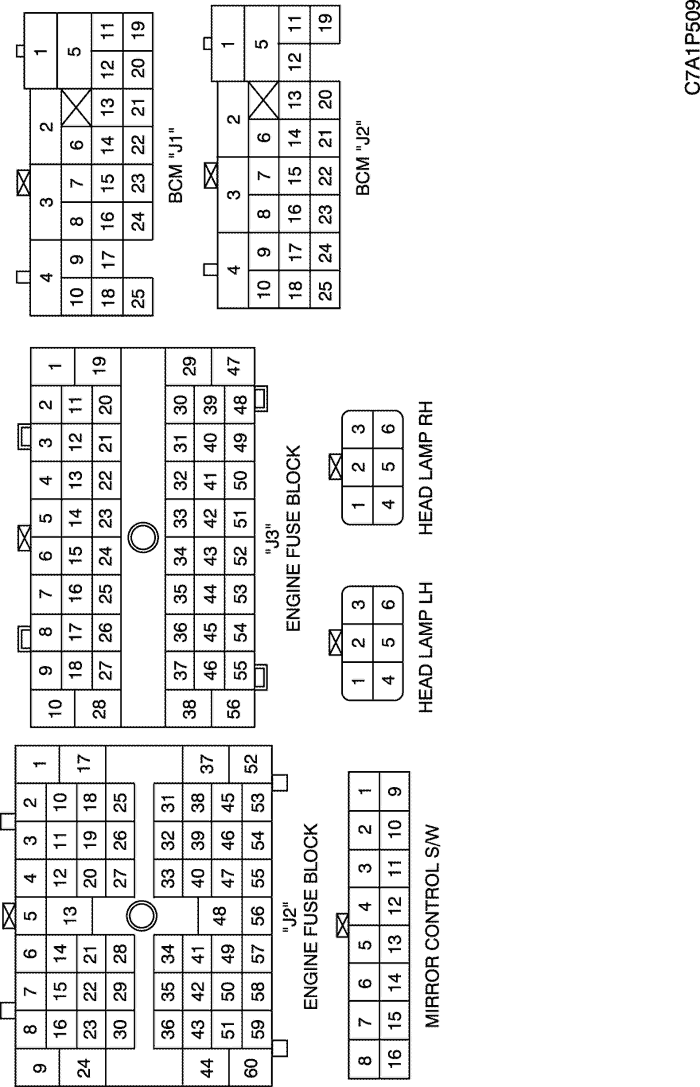

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
W/H BODY
W/H FRONT
d. SPLICE PACK
JX202 (BLACK/PINK)
