Cruze |
||||||||
|
|
|
|||||||

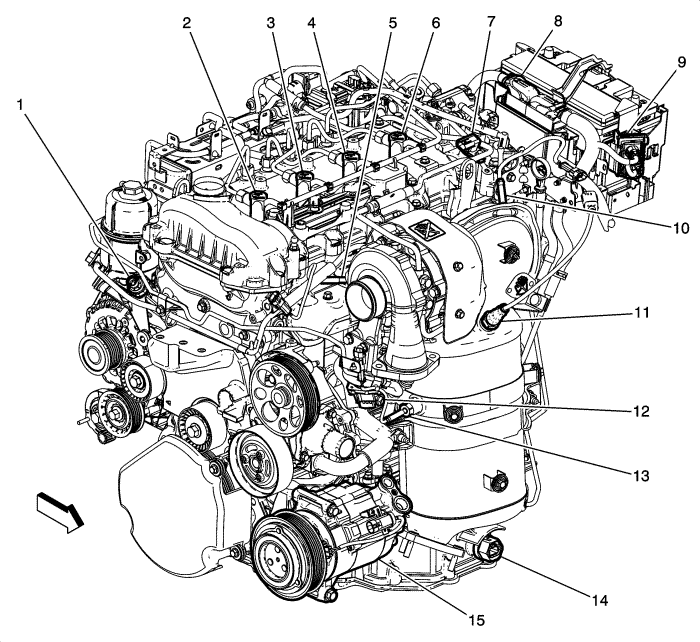

| (1) | B37 Engine Oil Pressure Switch |
| (2) | Q17A Fuel Injector 1 |
| (3) | Q17B Fuel Injector 2 |
| (4) | Q17C Fuel Injector 3 |
| (5) | B131B Exhaust Temperature Sensor 2 |
| (6) | Q17D Fuel Injector 4 |
| (7) | B23 Camshaft Position Sensor |
| (8) | K20 Engine Control Module |
| (9) | K34 Glow Plug Control Module |
| (10) | B131A Exhaust Temperature Sensor 1 |
| (11) | B52 Heated Oxygen Sensor |
| (12) | B112 Turbocharger Vane Position Sensor |
| (13) | B131C Exhaust Temperature Sensor 3 |
| (14) | B35 Engine Oil Level Switch |
| (15) | Q2 A/C Compressor Clutch |
