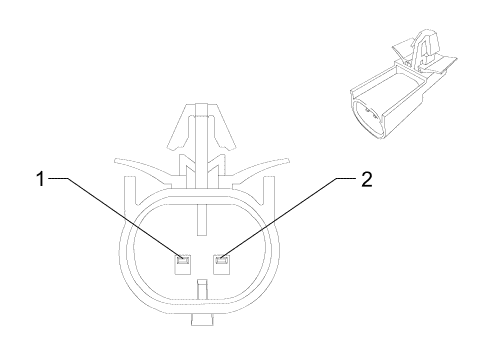

Connector Part Information

• Harness Type: Engine Cooling
• OEM Connector: 0-1897212-1
• Service Connector: Service by Harness - See Part Catalog
• Description: 2-Way F 1.5 MCP Series, Sealed (BK)

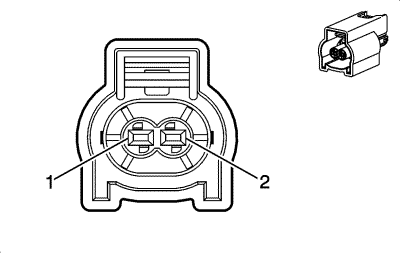

Connector Part Information

• Harness Type: Forward Lamp
• OEM: 1897211
• Service: Pending
• Description: 2-Way M (BK)

Terminal Part Information

• Terminated Lead: Service by Harness - See Part Catalog
• Release Tool: 12094430
• Diagnostic Test Probe: J-35616-42 (RD)

Terminal Part Information

• Terminated Lead: 13575773
• Release Tool: J-38125-560
• Diagnostic Test Probe: J-35616-14 (GN)

1

0.5 VT/GN

839

Run/Crank Ignition 1 Voltage

1

0.5 VT/GN

839

Run/Crank Ignition 1 Voltage

2

0.5 RD/GY

1042

Battery Positive Voltage

2

0.5 RD/GY

1042

Battery Positive Voltage
