Cruze |
||||||||
|
|
|
|||||||

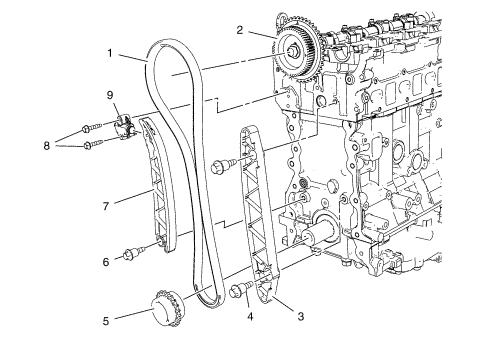

| (1) | Camshaft Timing Chain |
| (2) | Camshaft Sprocket |
| (3) | Timing Chain Guide |
| (4) | Timing Chain Guide Bolts |
| (5) | Crankshaft Sprocket |
| (6) | Timing Chain Damper Bolt |
| (7) | Timing Chain Damper |
| (8) | Timing Chain Tensioner Bolts |
| (9) | Timing Chain Tensioner |
