Cruze |
||||||||
|
|
|
|||||||

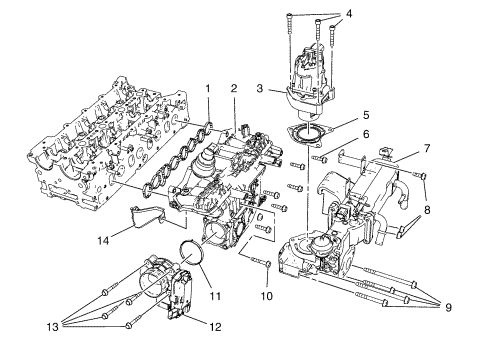

| (1) | Inlet Manifold Gasket |
| (2) | Inlet Manifold |
| (3) | EGR - Valve |
| (4) | EGR - Valve Bolt |
| (5) | EGR - Valve Gasket |
| (6) | Inlet Manifold Bolt |
| (7) | EGR - Cooler |
| (8) | EGR - Cooler Bolt / Nuts |
| (9) | EGR - Cooler Bolts |
| (10) | Inlet Manifold Bracket Bolt |
| (11) | Throttle Body Seal |
| (12) | Throttle Body |
| (13) | Throttle Body Bolts |
| (14) | Inlet Manifold Bracket |
