Cruze |
||||||||
|
|
|
|||||||

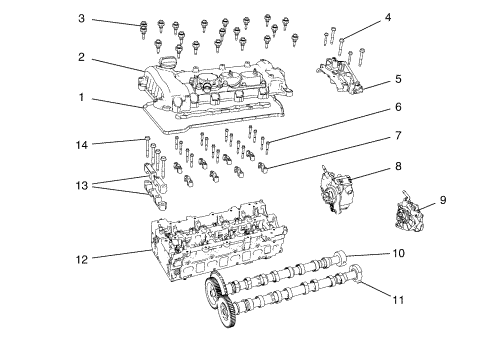

| (1) | Camshaft Cover Gasket |
| (2) | Camshaft Cover |
| (3) | Camshaft Cover Bolts |
| (4) | Camshaft Cover - Rear Bolts |
| (5) | Camshaft Cover - Rear |
| (6) | Camshaft Cap Seat Guide Bolts |
| (7) | Camshaft Cap Seat Guide |
| (8) | Fuel Injection Pump |
| (9) | Vacuum Pump |
| (10) | Intake Camshaft |
| (11) | Exhaust Camshaft |
| (12) | Cylinder Head |
| (13) | Camshaft Cap Seat Guide |
| (14) | Camshaft Cap Seat Guide Bolts |
