Cruze |
||||||||
|
|
|
|||||||

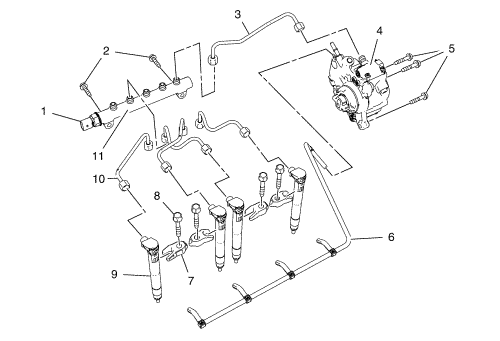

| (1) | Fuel Rail Pressure Sensor |
| (2) | Fuel Rail Bolts |
| (3) | Fuel Feed Pipe - Fuel Injection Pump to Fuel Rail |
| (4) | Fuel Injection Pump |
| (5) | Fuel Injection Pump Bolts |
| (6) | Fuel Return Hose |
| (7) | Fuel Injector Bracket |
| (8) | Fuel Rail Bolt |
| (9) | Fuel Injector |
| (10) | Fuel Feed Pipe - Fuel Rail to Fuel Injector |
| (11) | Fuel Rail |
