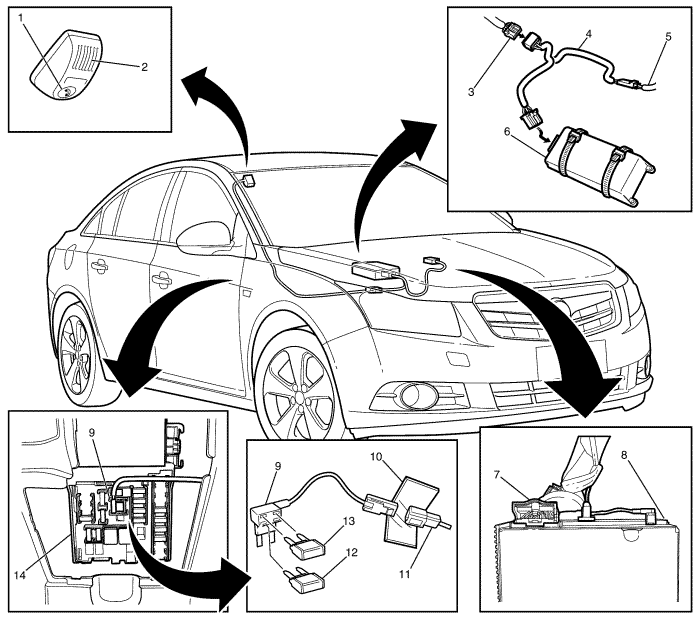

Cruze |
||||||||
|
|
|
|||||||
| (1) | Bluetooth Switch |
| (2) | B24 Cellular Phone Microphone |
| (3) | X220 |
| (4) | Bluetooth Break-out harness |
| (5) | X221 |
| (6) | K82 Mobile Telephone Control Module |
| (7) | A11 Radio X1 Connector |
| (8) | A11 Radio |
| (9) | X55F Fuse Holder - Mobile Telephone |
| (10) | Foam Tape |
| (11) | Bluetooth Break-out Harness Connector |
| (12) | F6DA Fuse |
| (13) | F1 Fuse |
| (14) | X51A Fuse Block - Instrument Panel |
