Cruze |
||||||||
|
|
|
|||||||

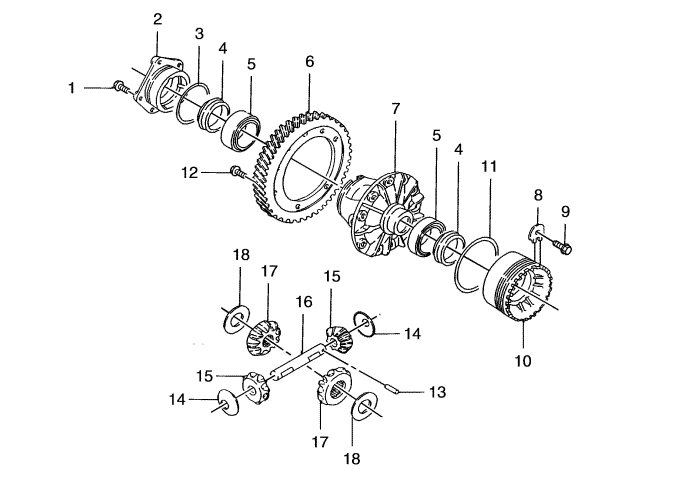

| (1) | Bolt |
| (2) | Differential Gear Bearing Flange |
| (3) | O-Ring |
| (4) | Shaft Seal Ring |
| (5) | Taper Roller Bearing |
| (6) | Differential Gear |
| (7) | Differential Gear Housing |
| (8) | Locking Plate |
| (9) | Bolt |
| (10) | Differential Bearing Ring |
| (11) | O-Ring |
| (12) | Bolt |
| (13) | Differential Spring Pin |
| (14) | Bevel Gear Disc |
| (15) | Bevel Differential Gear |
| (16) | Differential Gear Shaft |
| (17) | Side Gear |
| (18) | Washer |
