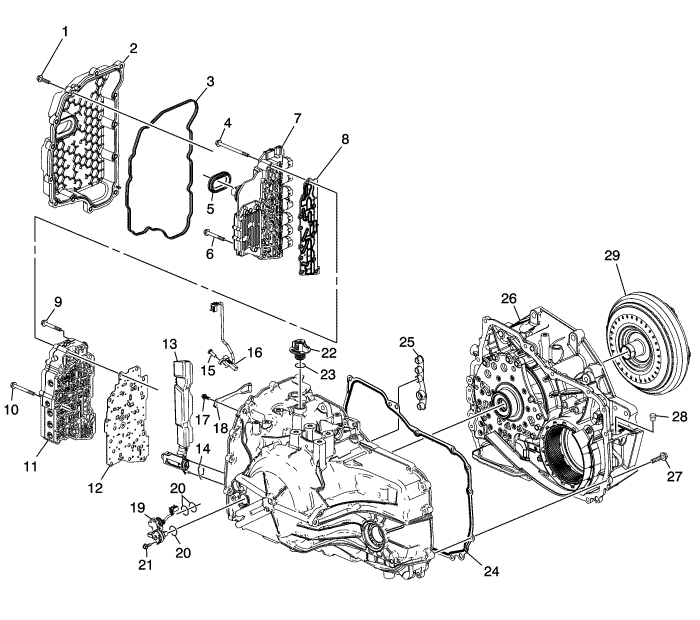

| (1) | Control Valve Body Cover Bolt |
| (2) | Control Valve Body Cover Assembly |
| (3) | Control Valve Body Cover Gasket |
| (4) | Control Valve Body Bolt |
| (5) | Control Valve Body Cover Hole Seal |
| (6) | Control Solenoid Valve Heat Sink Bolt |
| (7) | Control Solenoid (w/Body and TCM) Valve Assembly |
| (8) | Control Valve Body Filter Plate Assembly |
| (9) | Control Valve Body Bolt |
| (10) | Control Valve Body Bolt |
| (11) | Control Valve Body Assembly |
| (12) | Control Valve Body Spacer Plate Assembly |
| (13) | A/Trans Fluid Level Control Valve |
| (14) | A/Trans Fluid Level Control Valve Gasket |
| (15) | A/Trans Output Speed Sensor Bolt |
| (16) | A/Trans Output Speed Sensor Assembly |
| (17) | Manual Shaft Detent Spring Bolt |
| (18) | Manual Shaft Detent Lever Spring Assembly |
| (19) | A/Trans Input Speed Sensor Assembly |
| (20) | A/Trans Input Speed Sensor Assembly O-Ring Seal |
| (21) | A/Trans Input Speed Sensor Bolt |
| (22) | Fill Cap |
| (23) | Fill Cap Seal |
| (24) | Torque Converter Housing Gasket |
| (25) | A/Trans Fluid Pump Seal Assembly |
| (26) | Torque Converter with Fluid Pump Housing Assembly |
| (27) | Torque Converter and Differential Housing Bolt |
| (28) | A/Trans Fluid Fill Tube Plug Assembly |
| (29) | Torque Converter Assembly |
