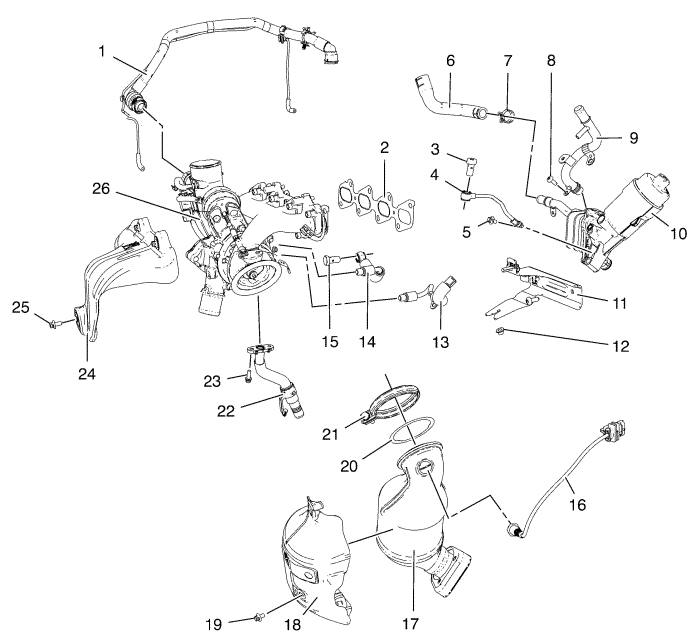

| (1) | Positive Crankcase Ventilation Pipe Assembly |
| (2) | Exhaust Manifold Gasket |
| (3) | Turbo Charger Oil Feed Pipe Hollow Screw |
| (4) | Turbo Charger Oil Feed Pipe |
| (5) | Turbo Charger Oil Feed Pipe Bolt |
| (6) | Oil Cooler Coolant Outlet Hose |
| (7) | Oil Cooler Coolant Outlet Hose Clamp |
| (8) | Oil Cooler Coolant Feed Pipe Bolt |
| (9) | Oil Cooler Coolant Feed Pipe |
| (10) | Engine Oil Cooler Assembly |
| (11) | Catalytic Converter Bracket |
| (12) | Catalytic Converter to Catalytic Converter Bracket Nut |
| (13) | Turbocharger Coolant Return Pipe |
| (14) | Turbocharger Coolant Feed Pipe |
| (15) | Turbocharger Coolant Feed Pipe Hollow Screw |
| (16) | Heated Oxygen Sensor 1 |
| (17) | Catalytic Converter |
| (18) | Catalytic Converter Heat Shield |
| (19) | Catalytic Converter Heat Shield Bolt |
| (20) | Catalytic Converter Seal |
| (21) | Catalytic Converter V-Clamp |
| (22) | Turbocharger Oil Return Pipe |
| (23) | Turbocharger Oil Return Pipe Bolt |
| (24) | Exhaust Manifold Heat Shield |
| (25) | Exhaust Manifold Heat Shield Bolt |
| (26) | Turbocharger (with Exhaust Manifold) |
