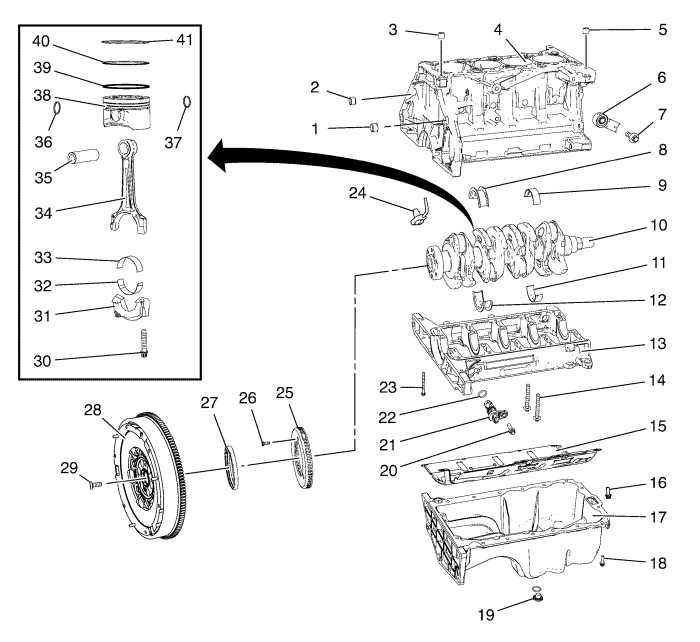

| (1) | Transmission Guide Sleeve |
| (2) | Transmission Guide Sleeve |
| (3) | Cylinder Head Guide Sleeve |
| (4) | Cylinder Head |
| (5) | Cylinder Head Guide Sleeve |
| (6) | Knock Sensor |
| (7) | Knock Sensor Bolt |
| (8) | Upper Crankshaft Thrust Bearing |
| (9) | Upper Crankshaft Bearing |
| (10) | Crankshaft |
| (11) | Lower Crankshaft Bearing |
| (12) | Lower Crankshaft Thrust Bearing |
| (13) | Crankshaft Bearing Cap Tie Plate |
| (14) | Crankshaft Bearing Cap Tie Plate Bolt (M10) |
| (15) | Oil Pan Baffle |
| (16) | Sump Baffle Bolt |
| (17) | Sump |
| (18) | Sump Bolt |
| (19) | Sump Drain Plug |
| (20) | Crankshaft Position Sensor Bolt |
| (21) | Crankshaft Position Sensor |
| (22) | Crankshaft Position Sensor Seal Ring |
| (23) | Crankshaft Bearing Cap Tie Plate Bolt (M8) |
| (24) | Piston Oil Nozzle |
| (25) | Crankshaft Position Sensor Reluctor Ring |
| (26) | Crankshaft Position Sensor Reluctor Ring Bolt |
| (27) | Crankshaft Rear Oil Seal |
| (28) | Engine Flywheel (Two-Mass) |
| (29) | Engine Flywheel Bolt |
| (30) | Big end bearing Cap Bolt |
| (31) | Big end bearing Cap |
| (32) | Lower Connecting Rod Bearing |
| (33) | Upper Connecting Rod Bearing |
| (34) | Connecting Rod |
| (35) | Gudgeon pin |
| (36) | Gudgeon pin Retainer |
| (37) | Gudgeon pin Retainer |
| (38) | Piston |
| (39) | Piston Oil Ring (With Oil Ring Spacer) |
| (40) | Lower Compression Ring |
| (41) | Upper Compression Ring |
